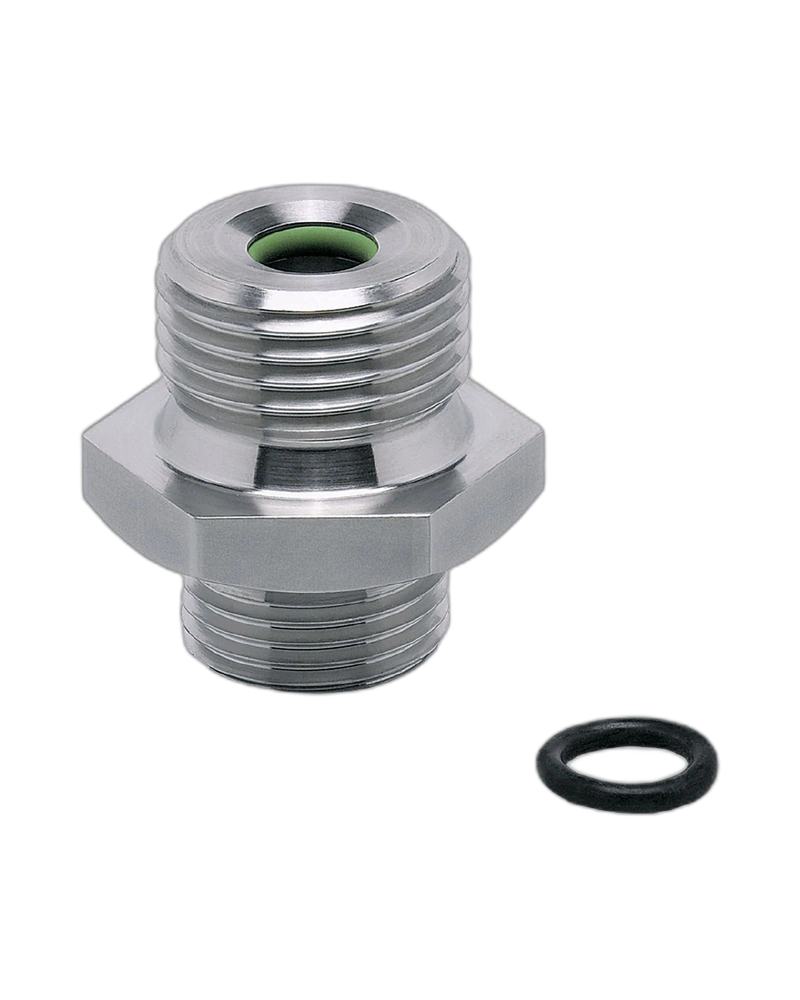

The IFM E30073 Screw-in Adapter is designed to connect process sensors with an M18 × 1.5 interface to a G1/2 process connection. It is manufactured from stainless steel 316L / 1.4404 and includes a fitted FKM O-ring. The adapter supports pressure ratings up to 100 bar. Its reduced dead-space design makes it suitable for demanding industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30073 provides an effective interface between M18 × 1.5 sensor connections and G1/2 process connections. This makes it useful when a compatible process system requires a different connection format. The screw-in design supports secure mechanical installation. It simplifies the integration of suitable process sensors.
The adapter is manufactured from stainless steel 316L / 1.4404. This provides robust mechanical performance for industrial environments. A fitted FKM O-ring provides additional sealing support. The durable construction makes it suitable for a wide range of liquid and gas applications.
The E30073 is designed with reduced dead space around the process connection. This helps make the adapter suitable for applications where minimizing retained process media is beneficial. The compact connection arrangement supports practical process sensor installation. It is particularly useful for demanding industrial instrumentation.
The adapter is rated up to 100 bar for suitable industrial applications. Its threaded connections provide a secure mechanical interface between the sensor and process system. The supplied O-ring assists with sealing. Correct media compatibility and installation conditions should be confirmed for each application.
M18 × 1.5 sensor connection
G1/2 process connection
Stainless steel 316L construction
Fitted FKM O-ring
Reduced dead-space design
Pressure rating up to 100 bar
Suitable for liquids and gases
Pack quantity of 1 piece
Industrial process sensors
Pressure monitoring systems
Liquid and gas applications
Process instrumentation
Machine automation
Industrial fluid monitoring systems
| Specification | Details |
|---|---|
| Product Code | E30073 |
| Product Type | Screw-in Adapter for Process Sensors |
| Model / Designation | ADAPT TN/G1/2/VA |
| Sensor Connection | M18 × 1.5 internal thread |
| Process Connection | G1/2 |
| Pressure Rating | 100 bar |
| Material | Stainless steel 316L / 1.4404 |
| Fitted Seal | FKM |
| Included O-Ring | EPDM |
| Weight | 61.5 g |
| Special Feature | Reduced dead space |
| Pack Quantity | 1 piece |
| Brand | IFM |
