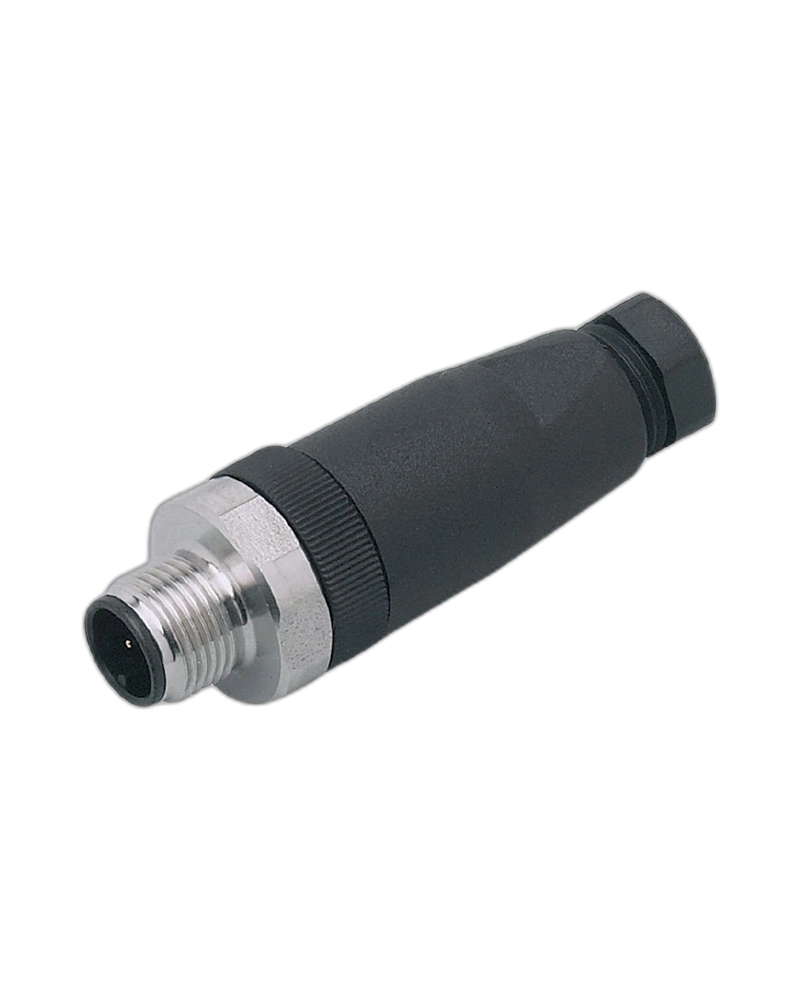

The IFM E30019 is a straight, wireable M12 connector designed for reliable industrial sensor and automation connections. It features a 4-pin male configuration, screw termination and gold-plated contacts. The connector supports operating voltages from 10 to 55 V DC and a current rating of up to 4 A. Its IP67 protection and stainless-steel nut make it suitable for demanding industrial connection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30019 provides a practical M12 connection solution for compatible industrial sensors and automation devices. Its 4-pin male configuration supports suitable electrical connection requirements. The straight connector design makes cable routing convenient in many installations. Screw termination allows the connector to be wired according to the application requirements. Gold-plated contacts support reliable electrical connectivity. The threaded locking arrangement helps provide a secure connection to compatible devices.
The connector features a PA body with a stainless-steel 316Ti / 1.4571 nut. This construction provides a combination of lightweight housing and durable locking hardware. Its IP67 protection rating supports use in suitable industrial environments where protection against dust and water ingress is required. The connector is designed for cable mounting with a suitable cable diameter. Its compact construction supports integration into industrial control panels and machinery. Proper cable preparation and wiring should be followed during installation.
The E30019 operates with DC voltage from 10 to 55 V and supports a current rating of up to 4 A at the specified conditions. It accepts wire cross-sections up to 0.75 mm² and cable diameters from 4 to 6 mm. The A-coded M12 design is suitable for compatible DeviceNet and CANopen-related connection configurations. The straight orientation provides a practical connection arrangement. The connector can be used for sensors, control devices and industrial automation equipment. Electrical ratings and connector compatibility should always be verified before commissioning.
M12 male connector
4-pin configuration
Straight connector design
Wireable screw termination
Gold-plated contacts
10–55 V DC operating voltage
4 A current rating
IP67 protection
Stainless steel 316Ti / 1.4571 nut
Cable diameter 4–6 mm
Wire cross-section up to 0.75 mm²
Industrial sensor connections
Automation equipment
Process sensors
Machine control systems
DeviceNet-compatible installations
CANopen-related connection systems
Industrial control panels
Factory automation equipment
| Specification | Details |
|---|---|
| Product Code | E30019 |
| Product Type | Wirable Plug |
| Part Number | SSTGH040VASFPKG |
| Brand | IFM |
| Connector Type | M12 |
| Connector Design | Male |
| Number of Pins | 4 |
| Orientation | Straight |
| Electrical Design | DC |
| Operating Voltage | 10–55 V DC |
| Current Rating | 4 A |
| Contact Material | Gold-plated contacts |
| Protection Rating | IP67 |
| Locking System | Threaded joint |
| Wiring Type | Wireable / screw termination |
| Wire Cross-section | Up to 0.75 mm² |
| Cable Diameter | 4–6 mm |
| Housing Material | PA |
| Nut Material | Stainless steel 316Ti / 1.4571 |
| Polarisation | A-coded |
| Suitable Connection | DeviceNet / CANopen-compatible applications |
| Weight | Approximately 23 g |
| Installation | Cable mounting |
| Application | Industrial automation and sensor connections |
