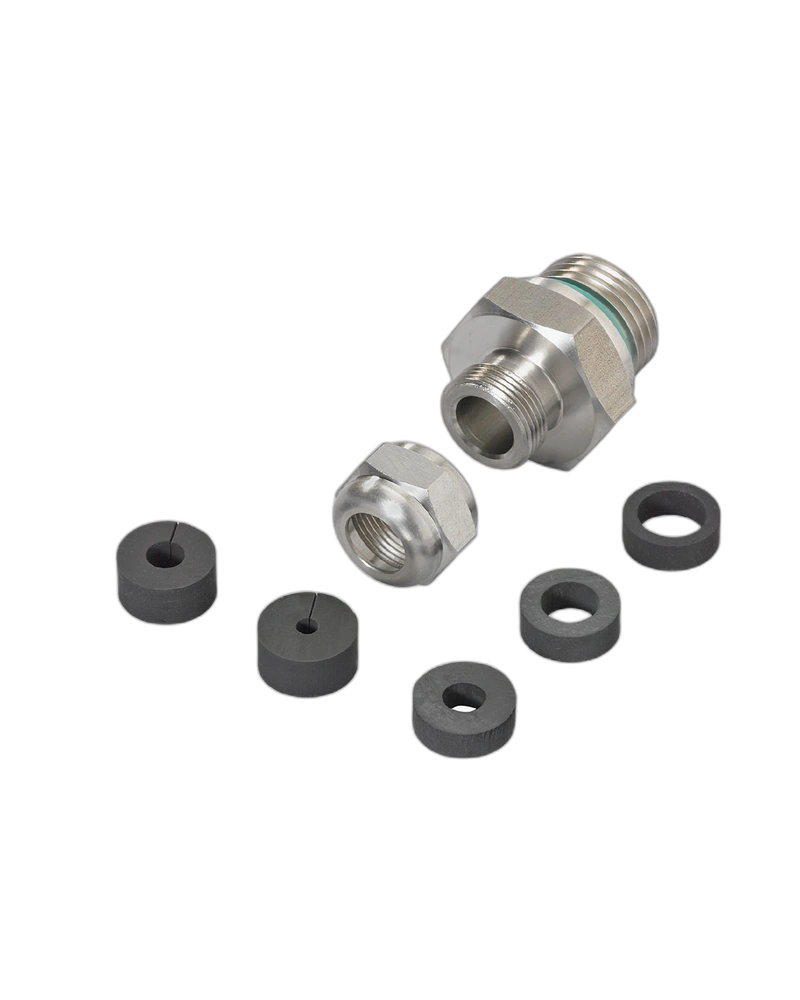

The IFM E30018 is a clamp fitting designed for process sensor installation and industrial temperature sensor applications. It provides a G 1/2 threaded process connection and supports compatible sensor diameters of 6 mm, 8 mm and 10 mm. The fitting is manufactured from stainless steel 303 / 1.4305 with FKM sealing. It is designed for liquid and gaseous media applications with a pressure rating of 1 bar.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30018 clamp fitting provides a practical mounting solution for compatible process sensors. It supports sensor connections for 6 mm, 8 mm and 10 mm sensor diameters. This makes the fitting useful for different compatible temperature sensor configurations. The G 1/2 process connection enables installation into suitable process equipment. Its clamp-style design provides a convenient mechanical connection. Proper sensor and process connection compatibility should be verified before installation.
The fitting is manufactured from stainless steel 303 / 1.4305 for robust industrial performance. FKM sealing is provided to support reliable sealing at the connection point. The material combination is suitable for compatible liquid and gaseous media applications. Its stainless-steel construction provides mechanical durability during installation and operation. The sealing arrangement helps support a dependable process connection. Medium and material compatibility should be checked for each application.
The E30018 has a pressure rating of up to 1 bar or 0.1 MPa. It is intended for suitable process installations operating within this pressure limit. The G 1/2 threaded connection supports convenient installation into compatible process systems. The fitting weighs approximately 87.3 g and is supplied with sealing components. Its compact design makes it practical for sensor mounting in industrial applications. Correct tightening and installation procedures are important for reliable performance.
G 1/2 threaded process connection
Supports Ø6 mm sensor connection
Supports Ø8 mm sensor connection
Supports Ø10 mm sensor connection
Stainless steel 303 / 1.4305
FKM sealing material
Pressure rating up to 1 bar
Weight approximately 87.3 g
Pack quantity of 1 piece
Temperature sensor installation
Process sensor mounting
Liquid media applications
Gaseous media applications
Industrial process monitoring
Process piping systems
Industrial automation equipment
| Specification | Details |
|---|---|
| Product Code | E30018 |
| Product Type | Clamp Fitting |
| Product Name | CLAMP FITTING G1/2 |
| Brand | IFM |
| Process Connection | G 1/2 threaded |
| Sensor Connection | Ø6 mm / Ø8 mm / Ø10 mm |
| Pressure Rating | 1 bar / 0.1 MPa |
| Suitable Media | Liquid and gaseous media |
| Material | Stainless steel 303 / 1.4305 |
| Sealing Material | FKM |
| Weight | 87.3 g |
| Connection Type | Threaded |
| Installation | Clamp / sensor mounting |
| Pack Quantity | 1 piece |
| Application | Process and temperature sensors |
| Compatibility | Verify sensor, medium and process requirements |
