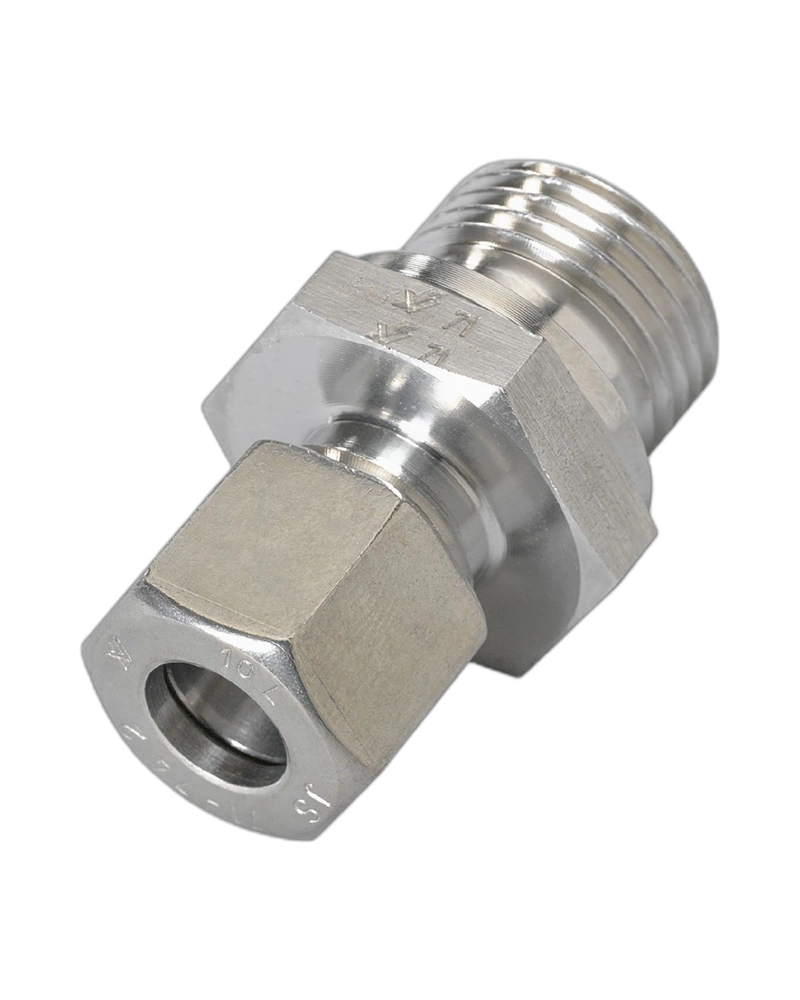

The IFM E30016 is a progressive ring fitting designed for reliable mounting of compatible temperature sensors. It provides a G 1/2 process connection and a 10 mm sensor connection. The fitting is manufactured from stainless steel 316Ti / 1.4571 and offers a pressure rating up to 50 bar. Its adjustable sensor depth design supports convenient installation in industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30016 provides a practical mounting solution for compatible temperature sensors. Its progressive ring fitting design allows convenient adjustment of the sensor immersion depth. This helps users position the sensor according to the requirements of the installation. The G 1/2 process connection supports integration into compatible process systems. The fitting is designed for simple and secure sensor mounting. Proper installation ensures stable positioning during operation.
The fitting is manufactured from stainless steel 316Ti / 1.4571. This material provides strong mechanical durability for industrial environments. The stainless-steel construction is suitable for demanding sensor mounting applications. Its robust design supports long-term use when installed within specified operating conditions. The 10 mm sensor connection provides compatibility with suitable sensor designs. Process-medium compatibility should always be checked before installation.
The E30016 has a pressure resistance of up to 50 bar or 5 MPa. This makes it suitable for compatible process applications requiring dependable temperature sensor installation. The progressive ring arrangement helps secure the sensor at the desired insertion depth. The G 1/2 process connection allows straightforward integration into suitable process piping. Its compact construction supports practical industrial installation. Proper sealing, tightening and installation procedures are recommended.
Progressive ring fitting design
G 1/2 process connection
10 mm sensor connection
Stainless steel 316Ti / 1.4571
Pressure rating up to 50 bar
Adjustable sensor immersion depth
Robust industrial construction
Pack quantity of 1 piece
Temperature sensor installation
Industrial process monitoring
Process piping systems
Fluid temperature measurement
Industrial automation systems
Machine monitoring
Process instrumentation
| Specification | Details |
|---|---|
| Product Code | E30016 |
| Product Type | Progressive Ring Fitting |
| Product Name | PROGRESSIVE RING FITTING |
| Brand | IFM |
| Sensor Connection | Ø 10 mm |
| Process Connection | G 1/2 |
| Pressure Resistance | 50 bar / 5 MPa |
| Material | Stainless steel 316Ti / 1.4571 |
| Connection Type | Threaded |
| Sensor Adjustment | Adjustable immersion depth |
| Weight | 91.8 g |
| Installation | Progressive ring fitting |
| Application | Temperature sensor mounting |
| Pack Quantity | 1 piece |
| Medium Compatibility | Application-specific verification required |
| Pressure Equipment Directive | Classification depends on application |
