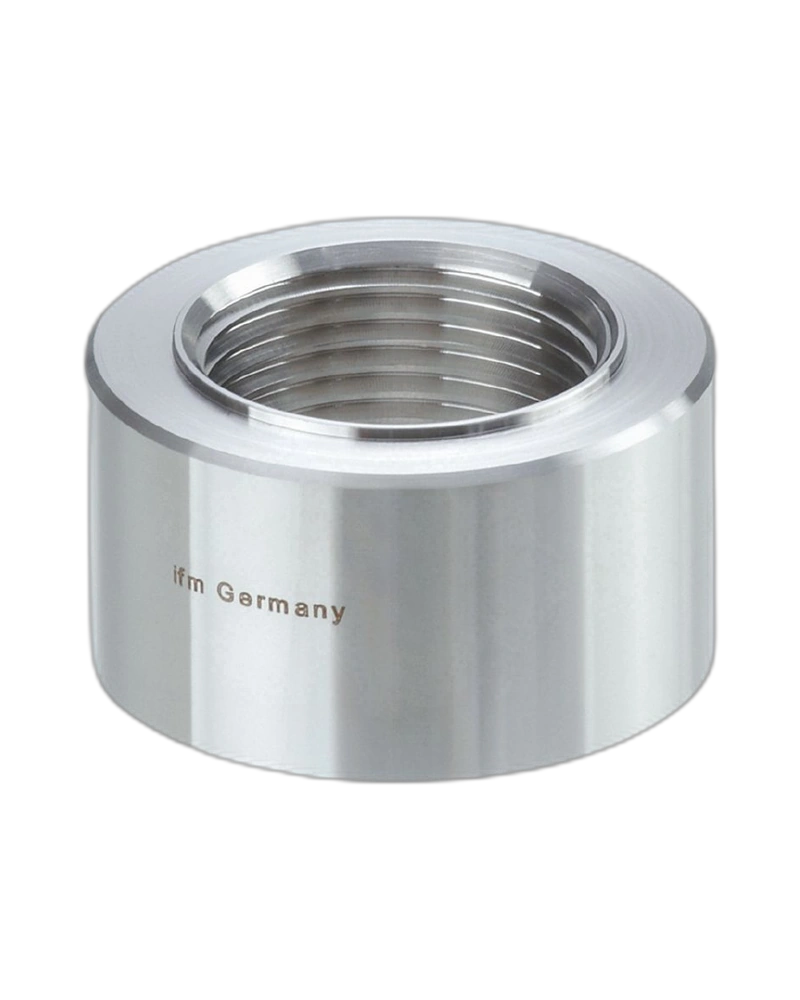

The IFM E30013 is a welding adapter designed for process sensor installation in industrial and hygienic applications. It features a G 1 internal thread and a 50 mm welding adapter design. The adapter is manufactured from stainless steel 316L / 1.4404 and supports pressure ratings up to 150 bar. Its hygienic construction is suitable for compatible process installations requiring a robust welded connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30013 provides a reliable mounting interface for compatible process sensors. Its welding adapter design enables permanent integration into suitable process equipment. The G 1 internal thread provides the sensor connection required for compatible installations. The sealing area and sealing edge support a suitable hygienic connection design. Its construction is intended for applications where cleanable and durable sensor mounting is important. It is particularly suitable for compatible food, beverage and hygienic process environments.
The adapter is manufactured from stainless steel 316L / 1.4404. The wetted-part material and surface characteristics are designed for demanding process applications. The surface specification includes Ra below 0.4 µm and Rz of 4 µm. This smooth surface design supports hygienic process requirements. The adapter provides strong mechanical performance for industrial installation. Material and process-medium compatibility should still be verified for every application.
The E30013 has a pressure rating of up to 150 bar or 15 MPa for the sensor-to-adapter connection. Its 50 mm welding adapter allows integration into compatible process equipment. The welded installation provides a stable connection when correctly installed. The design is suitable for applications requiring hygienic and reliable process sensor mounting. Proper welding procedures and installation practices are essential. The complete installation should be evaluated according to the operating conditions.
G 1 internal thread
50 mm welding adapter
Stainless steel 316L / 1.4404
Pressure rating up to 150 bar
Hygienic surface design
Ra < 0.4 µm
Rz = 4 µm
Weight approximately 300 g
Suitable for hygienic process applications
Pack quantity of 1 piece
Food processing equipment
Beverage processing systems
Hygienic process lines
Industrial process monitoring
Process sensor installation
Dairy processing equipment
Pharmaceutical-related process applications
| Specification | Details |
|---|---|
| Product Code | E30013 |
| Product Type | Welding Adapter |
| Product Name | WELDING ADAPT G1 V4A |
| Brand | IFM |
| Sensor Connection | G 1 internal thread |
| Adapter Type | Welding adapter |
| Welding Diameter | Ø 50 mm |
| Pressure Rating | 150 bar / 15 MPa |
| Material | Stainless steel 316L / 1.4404 |
| Wetted Material | Stainless steel 316L |
| Surface Roughness | Ra < 0.4 µm |
| Surface Characteristic | Rz = 4 µm |
| Weight | 300 g |
| Sealing Design | Sealing cone / sealing edge |
| Installation | Welding |
| Pack Quantity | 1 piece |
| Hygienic Suitability | Suitable for compatible hygienic applications |
