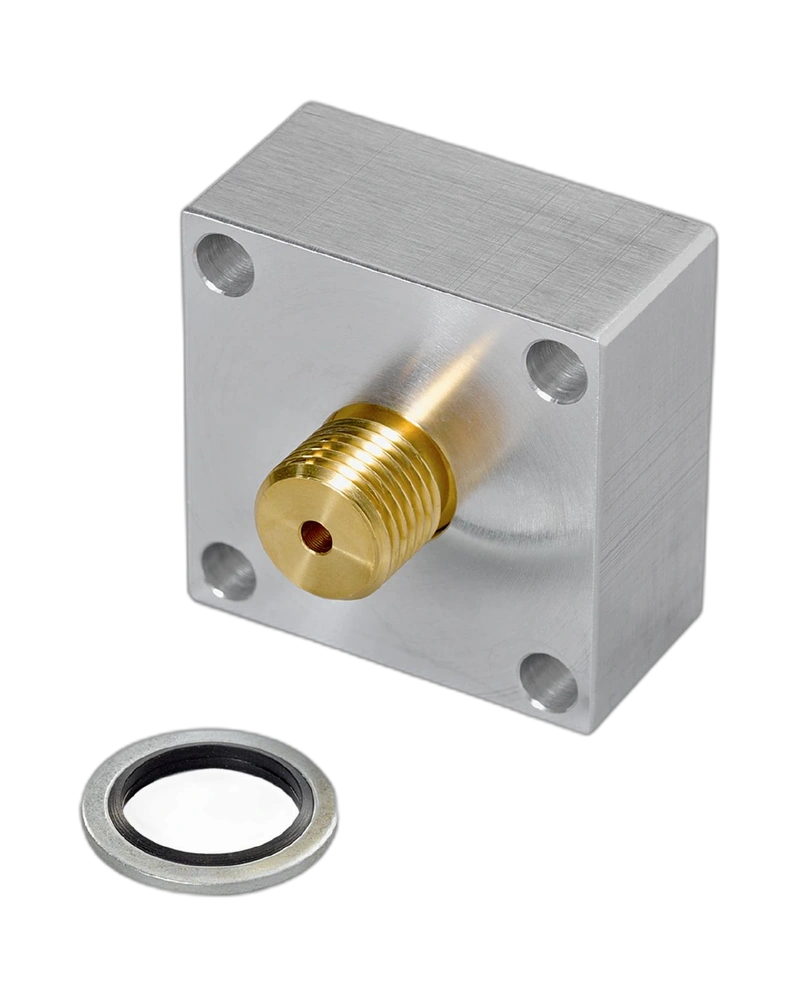

The IFM E30003 is a flange adapter designed for process sensor installation. It provides a G 1/4 sensor connection with a flange-style process connection. The adapter is rated for pressures up to 200 bar and combines an aluminium flange with a brass hollow screw and NBR sealing. Its practical design supports reliable sensor mounting in compatible industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30003 provides a convenient mounting solution for compatible process sensors requiring a flange connection. Its G 1/4 sensor connection supports suitable process sensor installations. The flange arrangement provides a stable mounting interface for industrial equipment. The adapter is designed to simplify sensor installation in appropriate process systems. Its compact construction allows convenient integration into existing equipment. Proper mounting and sealing procedures should be followed during installation.
The flange is manufactured from aluminium, while the hollow screw is made from brass. NBR sealing is used to support a dependable connection. These materials provide a practical combination for suitable industrial installations. The construction is designed for mechanical stability during sensor mounting. Its design helps maintain a secure connection when properly installed. Application-specific material compatibility should always be considered.
The E30003 has a pressure rating of up to 200 bar or 20 MPa. This provides suitability for a range of industrial process monitoring applications within the specified pressure limit. The flange connection enables the sensor to be mounted securely to compatible process equipment. Correct tightening and sealing are important for dependable operation. The adapter can be useful where a flange-style mounting arrangement is preferred. Always verify the complete installation against application requirements.
G 1/4 sensor connection
Flange process connection
Pressure rating up to 200 bar
Aluminium flange
Brass hollow screw
NBR sealing
Compact sensor mounting design
Pack quantity of 1 piece
Process sensor mounting
Industrial process monitoring
Pressure measurement systems
Fluid handling equipment
Process piping installations
Industrial automation systems
Sensor connection adaptation
| Specification | Details |
|---|---|
| Product Code | E30003 |
| Product Type | Flange Adapter |
| Product Name | FLSH ADAPT PX 31,1 |
| Brand | IFM |
| Sensor Connection | G 1/4 |
| Process Connection | Flange |
| Pressure Rating | 200 bar / 20 MPa |
| Flange Material | Aluminium |
| Hollow Screw Material | Brass |
| Sealing Material | NBR |
| Weight | 119 g |
| Connection Type | Flange |
| Installation | Process sensor mounting |
| Pack Quantity | 1 piece |
| Application | Process sensors |
| Compatibility | Verify according to sensor and process requirements |
