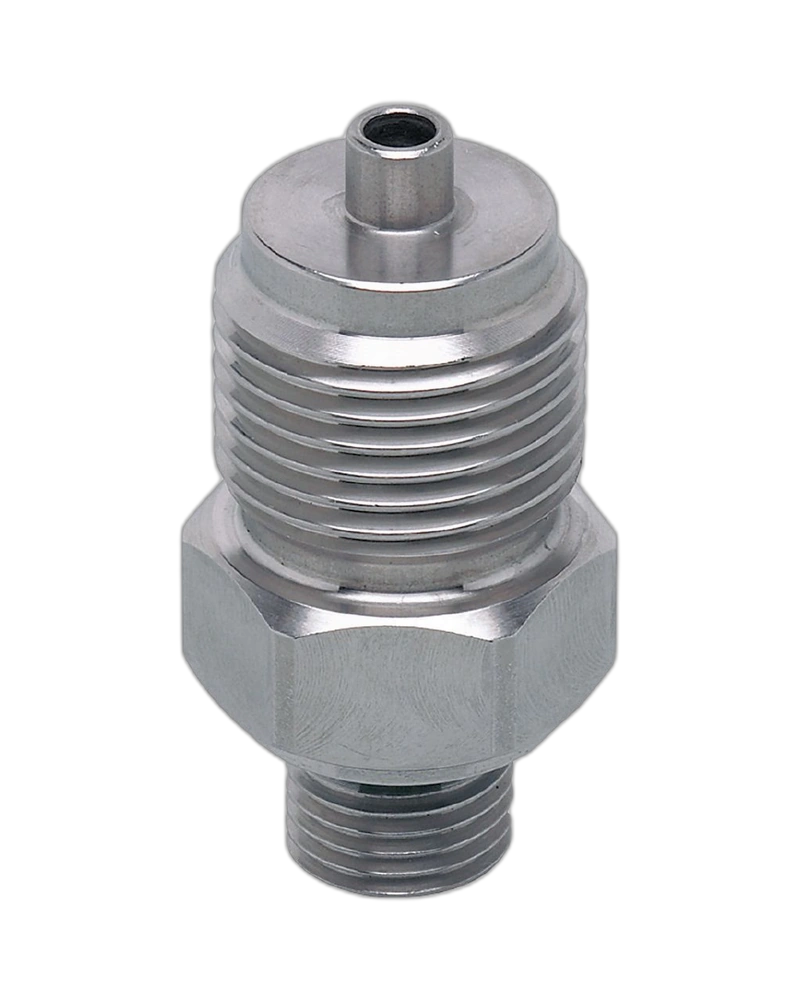

The IFM E30000 is a stainless-steel screw-in adapter designed for connecting process sensors with different thread sizes. It provides a G 1/4 sensor connection and G 1/2 process connection for secure installation. The adapter supports pressure applications up to 200 bar and offers reliable sealing with FKM material. Its compact construction enables simple installation in industrial process systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30000 screw-in adapter provides a practical connection between compatible process sensors and process piping. Its G 1/4 sensor connection and G 1/2 process connection allow convenient integration into suitable installations. The threaded design helps create a stable mechanical connection during sensor mounting. It is suitable for industrial environments where dependable sensor installation is important. The stainless-steel construction provides good mechanical durability for regular industrial use. The adapter helps simplify installation without requiring complex mounting arrangements.
The adapter is manufactured from stainless steel 303 / 1.4305 for reliable mechanical performance. The material provides suitable resistance for many industrial installation environments. An FKM seal is included to support reliable sealing at the threaded connection. The combination of metal construction and sealing material helps reduce the possibility of leakage when correctly installed. Its robust design makes it suitable for demanding process sensor mounting applications. Material compatibility with the process medium should always be checked before installation.
The E30000 is designed with a pressure rating of up to 200 bar or 20 MPa. This makes it suitable for various pressure-related industrial sensor installations. The threaded connection allows the adapter to be securely screwed into the process connection. Proper tightening and sealing are important for achieving reliable operation. The adapter can be used where compact and dependable sensor mounting is required. Application-specific pressure and medium compatibility should be verified before use.
G 1/4 sensor connection
G 1/2 process connection
Stainless steel 303 / 1.4305 construction
FKM sealing material
Pressure rating up to 200 bar
Compact screw-in design
Suitable for process sensor installation
Pack quantity of 1 piece
Pressure sensor installation
Process monitoring systems
Industrial piping systems
Fluid handling equipment
Process automation equipment
Container and pipe installations
Industrial hydraulic applications
| Specification | Details |
|---|---|
| Product Code | E30000 |
| Product Type | Screw-in Adapter |
| Product Name | ADAPT G1/4A-G1/2A |
| Brand | IFM |
| Sensor Connection | G 1/4 |
| Process Connection | G 1/2 |
| Connection Type | Threaded |
| Pressure Rating | 200 bar / 20 MPa |
| Housing Material | Stainless steel 303 / 1.4305 |
| Sealing Material | FKM |
| Weight | 89.5 g |
| Application | Process sensor installation |
| Installation | Screw-in connection |
| Pack Quantity | 1 piece |
| Pressure Equipment Directive | Classification depends on application |
| Medium Compatibility | Must be verified for the application |
