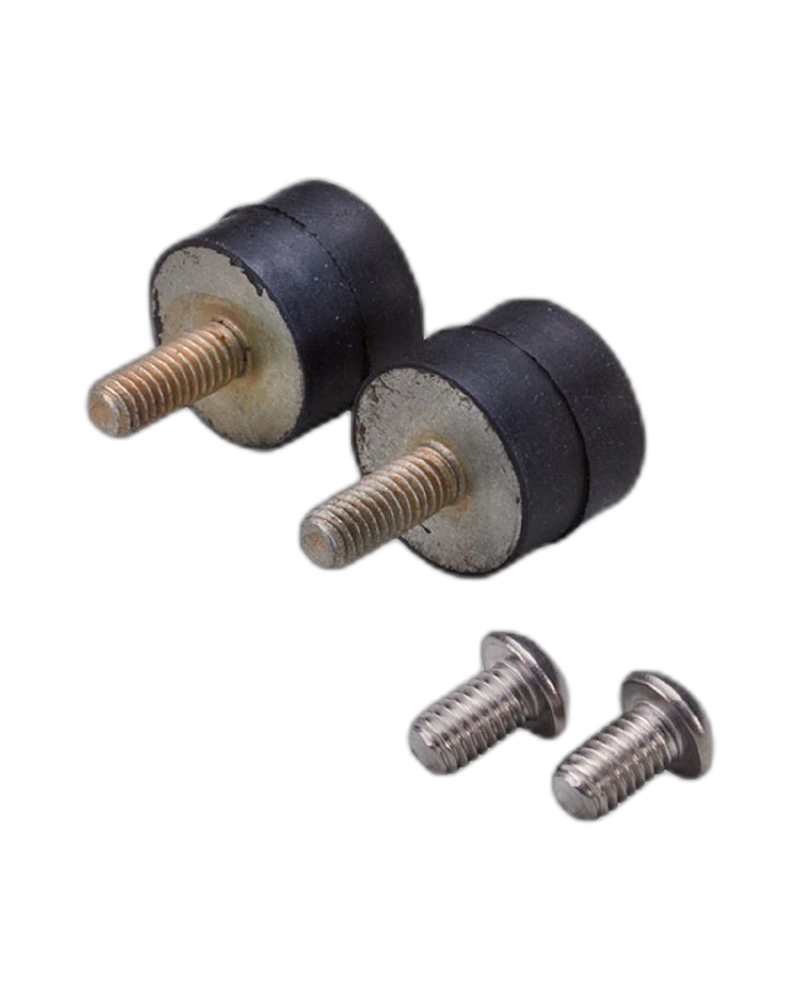

The ifm E2M213 vibration damper is designed to provide effective vibration damping for analogue cameras installed on mobile equipment. It helps reduce vibration transfer to the camera and supports improved image stability. The set uses rubber damping elements with metal fixing components. It is designed for quick camera mounting and is supplied as a two-piece set.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E2M213 is designed to reduce the effect of mechanical vibration on mounted analogue cameras. Vibration damping is particularly important when cameras are installed on mobile machines and moving equipment. By providing a damping interface, the accessory can help improve camera stability during machine operation. This supports clearer and more consistent camera images. The design is focused on practical vibration reduction during mobile applications.
A stable camera position is important for reliable visual monitoring. The E2M213 provides a shock absorber arrangement between the camera mounting system and the machine structure. This helps reduce unwanted movement caused by machine vibration. The compact design makes it suitable for integration into mobile camera mounting systems. It can therefore support improved image quality in demanding environments.
The absorber is made from rubber with a 60 Shore A specification, while the set screw uses metal M6 × 15 mm construction. The supplied fixing screws are chrome-plated steel. These components provide a practical combination of damping and mechanical fixing. The design supports repeated use in mobile machinery applications. Its operating temperature range is -40 to 85 °C.
Effective vibration damping
Designed for mobile camera installations
Rubber damping element
60 Shore A absorber material
M6 × 15 mm metal set screw
Quick mounting arrangement
Mobile camera systems
Construction machinery
Industrial vehicles
Heavy equipment
Camera monitoring systems
Vibration-prone machine installations
| Specification | Details |
|---|---|
| Product Code | E2M213 |
| Product Type | Vibration Damper |
| Product Designation | SHOCK ABSORBER SET |
| Application | Analogue camera mounting |
| Operating Temperature | -40 to 85 °C |
| Weight | 44.1 g |
| Dimensions | Ø20 × 30 mm |
| Absorber Material | Rubber |
| Rubber Hardness | 60 Shore A |
| Set Screw | Metal M6 × 15 mm |
| Fixing Screws | 2 × M6 × 10 mm |
| Fixing Screw Material | Chrome-plated steel |
| Pack Quantity | 2 pieces |
