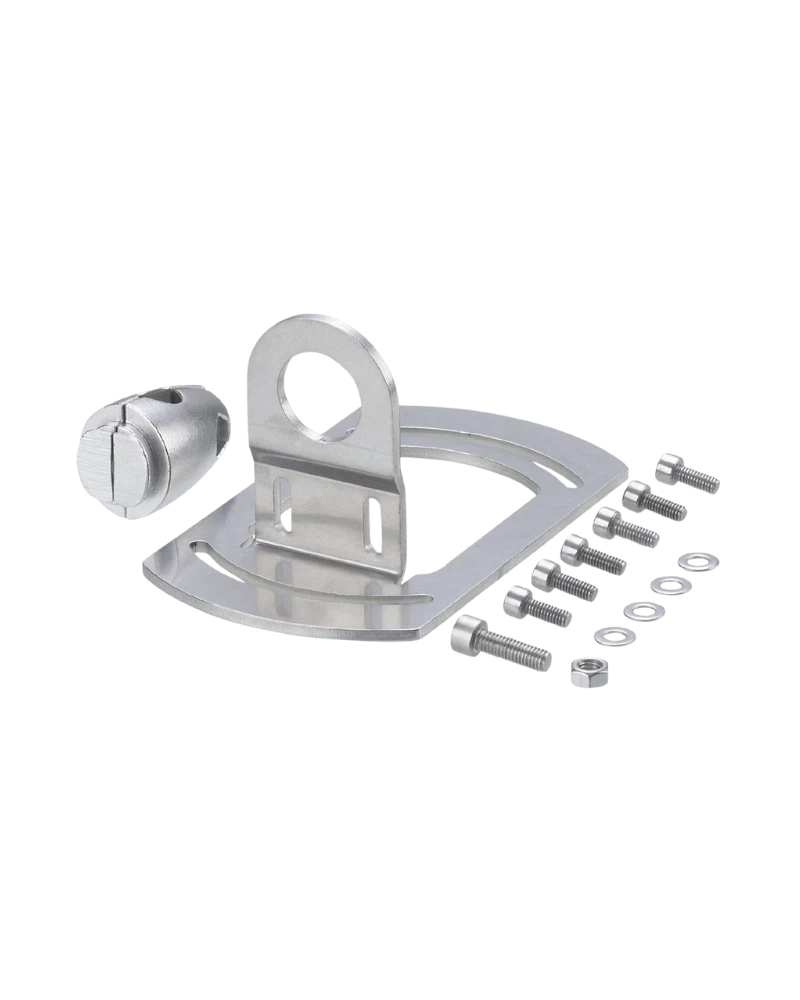

IFM E2D506 is a mounting set designed for compatible ring light illumination units used in industrial vision systems. It uses a clamp mounting arrangement for positioning ring lights around the inspection area. The mounting bracket is made from stainless steel 1.4301 / 304, while the clamp uses stainless steel 1.4408 / 316. The mounting set has dimensions of approximately 58.8 × 114 × 68 mm and weighs around 246.1 g. Six M4 × 10 mm screws and four A4.3 washers are supplied with the mounting set. It provides a compact and durable solution for ring light installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E2D506 is designed to provide mechanical support for ring light illumination units. Ring lighting is commonly used around cameras to provide controlled illumination of inspection targets. The mounting set helps position the light correctly around the camera and object. Proper positioning can improve the consistency of illumination during automated inspection. The clamp arrangement provides a convenient method for installation and adjustment. This makes E2D506 suitable for industrial machine vision applications.
The clamp mounting arrangement provides a secure mechanical connection for the ring light assembly. It allows the lighting component to be positioned according to the inspection geometry. The mounting arrangement can be adjusted during machine commissioning to achieve suitable illumination. Once aligned, the components can be tightened to maintain the selected position. This reduces the need for custom mounting structures. It also makes future adjustment and maintenance easier.
The mounting bracket is manufactured from stainless steel 1.4301 / 304. The clamp is made from stainless steel 1.4408 / 316, while the supplied screws and washers are also stainless steel. This provides a robust construction suitable for industrial lighting systems. Stainless steel helps support mechanical durability during installation and repeated adjustment. The construction provides stable support for the mounted illumination unit. It is suitable for industrial automation environments where reliable mechanical mounting is required.
The E2D506 mounting set has dimensions of approximately 58.8 × 114 × 68 mm. Its compact dimensions help integrate the ring light into machine vision equipment without requiring excessive mounting space. The unit weighs approximately 246.1 g, making it practical for industrial installation. Six M4 × 10 mm screws and four A4.3 washers are included. The complete arrangement helps simplify installation and maintenance.
Designed for ring light illumination
Clamp mounting design
Stainless steel 304 mounting bracket
Stainless steel 316 clamp
58.8 × 114 × 68 mm dimensions
Approx. 246.1 g weight
Six M4 × 10 mm screws supplied
Four A4.3 washers supplied
Compact mounting structure
Stable illumination positioning
Ring light installation
Machine vision
Automated inspection
Surface inspection
Product inspection
Quality control
Packaging inspection
Industrial image processing
| Specification | Details |
|---|---|
| Product Code | E2D506 |
| Product Type | Mounting set |
| Product Designation | Mounting Set Ringlight / CC |
| Application | Ring light illumination units |
| Compatible Application | O2D5, O2I5 |
| Mounting Type | Clamp mounting |
| Dimensions | Approx. 58.8 × 114 × 68 mm |
| Weight | Approx. 246.1 g |
| Mounting Bracket | Stainless steel 1.4301 / 304 |
| Clamp | Stainless steel 1.4408 / 316 |
| Screws | Stainless steel |
| Washers | Stainless steel |
| Screws Supplied | 6 × M4 × 10 mm |
| Washers Supplied | 4 × A4.3 |
| Pack Quantity | 1 pc |
| Main Function | Ring light mounting |
| Application Area | Machine vision |
