IFM E2D501 is a mounting set designed for compatible dome illumination units used in industrial vision applications. It provides a clamp mounting arrangement with a 12 mm mounting rod interface. The mounting set is designed for compatible O2I5xx systems and provides stable positioning of the illumination unit. Its mounting bracket and clamp are manufactured from stainless steel for durable industrial use. The complete set includes the required screws, clamp, bracket and hexagon nut. E2D501 provides a convenient mounting solution for controlled illumination in machine vision systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E2D501 is designed specifically for mounting compatible dome illumination equipment. Dome lighting can provide controlled illumination around an inspection area and help improve the visibility of inspection targets. The mounting set allows the illumination unit to be positioned correctly relative to the camera and object. This helps create a consistent lighting arrangement during automated inspection. The dedicated mounting design reduces the need for custom brackets. It provides a practical solution for integrating illumination into industrial vision equipment.
The mounting set uses a 12 mm mounting rod as its mechanical mounting interface. This provides a convenient and standardized way to install the illumination unit. The rod-based arrangement allows the lighting position to be adjusted according to the machine layout. It also supports convenient installation where illumination equipment needs to be positioned close to the inspection target. The clamp provides secure attachment to the mounting structure. This makes the mounting set suitable for machine vision installations requiring accurate light positioning.
The mounting bracket is manufactured from stainless steel 1.4301 / 304, while the clamp uses stainless steel 1.4408. The cylinder screws are also manufactured from stainless steel. This construction provides a durable mechanical assembly for industrial applications. Stainless steel components support repeated installation, adjustment and maintenance. The robust construction helps maintain the illumination unit in its selected position. This makes E2D501 suitable for reliable long-term use in industrial vision systems.

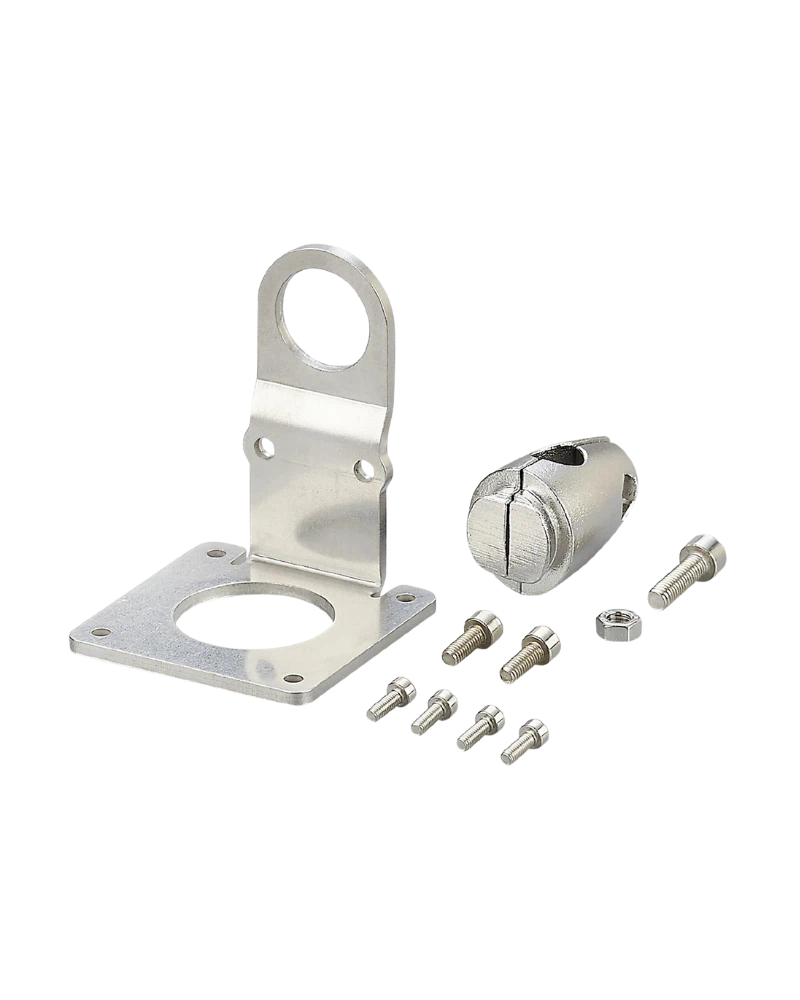

E2D501 is supplied as a complete mounting set with the main mechanical components required for installation. The supplied hardware includes one M5 × 16 mm head cap screw, one mounting bracket, two M4 × 10 mm cylinder screws and four M3 × 8 mm cylinder screws. It also includes one clamp and one M5 hexagon nut. This complete hardware arrangement helps simplify installation and reduces the need for separate mounting components. The mounting set weighs approximately 224.5 g.
Designed for dome illumination units
12 mm mounting rod
Clamp mounting arrangement
Compatible with O2I5xx types
Stainless steel 304 mounting bracket
Stainless steel clamp
Complete mounting hardware
Secure illumination positioning
Compact industrial mounting solution
Easy installation and adjustment
Machine vision illumination
Dome light installation
Automated inspection
Quality control
Product inspection
Surface inspection
Packaging inspection
Industrial image processing
| Specification | Details |
|---|---|
| Product Code | E2D501 |
| Product Type | Mounting set |
| Product Designation | Mounting Set Domelight / CC |
| Application | Illumination unit |
| Compatible Types | O2I5xx |
| Mounting Type | Mounting rod |
| Mounting Rod Diameter | 12 mm |
| Clamp Material | Stainless steel 1.4408 |
| Mounting Bracket Material | Stainless steel 1.4301 / 304 |
| Cylinder Screw Material | Stainless steel |
| Weight | Approx. 224.5 g |
| Head Cap Screw | 1 × M5 × 16 mm |
| Mounting Bracket | 1 |
| Cylinder Screws | 2 × M4 × 10 mm |
| Cylinder Screws | 4 × M3 × 8 mm |
| Clamp | 1 |
| Hexagon Nut | 1 × M5 |
| Pack Quantity | 1 pc |
| Main Function | Dome illumination mounting |
