Flexible Camera Positioning

E2D500 provides flexible positioning for compatible cameras used in industrial vision applications. The clamp arrangement allows the mounted camera to be moved in different directions during system setup. This makes it easier to achieve the required viewing angle and inspection position. The freely movable mounting arrangement is particularly useful when camera alignment needs to be adjusted during commissioning. Once the correct position is achieved, the mounting components can be securely fixed. This supports stable camera positioning during continuous machine operation.

Clamp Mounting Arrangement

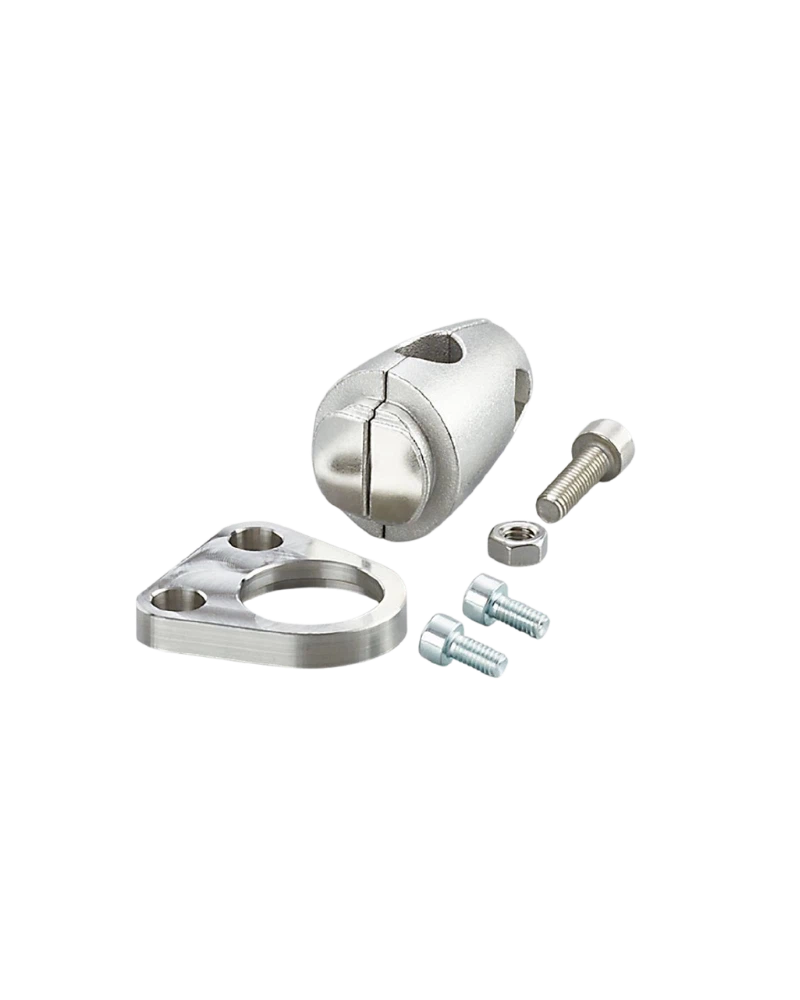

The mounting set uses a clamp-based design that provides a practical method of attaching the camera to a mounting rod. It is designed for installation on a round mounting profile with a diameter of approximately 12 mm. The clamp provides a stable mechanical connection without requiring a complicated mounting structure. This makes installation easier for machine builders and automation engineers. The arrangement also allows the camera to be repositioned when inspection requirements change. The design is suitable for compact industrial vision installations.

Robust Mechanical Construction

The clamp is manufactured from stainless steel 1.4404 / 316L, providing strong mechanical support for the mounted camera. The assembly angle is made from stainless steel 1.4301 / 304 for additional durability. These materials are suitable for industrial mounting applications where reliable mechanical construction is important. The use of stainless-steel components supports repeated installation and adjustment. The mounting structure helps maintain camera alignment during normal machine operation. This makes E2D500 a practical accessory for industrial automation environments.

Compact Vision System Integration

E2D500 is intended for compatible O2D5 and O2I5 vision applications. Its compact mounting arrangement helps integrate the camera into machine structures without requiring excessive installation space. The mounting set provides a dedicated mechanical interface between the camera and mounting rod. This can simplify the construction of automated inspection systems. The accessory is useful where camera alignment and stable positioning are important. It supports organized installation of vision equipment on production and inspection machines.

Key Features / Benefits

Complete mounting set for compact cameras

Clamp mounting arrangement

12 mm mounting rod compatibility

Free movement in different directions

Stainless steel 316L clamp

Stainless steel 304 assembly angle

Compact installation design

Stable camera positioning

Easy alignment and adjustment

Suitable for industrial vision systems

Applications

Machine vision inspection

Camera mounting

Automated quality inspection

Object detection

Product inspection

Packaging inspection

Production line monitoring

Industrial automation
