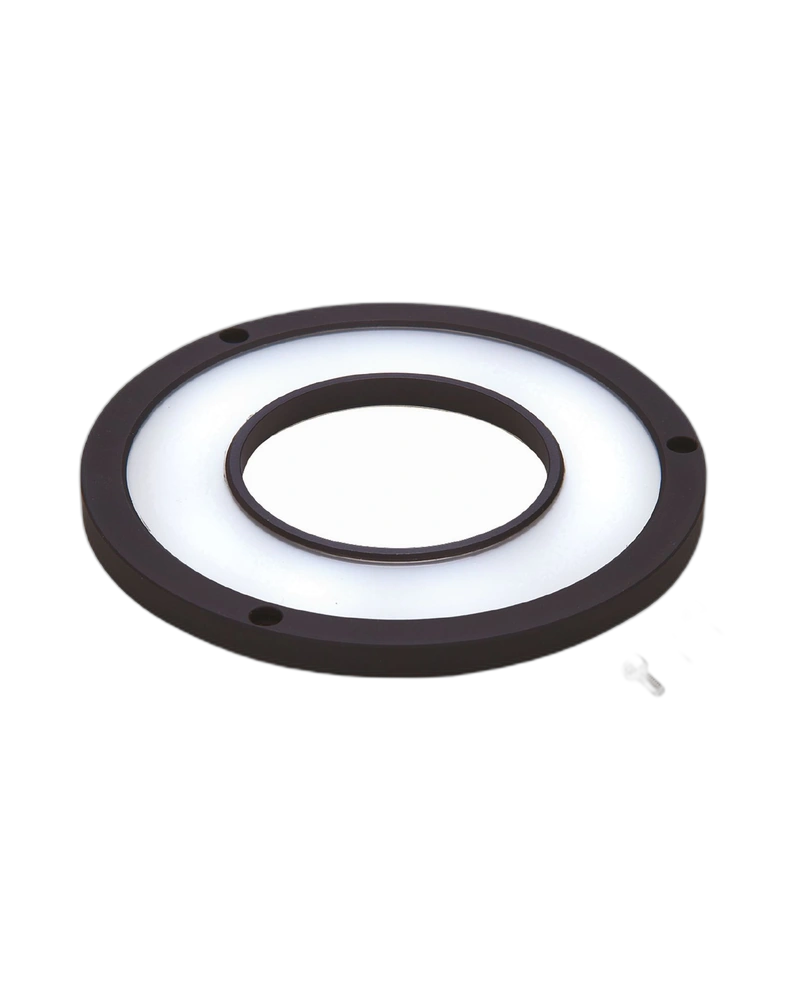

IFM E2D202 is a diffuser designed for compatible ring light illumination units used in industrial vision applications. It features a glass lens designed to provide controlled diffusion of illumination from the ring light. The diffuser has dimensions of approximately 122 × 8 × 122 mm and weighs around 200.5 g. Its housing is manufactured from black anodized aluminium for a durable and compact construction. The specified operating ambient temperature range is -25 to 75°C. Three screws are supplied with the diffuser for convenient installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E2D202 is designed to diffuse illumination produced by compatible ring lighting equipment. Diffused lighting can help create a more controlled lighting condition around an inspection target. This can be useful when direct illumination produces unwanted reflections or uneven brightness. The diffuser helps modify the light distribution before it reaches the inspection area. It can therefore support consistent lighting conditions for machine vision applications. Proper illumination is important for reliable image processing and inspection results.
The diffuser uses a glass lens as the light-diffusing element. Glass provides a rigid optical surface suitable for industrial illumination accessories. The lens is integrated into a compact housing designed for ring light applications. The optical component helps distribute illumination more evenly across the inspection area. This can support improved image consistency for compatible vision systems. The lens should be handled carefully during installation and maintenance.
The housing is manufactured from black anodized aluminium. Aluminium provides a lightweight and mechanically durable structure around the glass lens. The anodized surface provides additional protection to the housing and gives it a suitable finish for industrial equipment. The black housing can also help reduce unwanted light reflections around the illumination assembly. This makes the diffuser suitable for controlled machine vision lighting environments.
E2D202 has a specified ambient operating temperature range of -25 to 75°C. This allows the diffuser to be used across a broad range of industrial environmental conditions within its rated limits. The unit weighs approximately 200.5 g and measures approximately 122 × 8 × 122 mm. Three screws are supplied for installation. These specifications make it a practical accessory for compatible ring illumination systems.
Designed for ring light illumination
Light diffusion function
Glass lens
Black anodized aluminium housing
122 × 8 × 122 mm dimensions
Approx. 200.5 g weight
-25 to 75°C ambient temperature
Three screws supplied
Compact construction
Supports controlled illumination
Machine vision lighting
Ring light systems
Automated inspection
Surface inspection
Object inspection
Quality control
Packaging inspection
Image processing systems
| Specification | Details |
|---|---|
| Product Code | E2D202 |
| Product Type | Diffuser |
| Product Designation | DIFFUSER WINDOW RINGLIGHT |
| Application | Illumination units |
| Lens Material | Glass |
| Housing Material | Aluminium |
| Housing Finish | Black anodized |
| Dimensions | Approx. 122 × 8 × 122 mm |
| Weight | Approx. 200.5 g |
| Ambient Temperature | -25 to 75°C |
| Screws Supplied | 3 |
| Pack Quantity | 1 pc |
| Main Function | Light diffusion |
| Compatible Application | Ring light |
| Application Area | Machine vision |
