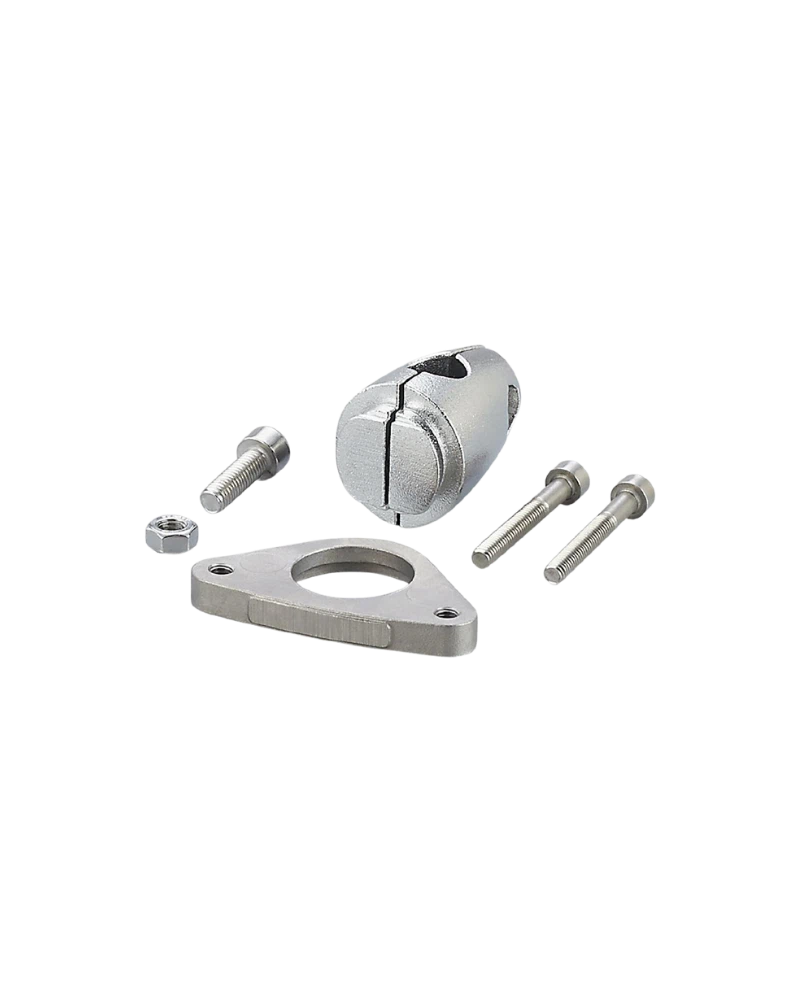

IFM E2D119 is a complete mounting set designed for clamp mounting of compatible vision sensors. It is intended for installation on a 12 mm mounting rod and provides flexible sensor positioning. The mounting set is designed for easy and quick installation in industrial vision applications. Its fixture is manufactured from stainless steel 1.4301 / 304, while the clamp uses stainless steel 1.4408. The unit weighs approximately 121.8 g and is supplied as one complete mounting set. Its flexible mounting arrangement helps simplify alignment of vision sensors during machine setup.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E2D119 provides a practical mechanical solution for mounting compatible vision sensors. It uses a clamp-based arrangement that allows the sensor to be positioned according to the inspection target. This makes the accessory useful for automated inspection systems where camera alignment is important. The mounting set provides a stable mechanical connection while allowing adjustments during installation. It can help simplify the physical setup of industrial vision equipment. The design is suitable for different machine vision mounting requirements.
The mounting system allows free movement of the sensor position in different directions. This helps installers achieve the required viewing angle and inspection position. Flexible positioning is especially useful during commissioning when the exact camera location may need several adjustments. Once the appropriate position is achieved, the mounting components can be secured. This supports stable operation after alignment. The design also makes future repositioning easier when production requirements change.
E2D119 uses stainless steel 1.4301 / 304 for the fixture and stainless steel 1.4408 for the clamp. These materials provide good mechanical durability for industrial mounting applications. Stainless steel construction supports repeated installation and adjustment during machine maintenance. The robust mounting arrangement helps keep the vision sensor securely positioned. It is suitable for industrial environments where reliable mechanical support is required.
The mounting set is designed for a 12 mm mounting rod and weighs approximately 121.8 g. Its compact construction helps integrate the vision sensor into automated inspection equipment without requiring a large mounting structure. The clamp design provides a convenient installation method. The complete mounting arrangement can be adjusted during setup and secured after alignment. This makes E2D119 a practical accessory for machine vision systems.
Designed for vision sensors
Complete clamp mounting set
12 mm mounting rod
Flexible sensor positioning
Stainless steel 1.4301 / 304 fixture
Stainless steel 1.4408 clamp
Approx. 121.8 g weight
Compact mounting design
Easy installation
Suitable for industrial vision
Machine vision
Camera mounting
Automated inspection
Quality control
Object detection
Packaging inspection
Production line inspection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E2D119 |
| Product Type | Mounting Set |
| Product Designation | MOUNTING SET OMH |
| Application | Vision sensors |
| Mounting Design | Clamp mounting |
| Mounting Rod | Ø12 mm |
| Weight | Approx. 121.8 g |
| Fixture Material | Stainless steel 1.4301 / 304 |
| Clamp Material | Stainless steel 1.4408 |
| Pack Quantity | 1 pc |
| Positioning | Free movement in all directions |
| Main Function | Vision sensor mounting |
| Installation | Mounting rod |
| Application Area | Industrial vision |
