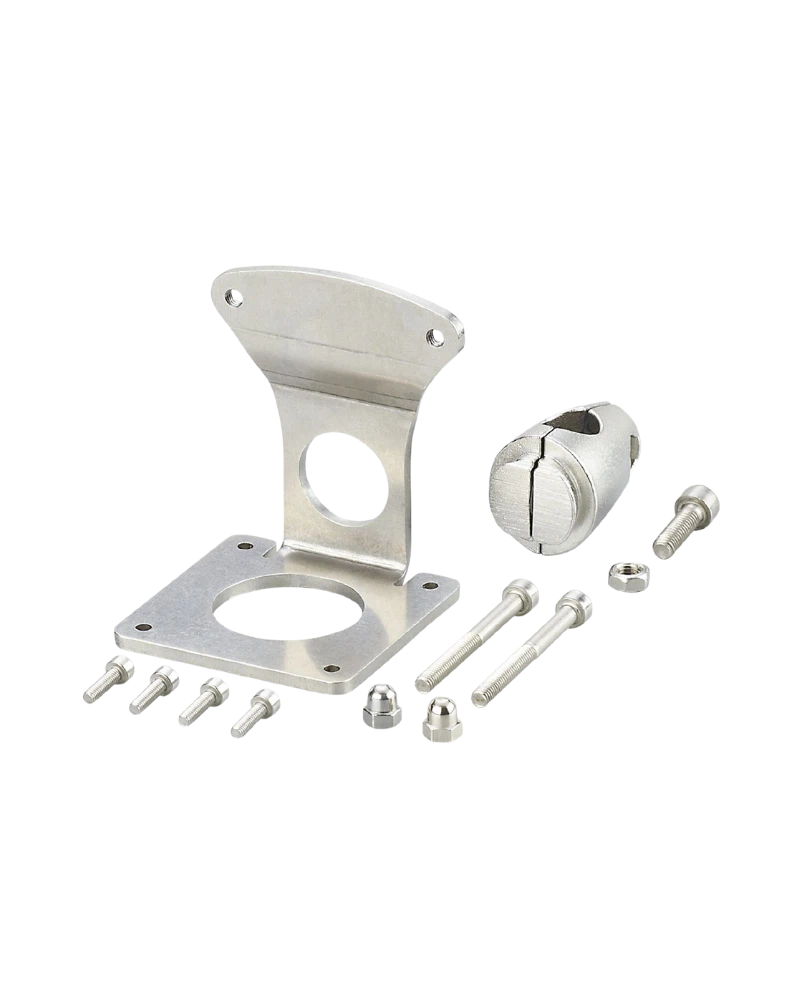

IFM E2D117 is a mounting set designed for dome illumination units used with industrial vision systems. It provides a dedicated mounting solution for compatible O2D-type illumination equipment. The mounting arrangement uses a 12 mm mounting rod and provides stable positioning of the illumination unit. The fixture is manufactured from stainless steel 1.4305 / 303 for durable industrial use. The mounting set weighs approximately 186.5 g and is supplied with four screws. It provides a practical solution for installing dome lighting in automated inspection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E2D117 provides a dedicated mounting arrangement for dome-style illumination units. Dome lighting is useful for creating controlled and relatively uniform illumination around inspection targets. The mounting set helps position the light correctly in relation to the camera and inspection object. This can support consistent image quality during automated inspection. The dedicated mounting design helps reduce the need for custom brackets. It is suitable for machine vision systems using compatible illumination equipment.
The mounting set is designed for installation using a 12 mm mounting rod. This provides a standardized and practical mechanical connection for the illumination assembly. The mounting arrangement allows the lighting unit to be positioned according to the required inspection geometry. A stable mounting rod connection helps maintain the selected position during operation. It also makes installation and adjustment easier during system commissioning. The design is suitable for industrial machine vision installations.
The fixture is manufactured from stainless steel 1.4305 / 303. This material provides suitable mechanical strength and durability for industrial mounting applications. Stainless steel also helps protect the mounting component against common industrial environmental conditions. The robust construction supports repeated installation and adjustment. It provides a stable mechanical foundation for the compatible illumination unit. This makes the mounting set suitable for long-term automated inspection systems.
E2D117 is supplied with four screws for installation. The complete mounting accessory helps simplify the process of attaching the dome illumination unit to the required mounting structure. Its approximately 186.5 g weight makes it a practical accessory for machine vision installations. The mounting design is intended for compatible O2D illumination applications. The compact structure supports clean installation around cameras and inspection targets.
Designed for dome light
Compatible with O2D applications
12 mm mounting rod
Stainless steel 1.4305 / 303 fixture
Approx. 186.5 g weight
Four screws supplied
Stable illumination mounting
Compact design
Easy installation
Suitable for machine vision
Dome illumination
Machine vision inspection
Automated quality control
Object inspection
Component inspection
Surface inspection
Packaging inspection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E2D117 |
| Product Type | Mounting Set |
| Product Designation | MOUNTING SET DOME LIGHT |
| Application | Illumination unit |
| Compatible System | O2D types |
| Mounting Type | Mounting rod |
| Mounting Rod Diameter | 12 mm |
| Fixture Material | Stainless steel 1.4305 / 303 |
| Weight | Approx. 186.5 g |
| Screws Supplied | 4 |
| Pack Quantity | 1 pc |
| Main Function | Dome light mounting |
| Application Area | Machine vision |
