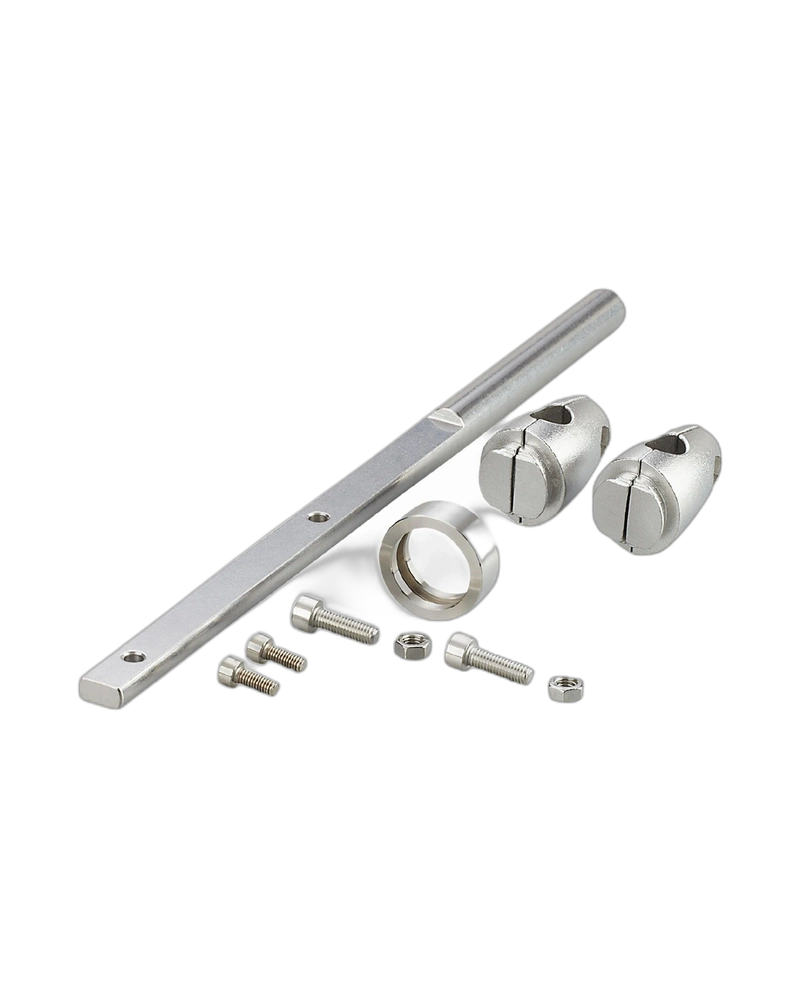

IFM E2D114 is a mounting set specially designed for bar illumination units used in industrial vision and inspection applications. It provides a complete clamp mounting solution for securely positioning compatible illumination equipment. The mounting set is designed for installation on a mounting rod and allows the illumination unit to be positioned according to the inspection requirement. Its robust stainless-steel construction makes it suitable for demanding industrial environments. The Ø12 mm mounting interface and 250 mm length provide a practical arrangement for machine vision installations. The supplied screws make installation straightforward and convenient.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E2D114 provides a practical mounting solution for bar light illumination units used with industrial vision systems. The clamp mounting arrangement allows the lighting unit to be positioned according to the inspection requirement. The illumination unit can be adjusted to achieve a suitable angle and position relative to the inspection target. This flexibility is useful when lighting conditions need to be optimized during machine vision setup. The mounting arrangement helps reduce installation complexity and supports accurate positioning. It is particularly suitable for automated inspection stations where consistent illumination is important.
The clamp mounting design allows the illumination accessory to be securely installed on a suitable mounting rod. It provides a convenient method for positioning the light without requiring complicated mounting arrangements. The clamp can be adjusted during installation to achieve the required illumination position. Once correctly aligned, the mounting arrangement helps maintain the selected position during operation. This makes the accessory suitable for industrial machine vision environments. The design supports quick installation and convenient maintenance.
E2D114 uses stainless steel for the mounting bracket and clamp, providing a robust construction for industrial applications. Stainless steel offers good mechanical durability and resistance to common industrial environmental conditions. The material also supports repeated installation and adjustment during machine setup. The mounting set is designed to withstand normal handling associated with industrial vision equipment. Its construction helps provide stable support for the attached illumination unit. This makes it suitable for long-term use in automated inspection systems.
The mounting set has a compact mechanical design with a Ø12 mm mounting rod interface and a length of approximately 250 mm. This arrangement provides a practical installation solution for bar illumination units. The supplied screws help simplify installation and secure the mounting components. The compact design can be useful where space around the inspection area is limited. It supports flexible positioning without requiring a large mounting structure. E2D114 therefore helps create a clean and organized vision lighting installation.
Designed for bar illumination units
Clamp mounting arrangement
Ø12 mm mounting rod compatibility
Approximately 250 mm length
Stainless-steel mounting bracket
Stainless-steel clamp
Flexible positioning
Easy installation
Robust industrial construction
Suitable for machine vision lighting
Machine vision inspection
Industrial lighting systems
Automated quality inspection
Object inspection
Conveyor inspection
Packaging inspection
Manufacturing automation
Vision-based measurement
| Specification | Details |
|---|---|
| Product Code | E2D114 |
| Product Type | Mounting Set |
| Product Designation | MOUNTING SET BARLIGHT |
| Application | Illumination unit |
| Mounting Design | Clamp mounting |
| Mounting Rod | Ø12 mm |
| Length | Approx. 250 mm |
| Mounting Bracket Material | Stainless steel |
| Clamp Material | Stainless steel |
| Items Supplied | Screws |
| Pack Quantity | 1 pc |
| Main Function | Bar light mounting |
| Application Area | Industrial vision |
| Installation | Mounting rod |
| Position Adjustment | Flexible positioning |
