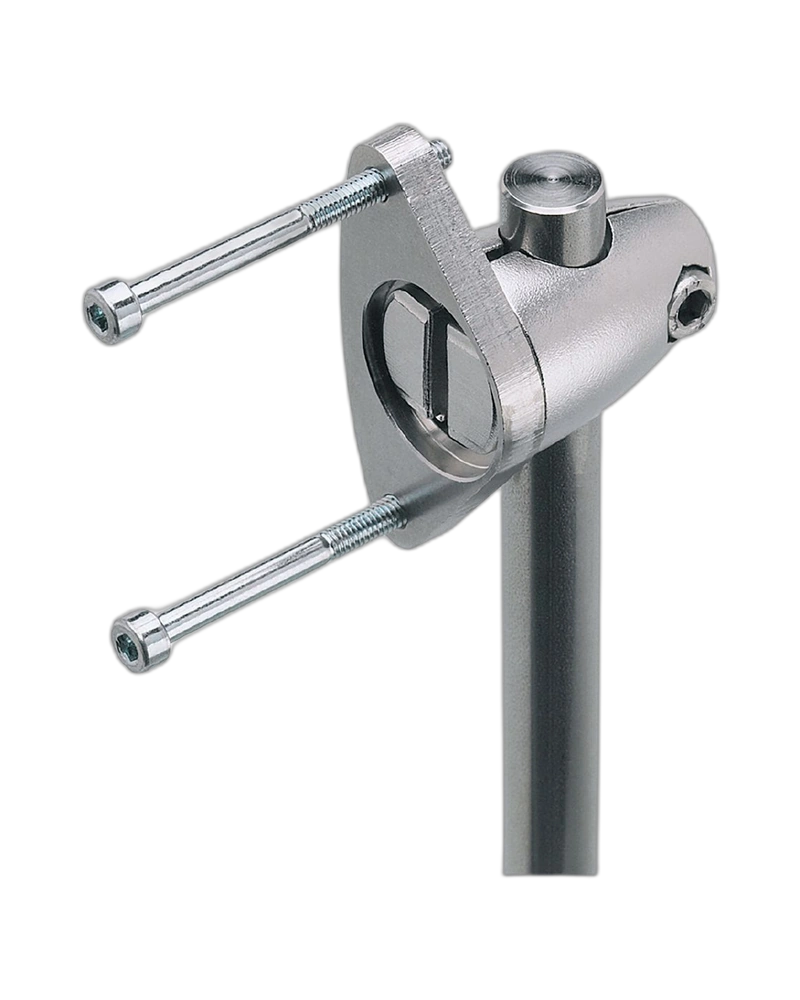

IFM E2D112 is a complete mounting set designed for clamp mounting of compatible vision sensors. It provides a practical and flexible solution for positioning sensors on a mounting rod. The mounting arrangement allows free movement in different directions, making it easier to align the vision sensor with the inspection target. The mounting set is designed for use in industrial environments and has a robust stainless-steel construction. It uses a Ø14 mm mounting rod interface and weighs approximately 120.5 g. The set is supplied as one complete mounting assembly for convenient sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E2D112 allows compatible vision sensors to be positioned flexibly during machine installation. Its clamp mounting arrangement enables the sensor position to be adjusted according to the inspection area. This is particularly useful when the sensor needs precise alignment with a target or conveyor. Free movement in multiple directions helps simplify initial setup. Once the required position is achieved, the mounting assembly can be secured.
The mounting set uses a clamp-based fixing method rather than requiring complex direct mounting. This makes installation convenient when a suitable Ø14 mm mounting rod is available. The clamp arrangement allows the vision sensor to be repositioned during commissioning. It can also simplify maintenance when the inspection setup needs adjustment. The robust construction supports repeated industrial handling.
E2D112 uses stainless steel for the mounting fixture and clamp components. The fixture is specified as stainless steel 304 / 1.4301, while the clamp is made from stainless steel 1.4408. These materials provide good mechanical strength and corrosion resistance for industrial applications. The robust construction supports stable mounting of vision sensors. This makes the mounting set suitable for machine vision installations in demanding industrial environments.
Correct positioning is essential for reliable machine vision inspection. E2D112 allows the sensor to be moved and aligned according to the target position before final tightening. This helps installers achieve the required viewing angle and inspection area. The mounting rod arrangement also provides flexibility when the sensor position needs to change later. The complete set helps reduce the time and complexity involved in sensor mounting.
Complete vision sensor mounting set
Clamp mounting design
Ø14 mm mounting rod compatibility
Free movement for sensor positioning
Stainless steel fixture
Stainless steel clamp
Robust industrial construction
Approx. 120.5 g weight
Easy sensor alignment
Suitable for machine vision applications
Machine vision systems
Vision inspection
Object detection
Industrial automation
Quality inspection
Packaging inspection
Conveyor inspection
Manufacturing inspection systems
| Specification | Details |
|---|---|
| Product Code | E2D112 |
| Product Type | Mounting Set |
| Product Designation | MOUNTING SET VISION SENSOR |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | Ø14 mm |
| Sensor Positioning | Free movement in all directions |
| Fixture Material | Stainless steel 304 / 1.4301 |
| Clamp Material | Stainless steel 1.4408 |
| Weight | Approx. 120.5 g |
| Pack Quantity | 1 pc. |
| Main Application | Vision sensor mounting |
| Installation | Mounting rod / clamp |
