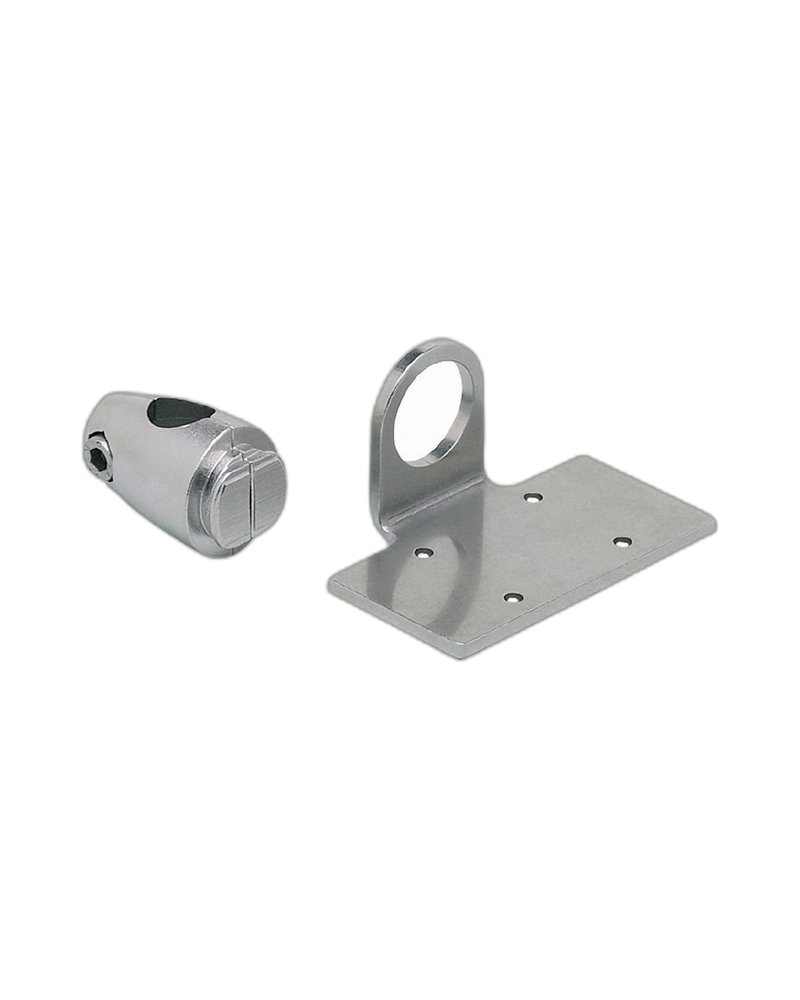

IFM E2D107 is a mounting set designed for illumination units with a 25 × 25 mm configuration. It provides a stable mechanical arrangement for positioning compatible illumination components. The mounting design helps maintain consistent illumination alignment during machine operation. Its compact construction supports integration into industrial inspection and automation systems. The set provides a practical solution for mounting illumination equipment in restricted machine spaces.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Stable Illumination Mounting
IFM E2D107 provides a dedicated mounting arrangement for compatible 25 × 25 mm illumination units. The mounting structure helps hold the illumination component securely during machine operation. Stable positioning is important for maintaining consistent lighting conditions during inspection and detection processes. The accessory simplifies mechanical integration of the illumination unit into the machine. It is suitable for industrial automation and vision-related applications.
Precise Positioning
The mounting arrangement allows the illumination unit to be positioned according to the required inspection area. Correct positioning helps provide consistent illumination across the target surface. This can improve repeatability in optical inspection applications. The compact mounting design is suitable for machine layouts where installation space is limited. It also supports convenient adjustment during system commissioning.
Designed for illumination units
25 × 25 mm configuration
Stable mechanical mounting
Supports accurate illumination positioning
Compact installation design
Suitable for industrial inspection
Compatible with IFM automation systems
Machine vision illumination
Industrial inspection
Object inspection
Quality control systems
Production machinery
Automation equipment
Optical detection systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model / Order Number | E2D107 |
| Product Type | Mounting Set for Illumination Unit |
| Designation | MOUNTING SET BACKLIGHT 25X25 |
| Product Family | Mounting Set |
| Application Category | Automation and Controls |
| Compatible Illumination Size | 25 × 25 mm |
| Mounting Method | Mechanical mounting |
| Installation | Machine / inspection equipment |
| Construction | Industrial-grade mounting accessory |
| Application | Illumination positioning |
| Adjustment | Positioning according to installation requirement |
| Compatibility | Compatible IFM illumination systems |
| Pack Quantity | 1 pc |
