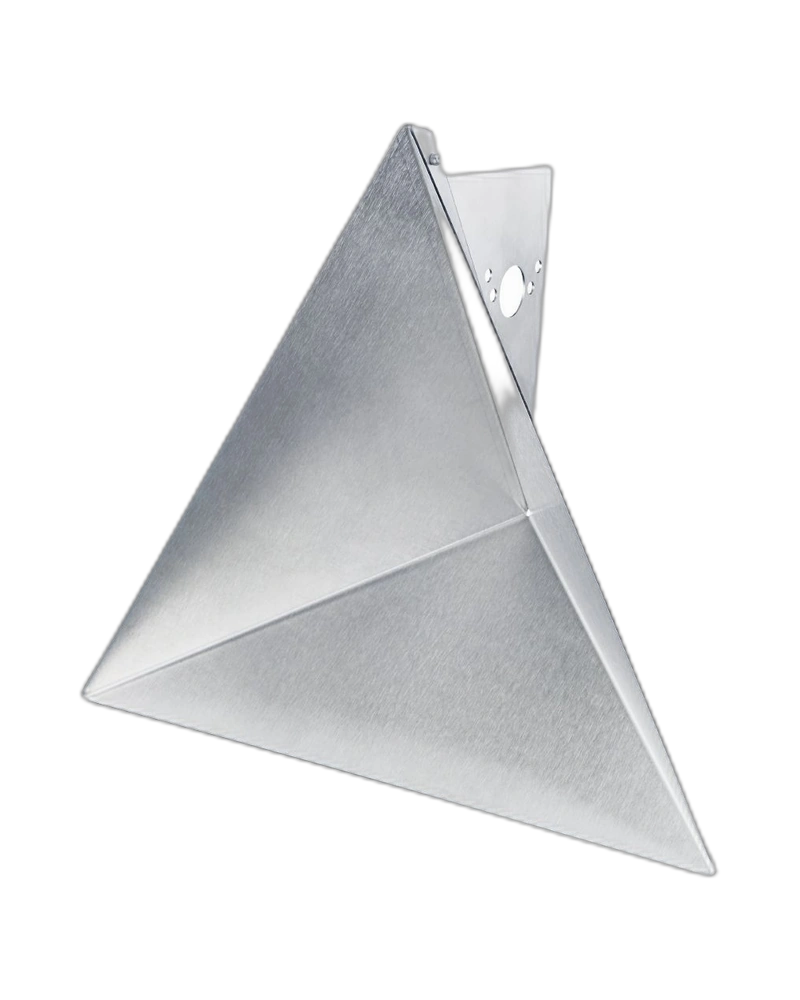

IFM E23014 is a large radar corner reflector designed to generate a strong radar echo and increase the reflection properties of objects. It is the larger 200-size version within the IFM radar corner reflector range. The reflector is manufactured from stainless steel 316Ti / 1.4571 for durable outdoor and industrial operation. Its dimensions are approximately 114.1 × 242.3 × 279.3 mm. The robust passive reflector is suitable for applications requiring a clearly detectable radar target.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E23014 is designed to generate a strong radar echo that can be detected by compatible radar sensors. The corner-reflector geometry redirects radar energy toward the sensor, creating a more pronounced radar response. This can help improve detection reliability for selected objects or targets. It is useful where a predictable radar reflection is required. The passive design operates without electrical power or signal processing.
The E23014 is the 200-size reflector and provides a substantially larger reflective structure than smaller versions in the range. Its dimensions are approximately 114.1 × 242.3 × 279.3 mm. The larger geometry is suitable for applications where increased radar visibility is required. The defined corner shape supports consistent radar reflection. This makes it useful for larger machines, vehicles and outdoor radar targets.
The reflector is manufactured from stainless steel 316Ti / 1.4571. This provides strong mechanical performance and corrosion resistance. IFM describes the reflector range as robust and weather-resistant for reliable long-term use. The E23014 weighs approximately 1175.9 g. Its durable construction makes it suitable for demanding industrial and outdoor installations.
E23014 can be installed on objects or equipment where a stronger radar response is required. It provides a passive method of increasing radar visibility without adding an electronic transmitter. This can be useful for radar detection, positioning and monitoring applications. The robust corner-reflector design supports long-term use in outdoor environments. It is supplied as one complete reflector.
Radar corner reflector
Designation RADAR CORNER REFLECTOR 200
Strong radar echo generation
Improves reflection properties
Large corner-reflector design
Stainless steel 316Ti construction
Material grade 1.4571
Dimensions 114.1 × 242.3 × 279.3 mm
Weight approximately 1175.9 g
Weather-resistant construction
Passive radar target
Pack quantity 1 pc
Radar target detection
Vehicle detection
Large machinery detection
Outdoor radar systems
Mobile working machines
Industrial monitoring
Object identification
Material handling
Radar positioning
Automation systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E23014 |
| Product Type | Radar Corner Reflector |
| Designation | RADAR CORNER REFLECTOR 200 |
| Function | Radar reflection enhancement |
| Reflector Type | Corner reflector |
| Material | Stainless steel |
| Material Grade | 316Ti / 1.4571 |
| Weight | 1175.9 g |
| Length | 114.1 mm |
| Width | 242.3 mm |
| Height | 279.3 mm |
| Total Dimensions | 114.1 × 242.3 × 279.3 mm |
| Application | Radar sensing |
| Installation | Object/equipment mounted |
| Power Requirement | None |
| Pack Quantity | 1 pc |
