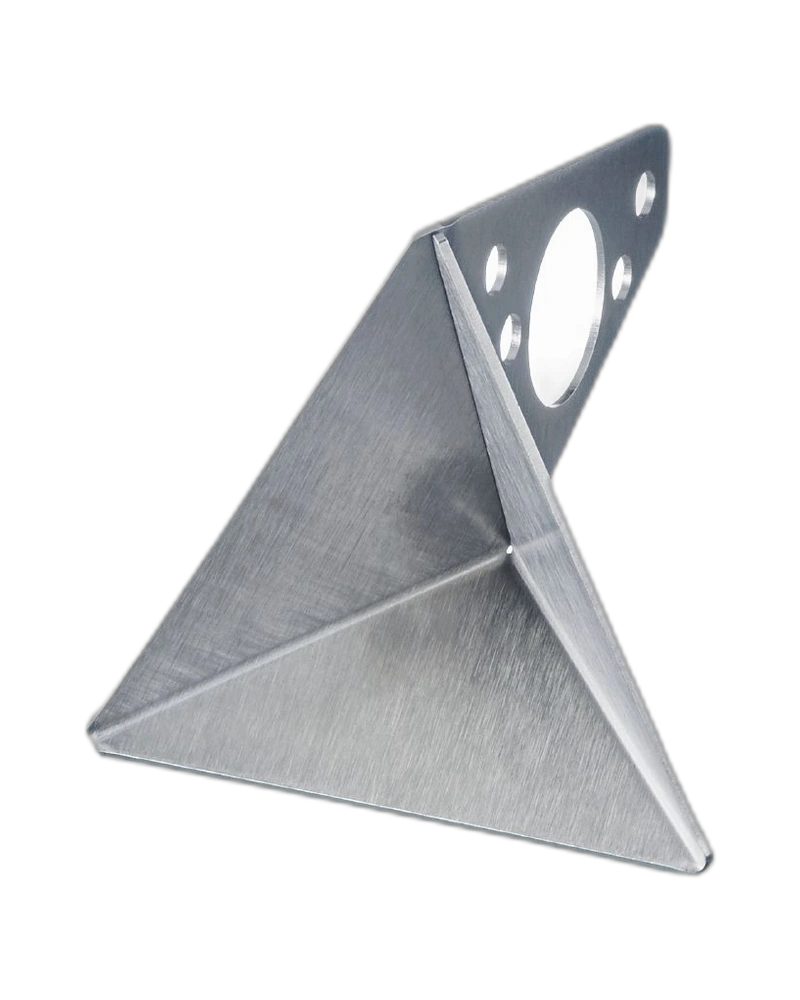

IFM E23013 is a radar corner reflector designed to produce a strong radar echo and improve the reflection properties of objects. It provides a larger reflective structure than the E23012 version for applications requiring a stronger or more detectable radar target. The reflector is manufactured from stainless steel 316Ti / 1.4571 for robust and weather-resistant operation. It measures approximately 89.6 × 119.8 × 137.9 mm. The durable design makes it suitable for industrial and outdoor radar applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E23013 provides a defined radar-reflective surface that can generate a strong echo signal. This can help radar sensors reliably detect or identify objects equipped with the reflector. The corner geometry is designed to improve the return of radar energy toward the sensor. This makes the reflector useful for applications where a predictable radar target is required. It can improve the reflection characteristics of otherwise weak radar targets.
The E23013 is the 100-size version within the IFM radar corner reflector range. Its dimensions are approximately 89.6 × 119.8 × 137.9 mm. The larger structure provides a substantial reflective target for compatible radar sensors. This makes it suitable for applications requiring increased target visibility. Its defined geometry supports consistent radar reflection.
The reflector is manufactured from stainless steel 316Ti / 1.4571. This material provides good resistance to corrosion and environmental exposure. IFM describes the design as robust and weather-proof for reliable long-term use. This makes the reflector suitable for outdoor machinery and mobile working equipment. The unit weighs approximately 283.2 g.
E23013 provides a passive radar target solution without requiring an electronic power supply. It can be installed on equipment or objects that need to provide a stronger radar response. The reflector's simple mechanical design supports quick installation. This can be useful for vehicle detection, machine positioning and radar monitoring applications. It is supplied as one piece.
Radar corner reflector
Designation RADAR CORNER REFLECTOR 100
Generates strong radar echo
Improves reflection properties
Corner-reflector geometry
Stainless steel 316Ti construction
Material grade 1.4571
Dimensions 89.6 × 119.8 × 137.9 mm
Weight approximately 283.2 g
Robust weather-resistant design
Passive radar target
Pack quantity 1 pc
Radar target detection
Vehicle detection
Mobile machinery
Industrial radar systems
Object identification
Machine monitoring
Outdoor radar sensing
Material handling
Automation systems
Radar positioning applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E23013 |
| Product Type | Radar Corner Reflector |
| Designation | RADAR CORNER REFLECTOR 100 |
| Function | Radar reflection enhancement |
| Reflector Type | Corner reflector |
| Material | Stainless steel |
| Material Grade | 316Ti / 1.4571 |
| Weight | 283.2 g |
| Length | 89.6 mm |
| Width | 119.8 mm |
| Height | 137.9 mm |
| Total Dimensions | 89.6 × 119.8 × 137.9 mm |
| Application | Radar sensing |
| Installation | Object/equipment mounted |
| Pack Quantity | 1 pc |
