IFM E23011 is a mounting set designed for installing IFM radar sensors using a cylindrical mounting arrangement. It is designed for round profiles with a diameter of 14 mm. The mounting holder is manufactured from stainless steel 304, while the clamping cylinder uses stainless steel construction. The kit provides a secure and practical mounting solution for radar sensors in industrial equipment. It is supplied with two M5 × 90 mm cylinder screws and two washers.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E23011 is designed specifically for mounting radar sensors in industrial and mobile machine applications. The mounting set provides a secure mechanical connection between the radar sensor and a suitable round profile. Its cylindrical mounting concept makes it suitable for machines that use tubular or rod-style mounting structures. The arrangement provides stable sensor positioning during operation. This makes it useful for radar-based object and movement detection systems.
The mounting set is designed for round profiles with a diameter of 14 mm. This provides a defined mechanical interface for suitable machine structures. The cylindrical mounting arrangement allows the sensor bracket to be integrated into compact machine frames. The profile-based mounting approach can simplify installation where flat mounting surfaces are unavailable. It provides an alternative to conventional panel mounting.
The holder is manufactured from stainless steel 1.4301 / 304, while the clamping cylinder uses stainless steel 1.4408. These materials provide good mechanical strength and corrosion resistance. The stainless-steel construction is suitable for industrial and mobile machinery environments. The complete mounting set weighs approximately 136.75 g. The durable construction helps maintain the radar sensor securely during operation.

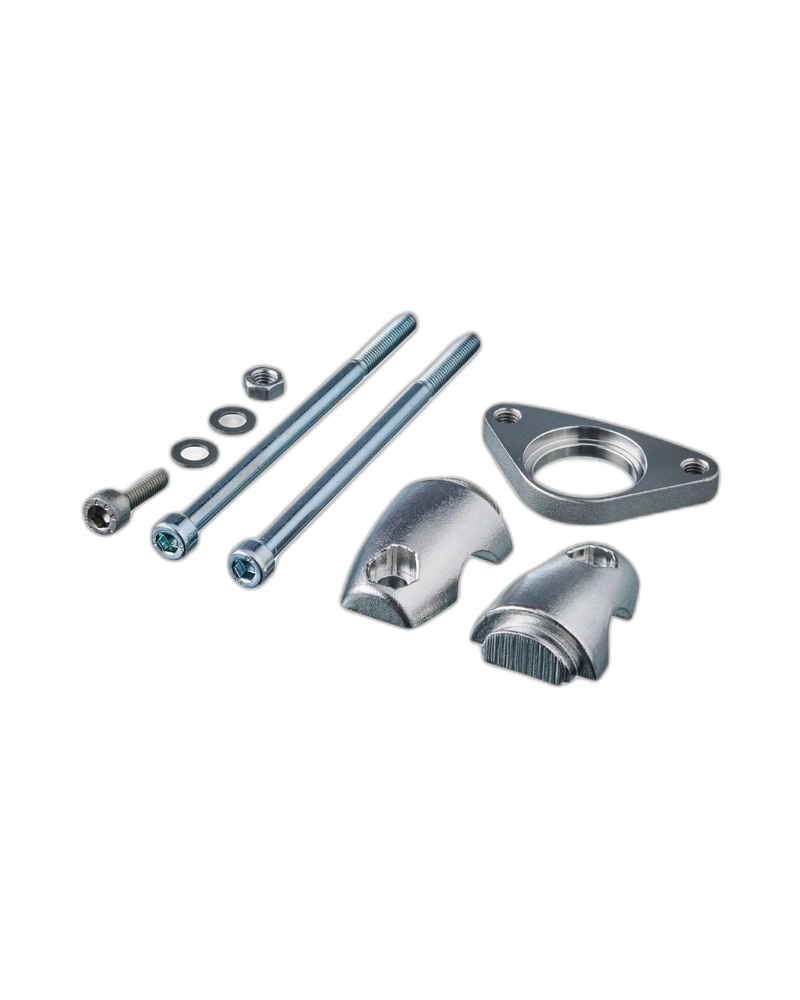

The E23011 set includes two M5 × 90 mm cylinder screws manufactured according to ISO 4762 and two washers. The supplied hardware simplifies installation and provides a complete mounting solution. Users do not need to source the basic fastening components separately. The compact set can be integrated into radar sensor installations during machine assembly or retrofitting. It is supplied as one complete mounting unit.
Radar sensor mounting set
Cylindrical mounting design
For round profiles
14 mm profile diameter
Stainless steel 304 holder
Stainless steel clamping cylinder
Compact mounting arrangement
Weight approximately 136.75 g
2 × M5 × 90 mm cylinder screws
ISO 4762 screws
2 washers supplied
Pack quantity 1 pc
Radar sensor mounting
Mobile machinery
Industrial automation
Machine frames
Round profile mounting
Object detection
Vehicle detection
Material handling
Machine monitoring
Automation equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E23011 |
| Product Type | Mounting Set |
| Designation | MOUNTING SET RADAR |
| Application | Radar sensor mounting |
| Mounting Design | Cylindrical mounting |
| Compatible Profile | Round profile |
| Profile Diameter | Ø14 mm |
| Mounting Type | Clamp mounting |
| Holder Material | Stainless steel 1.4301 / 304 |
| Clamping Cylinder Material | Stainless steel 1.4408 |
| Weight | 136.75 g |
| Supplied Screws | 2 × M5 × 90 mm |
| Screw Standard | ISO 4762 |
| Supplied Washers | 2 |
| Pack Quantity | 1 pc |
