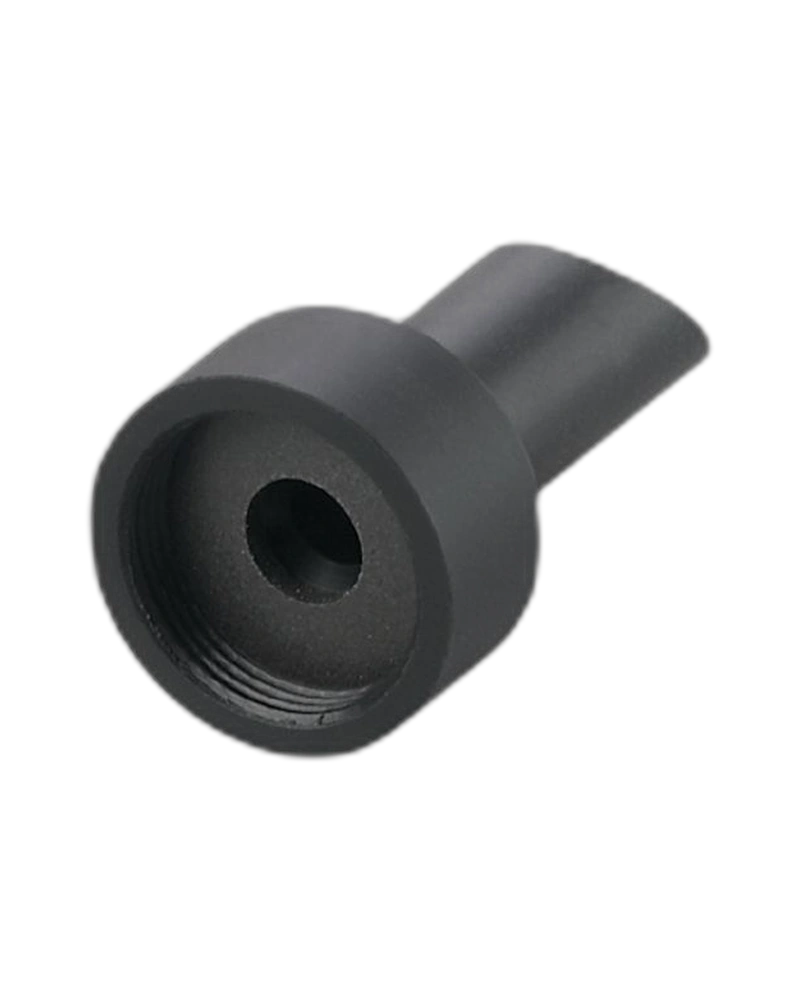

IFM E23007 is a sound tube designed for focusing the ultrasonic beam of compatible IFM ultrasonic sensors. It is suitable for ultrasonic sensors with an M30 thread and a maximum sensing range of 3.5 m. The sound tube can help create a more controlled acoustic detection area around the sensor. Its POM construction provides a lightweight and durable solution for industrial installations. It also provides additional protection for the sensor diaphragm.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E23007 is designed to focus the sound beam generated by compatible ultrasonic sensors. By guiding the acoustic energy through the tube, the sensing area can become more controlled compared with an unrestricted sensor beam. This can be useful when surrounding machine components or objects may interfere with the sensing field. The accessory supports more controlled ultrasonic detection. It provides a simple way to modify the acoustic characteristics of a compatible sensor.
The sound tube is designed for IFM ultrasonic sensors using an M30 thread and having a maximum sensing range of 3.5 m. This makes it suitable for larger ultrasonic sensor designs. The threaded mounting arrangement allows the tube to be installed directly with compatible sensors. The defined sensor compatibility simplifies product selection. It can be used as part of an ultrasonic sensing installation in industrial machinery.
In addition to focusing the sound beam, E23007 provides increased protection for the ultrasonic sensor diaphragm. The tube creates a physical extension around the sensing area. This can help reduce exposure of the diaphragm to accidental contact or nearby mechanical interference. The additional protection is useful in industrial machinery where sensors may be positioned near moving components. It therefore combines acoustic and mechanical functions in one accessory.
The sound tube is manufactured from POM and weighs approximately 24.5 g. POM provides a lightweight engineering-plastic construction suitable for industrial sensor accessories. The low weight reduces the additional mechanical load on the sensor mounting arrangement. The accessory is supplied with a sealing ring for the intended installation. Its simple construction supports quick integration into compatible sensor systems.
Sound tube for ultrasonic sensors
Designed for M30 threaded sensors
Suitable for sensors with maximum 3.5 m range
Focuses ultrasonic sound beam
Improves acoustic beam control
Provides additional diaphragm protection
POM construction
Weight approximately 24.5 g
Includes sealing ring
Compact sensor accessory
Suitable for industrial automation
Pack quantity 1 pc
Ultrasonic object detection
Distance measurement
Industrial automation
Machine monitoring
Material handling
Conveyor systems
Level detection
Presence detection
Factory automation
Restricted-area sensing
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E23007 |
| Product Type | Sound Tube |
| Designation | SOUND TUBE M30 |
| Application | Ultrasonic sensor accessory |
| Compatible Sensor Thread | M30 |
| Maximum Sensor Range | 3.5 m |
| Function | Sound beam focusing |
| Additional Function | Sensor diaphragm protection |
| Material | POM |
| Sealing | Sealing ring |
| Weight | 24.5 g |
| Installation | Threaded sensor mounting |
| Application Type | Ultrasonic sensing |
| Pack Quantity | 1 pc |
