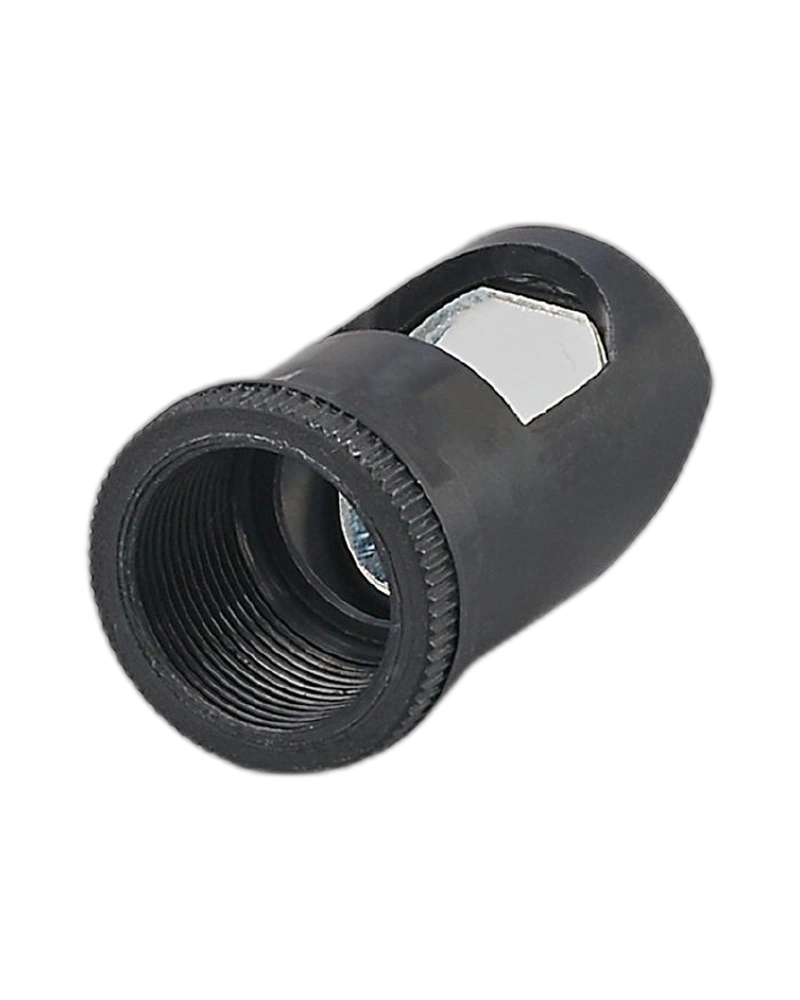

IFM E23006 is a compact sound deflector designed for IFM ultrasonic sensors with an M18 thread. It is intended for installations where the sensor cannot be positioned directly toward the required detection area. The accessory redirects the ultrasonic sound path to provide greater flexibility during sensor installation. Its lightweight ABS construction and glass deflection mirror make it suitable for industrial automation systems. The compact design is particularly useful in restricted machine spaces.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
IFM E23006 is designed to redirect the ultrasonic sound beam from compatible ultrasonic sensors. This allows the sensing direction to be changed without requiring the complete sensor assembly to be repositioned. The arrangement is useful when machine structures, panels or mechanical components restrict direct sensor installation. It provides additional flexibility when designing ultrasonic detection systems. This makes the accessory suitable for industrial machines with challenging installation conditions.
The E23006 is designed for IFM ultrasonic sensors with an M18 thread. It is also suitable for UG and UG Cube sensor designs. The compatible threaded interface allows the accessory to be integrated directly with the intended sensor family. This provides a simple mechanical solution for changing the acoustic direction. The defined compatibility helps users select the correct accessory for their ultrasonic sensing system.
The sound deflector has a lightweight construction with an ABS housing and glass deflection mirror. Its total weight is approximately 8.3 g, making it a low-load accessory for sensor assemblies. The compact construction is suitable for machine installations where space and component weight are important considerations. The glass mirror provides the reflecting surface required to redirect the ultrasonic signal. The overall construction is designed for practical industrial use.
E23006 is particularly useful in confined installation environments. Instead of moving the complete ultrasonic sensor to achieve the required sensing direction, the deflector can redirect the sound path. This can simplify machine design and sensor positioning. It is useful for equipment where mechanical access around the sensing point is limited. The accessory therefore provides an additional installation option for ultrasonic automation systems.
Ultrasonic sound deflector
Designed for M18 ultrasonic sensors
Compatible with UG and UG Cube sensor types
Redirects ultrasonic sound beam
ABS housing
Glass deflection mirror
Lightweight 8.3 g construction
Compact installation design
Suitable for restricted mounting spaces
Simple sensor accessory
Industrial automation compatible
Pack quantity 1 pc
Ultrasonic sensor installation
Restricted-space sensing
Object detection
Distance measurement
Machine automation
Conveyor systems
Material handling
Industrial automation
Robotic equipment
Automation machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E23006 |
| Product Type | Sound Deflector |
| Designation | BEAM DEFLECTOR M18 |
| Application | Ultrasonic sensor accessory |
| Compatible Sensor Types | UG, UG Cube |
| Compatible Thread | M18 |
| Function | Ultrasonic beam deflection |
| Housing Material | ABS |
| Deflection Mirror Material | Glass |
| Weight | 8.3 g |
| Installation | Sensor-mounted |
| Application Environment | Industrial automation |
| Pack Quantity | 1 pc |
