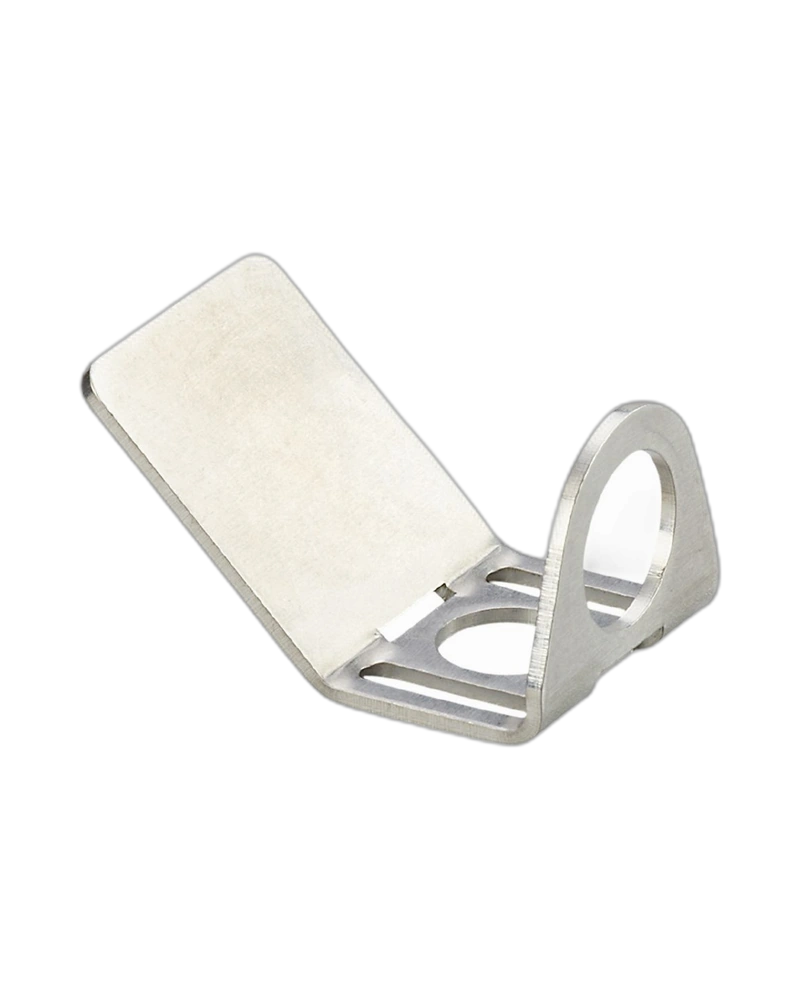

IFM E23001 is a sound deflector designed for IFM ultrasonic sensors with a sensing range of up to 1.2 m. It is designed for use with UG and UG Cube sensor types. The component redirects the ultrasonic sound path to support sensing arrangements where direct sensor orientation is difficult. Its stainless-steel construction provides a robust solution for industrial applications. The sound deflector weighs approximately 38.5 g and is supplied as one piece.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E23001 is designed to deflect the ultrasonic beam from compatible IFM sensors. This allows the direction of ultrasonic sensing to be changed without repositioning the complete sensor assembly. Such an arrangement can be useful when machine geometry prevents direct sensor alignment. The deflector provides additional flexibility when designing ultrasonic sensing systems. It is particularly useful in compact or mechanically restricted installations.
The sound deflector is designed for UG and UG Cube sensor types. It is intended for ultrasonic sensors with a range of approximately 1.2 m. This defined application ensures that the accessory can be selected according to the sensor range. The component provides a dedicated accessory solution for compatible IFM ultrasonic sensors. It can therefore be integrated into existing industrial ultrasonic sensing systems.
E23001 is manufactured from stainless steel 304 / 1.4301. This material provides good mechanical durability and corrosion resistance for industrial applications. The stainless-steel construction helps the accessory withstand normal mechanical and environmental conditions encountered in automation machinery. The component weighs approximately 38.5 g. This provides a durable solution without adding excessive weight to the sensor assembly.
The sound deflector provides additional flexibility when positioning an ultrasonic sensor. It can help redirect the sensing direction toward a target while allowing the main sensor body to remain in a convenient mounting position. This is useful in machines with restricted access or complex mechanical layouts. The accessory can simplify sensor installation in applications where direct alignment is difficult. It provides an additional mechanical option for ultrasonic sensing design.
Sound deflector for ultrasonic sensors
Beam deflection function
Designed for UG sensors
Designed for UG Cube sensors
Suitable for sensor ranges up to 1.2 m
Stainless steel 304 construction
Material grade 1.4301
Weight approximately 38.5 g
Supports flexible sensor positioning
Suitable for industrial automation
Compact ultrasonic accessory
Pack quantity 1 pc
Ultrasonic object detection
Distance measurement
Machine automation
Material handling
Conveyor systems
Level detection
Industrial sensing
Restricted-space sensing
Robotic machinery
Automation equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E23001 |
| Product Type | Sound Deflector |
| Designation | BEAM DEFLECTOR UG RANGE 1.2m |
| Application | Ultrasonic sensor accessory |
| Compatible Sensor Types | UG, UG Cube |
| Compatible Sensor Range | 1.2 m |
| Function | Ultrasonic beam deflection |
| Material | Stainless steel |
| Material Grade | 304 / 1.4301 |
| Weight | 38.5 g |
| Installation | Sensor-mounted accessory |
| Application Type | Ultrasonic sensing |
| Pack Quantity | 1 pc |
