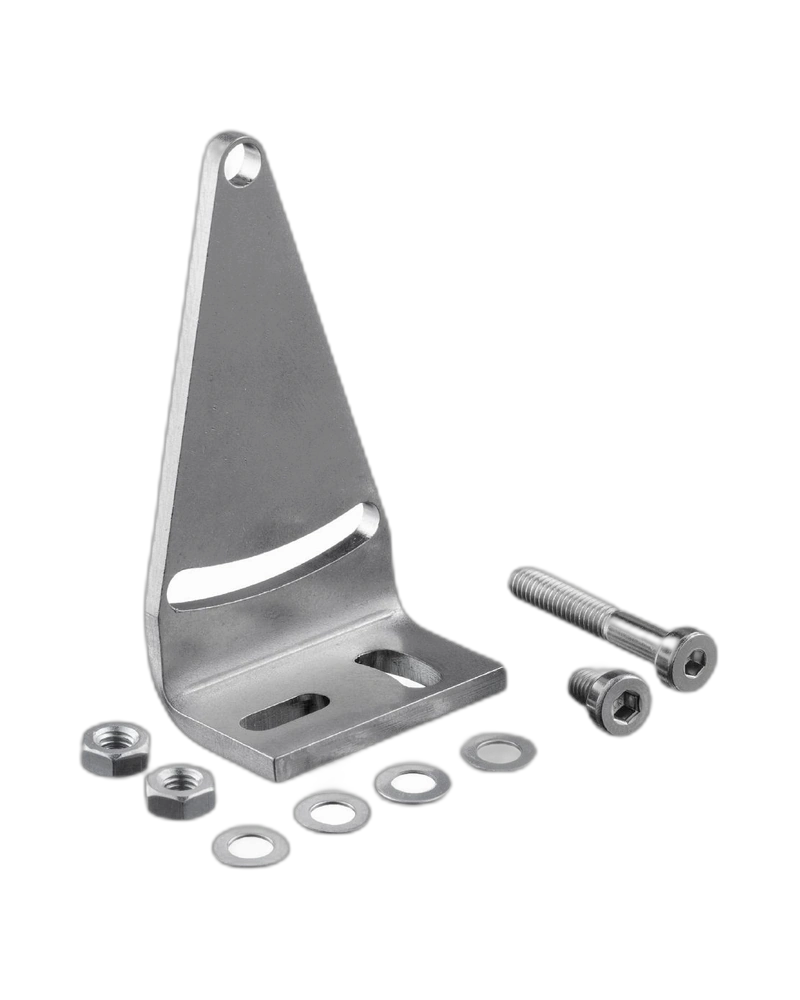

IFM E21336 is an angle bracket designed for mounting IFM OMH high-accuracy laser sensors. It provides a simple and robust mounting solution for free-standing sensor installation. The bracket is manufactured from stainless-steel sheet for durability in industrial environments. Its dimensions are approximately 60 × 30 × 21 mm with a weight of 46.3 g. The supplied screws, nuts and washers allow convenient installation of compatible OMH sensors.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21336 is specifically designed for use with IFM OMH sensor types. The bracket provides a stable mechanical support structure for positioning the sensor. It is particularly suitable for free-standing mounting arrangements. The mounting design helps keep the sensor securely positioned during machine operation. This makes it useful for precise measurement and inspection applications using OMH sensors.
The bracket is manufactured from stainless-steel sheet using material grade 1.4305 / 303. Stainless steel provides mechanical strength and corrosion resistance suitable for industrial environments. The robust design allows the bracket to withstand normal mechanical stresses associated with machine installation. It provides a long-lasting mounting platform for compatible sensors. The construction is intended for dependable use in demanding automation environments.
The E21336 has dimensions of approximately 60 × 30 × 21 mm and weighs 46.3 g. Its compact dimensions make it suitable for mounting sensors without excessive space requirements. The bracket provides a stable mounting surface while keeping the overall assembly relatively compact. This is useful for machine builders working with limited installation space. Its dimensions support practical integration into industrial sensor assemblies.
The bracket is supplied with multiple screws, nuts and washers. It includes two M4 × 38 mm cylinder screws, two M4 nuts, six washers for M4 screws and two M4 × 9 mm cylinder screws. The supplied hardware simplifies the installation process. It also provides the required components for securely attaching the bracket and compatible OMH sensor. This makes E21336 a convenient ready-to-install mounting accessory.
Designed for OMH sensor types
Standard angle bracket
Free-standing mounting
Stainless-steel sheet construction
Material 1.4305 / 303
Robust industrial design
Dimensions 60 × 30 × 21 mm
Weight 46.3 g
2 × M4 × 38 mm cylinder screws
2 × M4 nuts
6 × washers for M4 screws
2 × M4 × 9 mm cylinder screws
OMH laser sensor mounting
Precision measurement systems
Industrial inspection
Position measurement
Quality control equipment
Machine automation
Assembly machinery
Robotic systems
Error-proofing applications
Industrial sensor installation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21336 |
| Product Type | Angle Bracket |
| Designation | OMH STANDARD BRACKET |
| Compatible Sensors | OMH types |
| Application | Free-standing sensor mounting |
| Material | Stainless-steel sheet |
| Material Grade | 1.4305 / 303 |
| Weight | 46.3 g |
| Dimensions | 60 × 30 × 21 mm |
| Supplied Screws | 2 × M4 × 38 mm cylinder screws |
| Supplied Nuts | 2 × M4 nuts |
| Supplied Washers | 6 × washers for M4 screws |
| Additional Screws | 2 × M4 × 9 mm cylinder screws |
| Mounting Type | Angle bracket |
| Installation | Free-standing |
| Pack Quantity | 1 pc |
