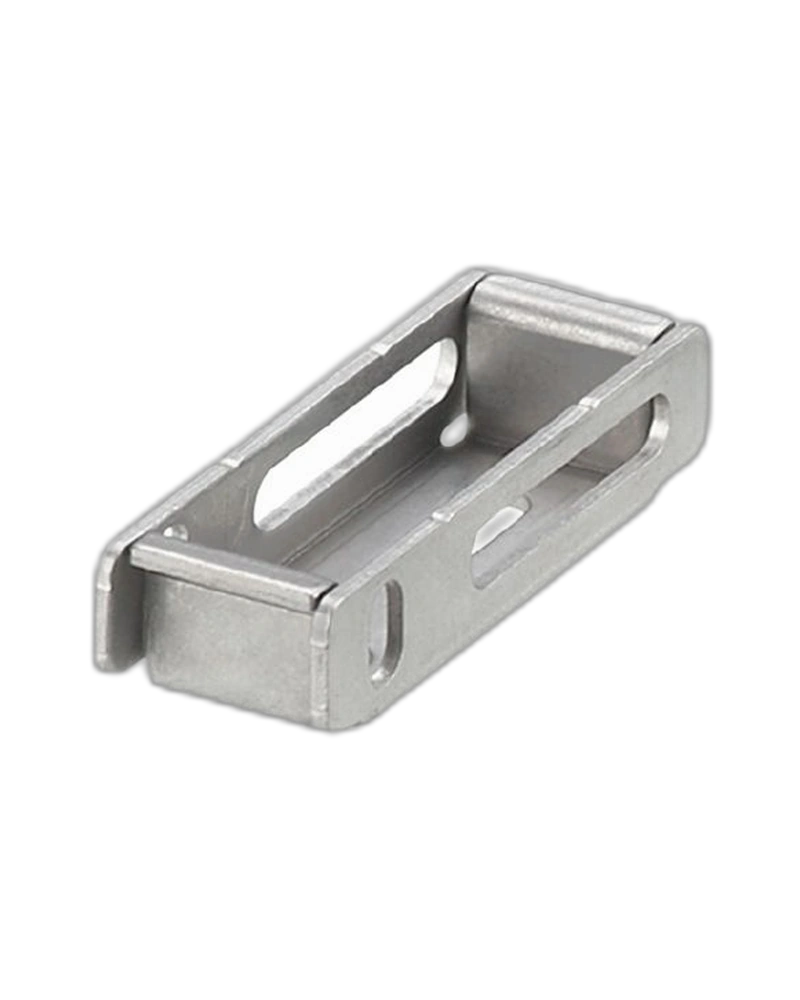

IFM E21328 is a compact angle bracket designed specifically for mounting OCF fibre optic amplifiers. Its stainless-steel construction provides a durable mounting solution for industrial automation installations. The bracket has compact dimensions of 8.5 × 36.6 × 12.4 mm. It is supplied with stainless-steel screws, spring washers and M3 nuts for convenient installation. The compact design allows the OCF amplifier to be securely mounted in restricted machine spaces.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21328 is designed specifically for mounting IFM OCF fibre optic amplifiers. It provides a dedicated mechanical mounting arrangement for securing the amplifier within automation equipment. The bracket helps maintain the amplifier in a fixed position during machine operation. This can simplify installation where direct mounting or DIN rail mounting is not preferred. It is therefore a practical accessory for OCF-based fibre optic sensing systems.
The bracket has dimensions of approximately 8.5 × 36.6 × 12.4 mm. Its compact profile helps minimise the space required for mounting. This is beneficial in machines where cabinet and component space is limited. The angle configuration allows the OCF amplifier to be positioned conveniently relative to the mounting surface. The design supports flexible installation in industrial automation equipment.
The E21328 is manufactured from stainless steel 304 / 1.4301. This material provides good mechanical strength and corrosion resistance for industrial mounting applications. The bracket weighs approximately 14.1 g, making it lightweight while maintaining a robust structure. Stainless-steel hardware is also supplied with the bracket. This provides a durable mounting arrangement for continuous industrial use.
The bracket is supplied with two M3 × 20 mm stainless-steel socket head screws. It also includes two stainless-steel spring washers and two M3 stainless-steel hexagon nuts. This supplied hardware simplifies installation and reduces the need to source additional fasteners. The complete arrangement helps ensure secure mounting of compatible OCF equipment. The pack is supplied as one complete mounting accessory.
Designed for OCF types
Compact angle bracket
Stainless steel 304 construction
Dimensions 8.5 × 36.6 × 12.4 mm
Lightweight 14.1 g design
Secure amplifier mounting
2 × M3 × 20 mm socket head screws
2 × stainless-steel spring washers
2 × M3 stainless-steel nuts
Compact machine installation
Industrial mounting solution
Pack quantity 1 pc
OCF amplifier mounting
Fibre optic sensor systems
Industrial automation
Machine control panels
Automation cabinets
Photoelectric sensing systems
Production machinery
Factory automation
Robotic equipment
Sensor installation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21328 |
| Product Type | Angle Bracket |
| Designation | SIDE MOUNT BRACKET OCF |
| Compatible Product | OCF fibre optic amplifier |
| Application | Mounting accessories |
| Material | Stainless steel 304 / 1.4301 |
| Weight | 14.1 g |
| Dimensions | 8.5 × 36.6 × 12.4 mm |
| Supplied Screws | 2 × M3 × 20 mm socket head screws |
| Screw Material | Stainless steel |
| Supplied Washers | 2 × spring washers |
| Washer Material | Stainless steel |
| Supplied Nuts | 2 × M3 hexagon nuts |
| Nut Material | Stainless steel |
| Mounting Type | Side mounting |
| Pack Quantity | 1 pc |
