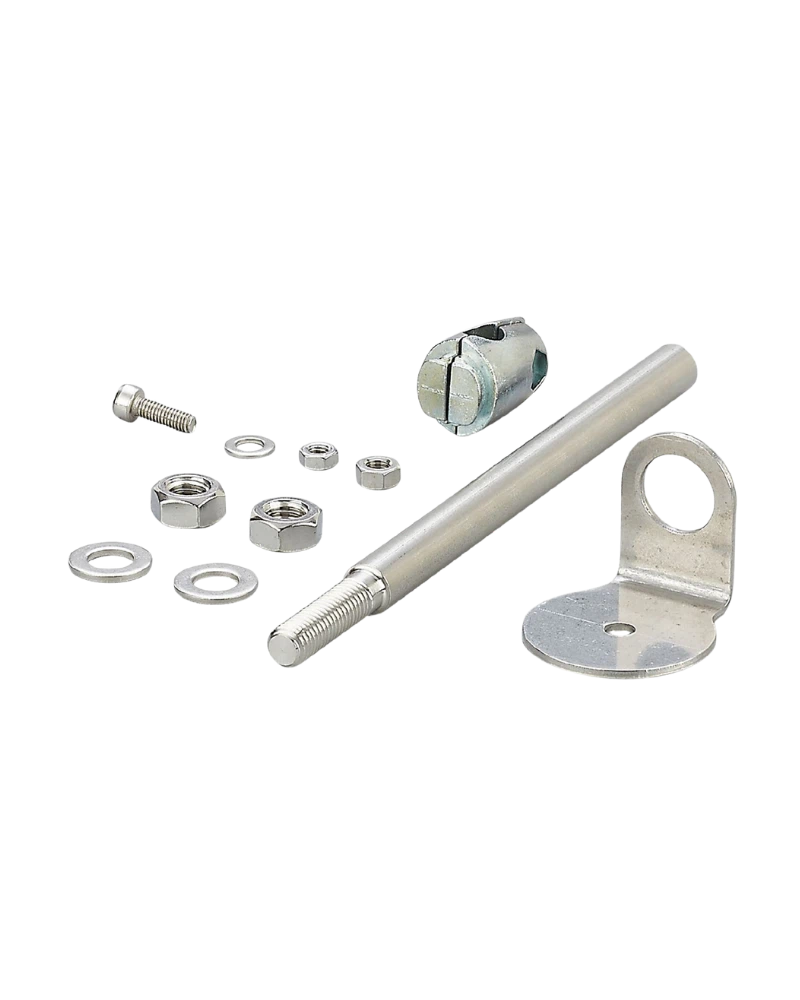

IFM E21301 is a mounting set designed for clamp mounting of reflectors with a 35 mm diameter mounting arrangement. It provides flexible positioning of the reflector through a rod-mounted mechanical design. The set includes a 125 mm long stainless-steel mounting rod with a 10 mm diameter. Its fixture is manufactured from stainless steel while the clamp uses die-cast zinc. The design supports quick and convenient reflector installation in industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21301 provides a mechanical mounting arrangement that allows reflector positioning to be adjusted according to the sensing requirement. The clamp mounting design supports movement in multiple directions. This allows users to align the reflector accurately with a compatible photoelectric sensor. Flexible positioning is useful during machine commissioning and sensor alignment. The arrangement can also simplify future maintenance and adjustment operations.
The mounting set uses a 125 mm long mounting rod with a diameter of 10 mm. The rod incorporates an M8 thread arrangement with a specified 25 mm thread dimension. This provides a stable mechanical interface for the reflector mounting assembly. Rod-based mounting allows the reflector to be positioned away from the primary machine mounting surface. It is suitable for industrial equipment where flexible mounting geometry is required.
The fixture is made from stainless steel 316Ti / 1.4571 and the clamp is made from die-cast zinc. These materials provide a robust mechanical arrangement for industrial environments. The stainless-steel components provide good durability and corrosion resistance. The die-cast clamp provides the mechanical clamping function required to hold the reflector assembly. The complete set weighs 169 g and is supplied as one mounting unit.
Complete reflector mounting set
Clamp mounting design
Flexible reflector positioning
125 mm mounting rod
10 mm diameter mounting rod
M8 thread arrangement
Stainless steel fixture
Die-cast zinc clamp
Retro-reflective sensor systems
Reflector installation
Photoelectric detection systems
Conveyor automation
Material handling equipment
Industrial automation machinery
Machine vision and sensing installations
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21301 |
| Product Type | Mounting Set for Reflectors |
| Product Designation | SYSTEM COMPONENT REFL BOLT |
| Mounting Design | Clamp mounting |
| Reflector Compatibility | Reflector Ø35 mm |
| Mounting Type | Mounting rod |
| Mounting Rod Length | 125 mm |
| Mounting Rod Diameter | 10 mm |
| Thread Type | M8 |
| Thread Dimension | 25 mm |
| Fixture Material | Stainless steel |
| Fixture Material Grade | 316Ti / 1.4571 |
| Clamp Material | Die-cast zinc |
| Mounting Rod Material | Stainless steel |
| Mounting Rod Material Grade | 316L / 1.4404 |
| Weight | 169 g |
| Position Adjustment | Free movement in all directions |
| Pack Quantity | 1 pc |
| Product Category | Mounting accessories and fixing technology |
| Accessory Group | Mounting sets |
