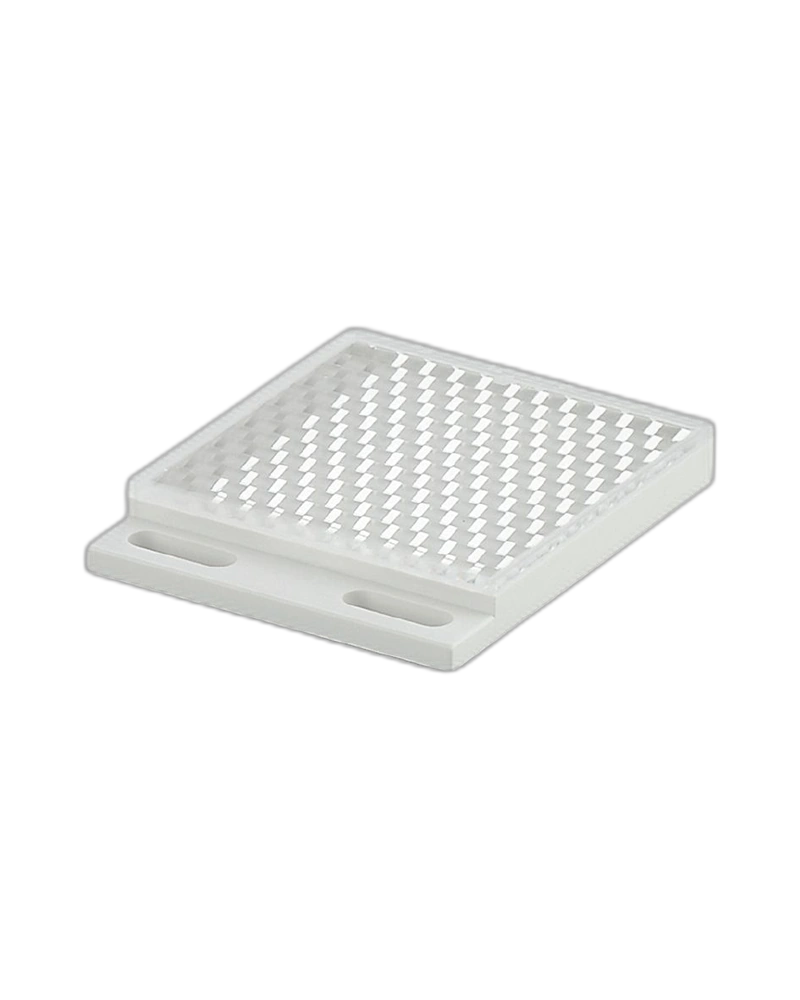

IFM E21299 is a rectangular reflector designed for reliable operation of retro-reflective photoelectric sensors. The reflector provides a 48 x 48 mm reflective surface and is suitable for red-light and infrared-light sensing systems. Its front panel is manufactured from PMMA with an ABS base carrier. The compact 61 x 51.5 x 8 mm design supports straightforward machine installation. It is supplied as a single reflector for industrial sensor applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21299 is designed to work with retro-reflective photoelectric sensors using red or infrared light. The reflector provides a defined reflective target for the sensor beam. This enables reliable interruption and return of the optical signal during object detection. The rectangular design makes it suitable for standard industrial sensing arrangements. It can be integrated into machines, conveyors and automated handling equipment.
The reflector has a 48 x 48 mm reflective surface within an overall dimension of 61 x 51.5 x 8 mm. This provides a practical target area for compatible retro-reflective sensor systems. The compact dimensions allow the reflector to be installed without occupying excessive machine space. Its geometry is suitable for fixed mounting in industrial detection applications. The design provides a consistent optical target for sensor alignment.
The front panel is manufactured from PMMA while the base carrier uses ABS. This combination provides a lightweight construction suitable for industrial sensor accessories. The reflector weighs only 17.8 g, making it easy to handle during installation and maintenance. Its compact structure supports convenient positioning on machine frames or equipment. The specified operating temperature range is -10 to 60°C.
Designed for retro-reflective sensors
48 x 48 mm reflector surface
Suitable for red light
Suitable for infrared light
PMMA front panel
ABS base carrier
Compact and lightweight design
Simple two-screw mounting concept
Retro-reflective object detection
Conveyor automation
Packaging machinery
Material handling systems
Industrial automation
Presence detection
Machine safety-related sensing arrangements
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21299 |
| Product Type | Reflector for Retro-Reflective Sensors |
| Product Designation | REFLECTOR TS-48X48 |
| Reflector Type | Rectangular reflector |
| Sensor Type | Retro-reflective sensors |
| Compatible Light | Red light |
| Compatible Light | Infrared light |
| Reflector Surface | 48 x 48 mm |
| Overall Dimensions | 61 x 51.5 x 8 mm |
| Weight | 17.8 g |
| Front Panel Material | PMMA |
| Base Carrier Material | ABS |
| Operating Temperature | -10...60°C |
| Mounting | Screw mounting |
| Pack Quantity | 1 pc |
| Product Category | Reflectors, fibre optics and optics |
| Accessory Group | Reflectors |
