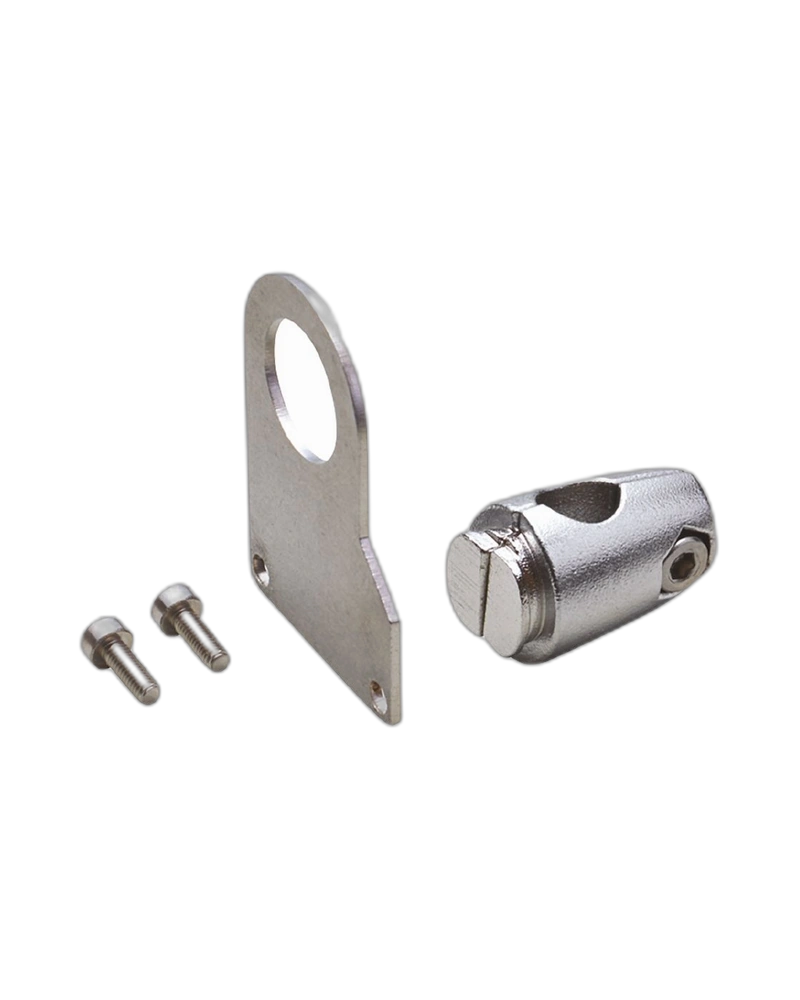

The IFM E21272 is a mounting set designed for O6 photoelectric sensors using clamp mounting on a 10 mm diameter rod. It provides a complete mechanical arrangement consisting of a stainless-steel fixture, clamp and fastening hardware. The mounting system allows the sensor to be positioned conveniently along the rod according to the machine layout. It includes cylinder screws, a clamp, a head-cap screw and an M4 nut. The compact approximately 48 g assembly provides a robust solution for industrial sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21272 is designed specifically for O6 sensor installations requiring rod-based clamp mounting. The clamp arrangement allows the sensor position to be adjusted during machine installation. This makes it useful for applications where the sensing position must be aligned precisely. The mounting system provides stable mechanical support once tightened. It is suitable for continuous industrial automation operation.
The mounting set is designed for a round mounting rod with a diameter of 10 mm. This provides a practical support structure for O6 sensors in compact machinery. The rod-mounted arrangement allows flexible positioning without requiring a dedicated machine mounting surface. The clamp and bracket provide a secure connection between the sensor and rod. This makes the accessory suitable for modular sensor mounting arrangements.
The mounting fixture is manufactured from stainless steel V4A / 1.4571, providing durable mechanical performance. The complete set weighs approximately 48 g. Supplied hardware includes two cylinder screws, a clamp, a head-cap screw and an M4 nut. The compact design provides a practical combination of adjustability and mechanical strength.
Designed for O6 sensors
Clamp mounting
10 mm rod mounting
Stainless steel construction
V4A / 1.4571 material
Adjustable sensor positioning
Complete mounting hardware
Compact design
Lightweight assembly
O6 photoelectric sensors
Rod-mounted sensing
Industrial automation
Machine-building
Factory automation
Sensor positioning
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21272 |
| Product Type | Mounting Set |
| Order Code | E21272 |
| Product Name | O6 CLAMP BRACKET |
| Compatible Sensor | O6 sensors |
| Mounting Type | Clamp mounting |
| Mounting Rod | Round rod |
| Mounting Rod Diameter | Ø10 mm |
| Material | Stainless steel V4A / 1.4571 |
| Fixture Dimensions | Approx. 30.8 × 3 × 48.4 mm |
| Supplied Cylinder Screws | 2 |
| Clamp | 1 |
| Supplied Head Cap Screw | 1 |
| Supplied Nut | 1 × M4 |
| Mechanical Function | Sensor mounting |
| Position Adjustment | Adjustable on rod |
| Weight | Approx. 48 g |
| Application | Industrial automation |
| Construction | Stainless steel |
| Installation | Rod clamp mounting |
| Pack Quantity | 1 piece |
