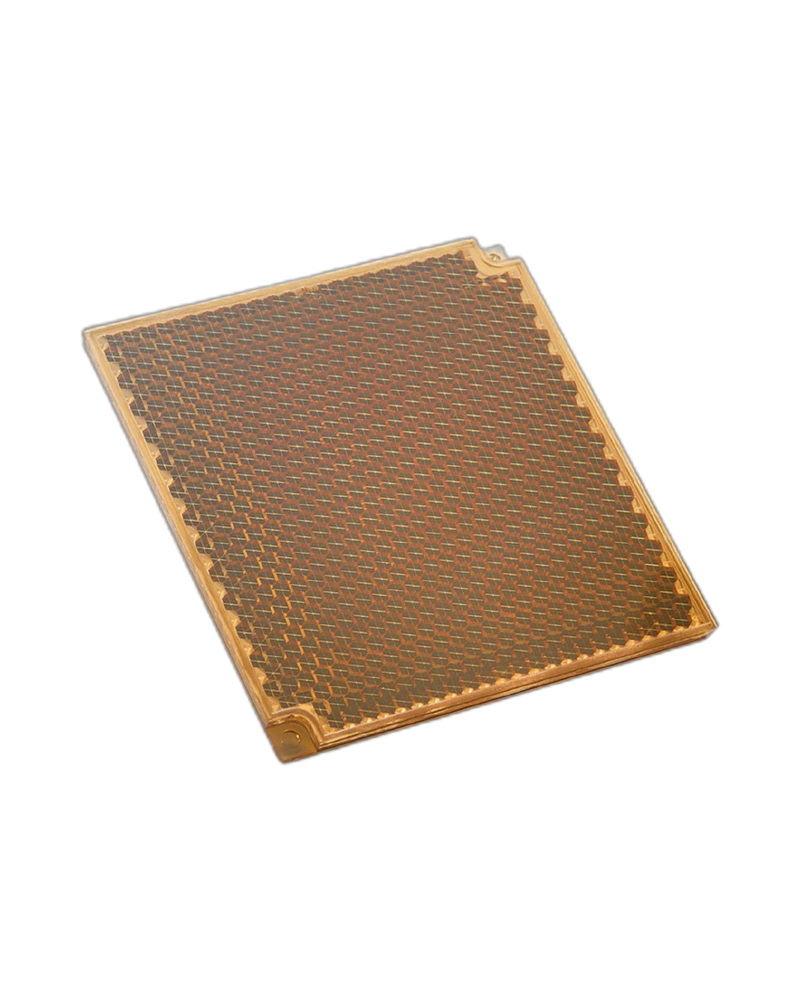

The IFM E21270 is a large-format prismatic reflector designed for retro-reflective photoelectric sensors in hygienic and wet industrial environments. It provides a 96 × 96 mm reflector surface for applications requiring a large and clearly defined reflective target. The reflector is manufactured from Solidchem material and has overall dimensions of approximately 100 × 100 × 9.5 mm. It supports red-light and infrared-light retro-reflective sensors and operates across an ambient temperature range of -20 to +140 °C. Its large reflective area makes it suitable for demanding object-detection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21270 provides a 96 × 96 mm reflective surface, making it suitable where a large optical target is preferred. The large surface can simplify reflector alignment during sensor installation. Its prismatic design is intended for compatible retro-reflective photoelectric sensors. The rectangular construction provides a stable and practical reflective target. It is suitable for larger machinery and production-line sensing applications.
The reflector is designed for hygienic and wet areas in the food industry. Its Solidchem construction provides a robust material solution for demanding environments. The product is suitable for applications where moisture, cleaning processes and elevated temperatures may be present. The reflector supports both red and infrared light. It provides a reliable accessory for industrial photoelectric sensing systems.
The E21270 supports an ambient temperature range of -20 to +140 °C. This allows it to be used in demanding industrial environments where standard reflectors may not be appropriate. The 100 × 100 × 9.5 mm overall dimensions provide a large but compact reflector assembly. Its weight is approximately 73.1 g. The product is supplied as one piece.
96 × 96 mm reflector surface
Large optical target
Solidchem construction
Red-light compatibility
Infrared-light compatibility
Hygienic-area suitability
Wet-area suitability
High-temperature operation
Prismatic reflector design
Food-processing machinery
Large object detection
Retro-reflective sensors
Conveyor systems
Packaging machinery
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21270 |
| Product Type | Prismatic Reflector |
| Order Code | E21270 |
| Product Name | REFLECTOR TS-96X96 SC |
| Design | Rectangular |
| Reflector Surface | 96 × 96 mm |
| Overall Dimensions | 100 × 100 × 9.5 mm |
| Material | Solidchem |
| Compatible Sensors | Retro-reflective sensors |
| Compatible Light | Red light |
| Compatible Light | Infrared light |
| Application Area | Hygienic and wet areas |
| Industry | Food industry |
| Ambient Temperature | -20 to +140 °C |
| Reflector Type | Prismatic |
| Weight | Approx. 73.1 g |
| Mounting | Reflector mounting |
| Mechanical Function | Optical reflection target |
| Pack Quantity | 1 piece |
