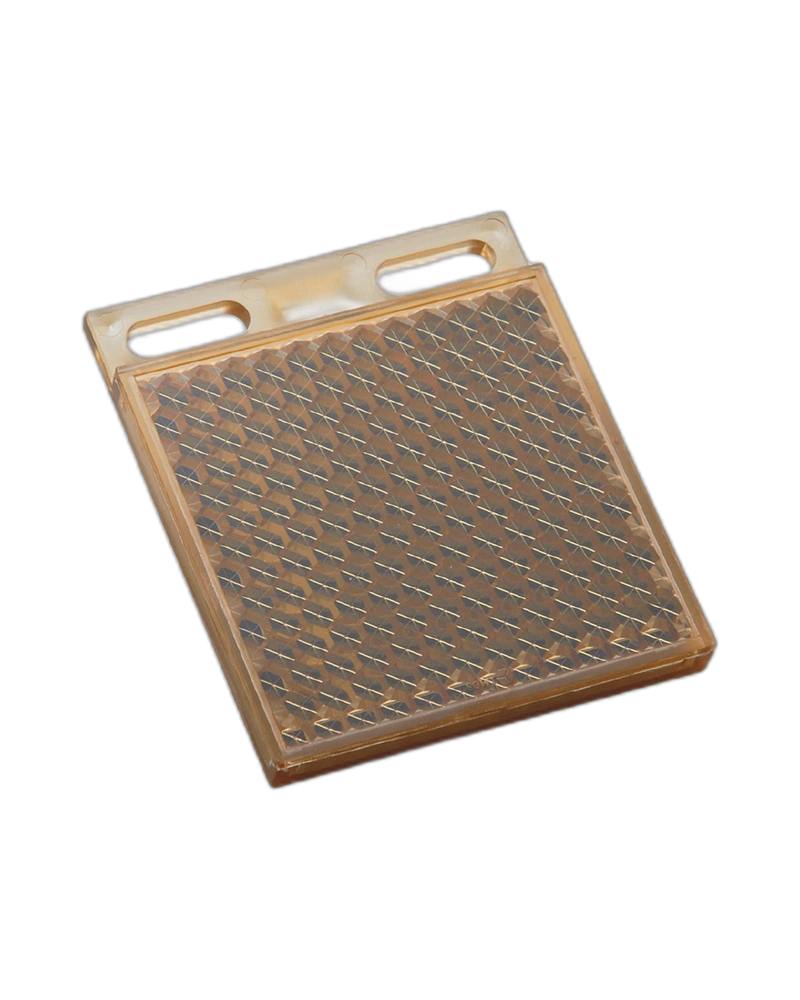

The IFM E21269 is a prismatic reflector designed for reliable operation with compatible retro-reflective photoelectric sensors. It provides a 48 × 48 mm reflective surface and is suitable for red-light and infrared-light sensing systems. The reflector uses Solidchem material and is designed for hygienic and wet areas in the food industry. Its overall dimensions are approximately 61 × 51.5 × 8 mm with a weight of approximately 17.5 g. The product supports demanding temperature conditions from -20 to +140 °C.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21269 provides a 48 × 48 mm reflective surface for compatible retro-reflective sensors. Its prismatic construction provides a dedicated optical target for object detection applications. The reflector supports both red-light and infrared-light sensing. The rectangular design provides convenient integration into industrial equipment. It is suitable for continuous use in automated production systems.
The reflector is designed for hygienic and wet areas in food-processing applications. Its Solidchem material is suitable for demanding environmental conditions. The component is designed to withstand ambient temperatures from -20 to +140 °C. This makes it suitable for applications where both moisture and elevated temperatures can occur. The robust construction supports reliable sensor operation in demanding production areas.
The E21269 has overall dimensions of approximately 61 × 51.5 × 8 mm. Its 48 × 48 mm reflective surface provides a substantial optical target while keeping the component compact. The weight is approximately 17.5 g. The reflector is supplied as one piece for straightforward installation. Its design is suitable for industrial photoelectric sensor systems.
48 × 48 mm reflector surface
Solidchem construction
Red-light compatibility
Infrared-light compatibility
Hygienic-area suitability
Wet-area suitability
High-temperature capability
Rectangular design
Prismatic reflector
Food-processing machinery
Hygienic automation
Retro-reflective sensing
Object detection
Conveyor systems
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21269 |
| Product Type | Prismatic Reflector |
| Order Code | E21269 |
| Product Name | REFLECTOR TS-48X48 SC |
| Design | Rectangular |
| Reflector Surface | 48 × 48 mm |
| Overall Dimensions | 61 × 51.5 × 8 mm |
| Material | Solidchem |
| Compatible Sensors | Red-light and infrared-light retro-reflective sensors |
| Compatible Light | Red light |
| Compatible Light | Infrared light |
| Application Area | Hygienic and wet areas |
| Industry | Food industry |
| Ambient Temperature | -20 to +140 °C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Reflector Type | Prismatic |
| Weight | Approx. 17.5 g |
| Mounting | Screw mounting |
| Pack Quantity | 1 piece |
