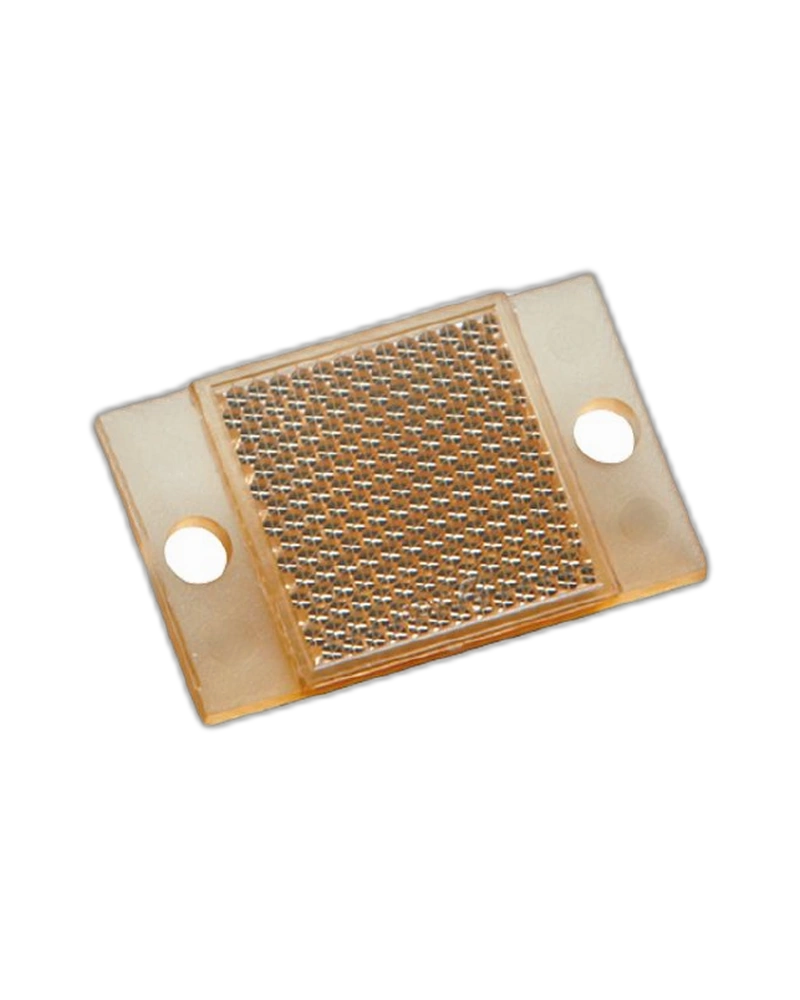

The IFM E21267 is a compact prismatic reflector designed for retro-reflective sensors used in hygienic and wet areas. It features an 18 × 18 mm reflective surface and is suitable for red-light and infrared-light photoelectric sensing. The reflector uses Solidchem material and has compact overall dimensions of 20 × 32 × 3.5 mm. It is designed for demanding food-industry environments and high-temperature applications. Its small size makes it suitable for compact sensor installations where installation space is limited.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21267 is specifically designed for hygienic and wet areas in the food industry. Its Solidchem construction supports demanding environmental conditions. The reflector provides a reliable reflective surface for compatible photoelectric sensors. It can be used with both red-light and infrared-light retro-reflective sensors. The compact structure makes it suitable for equipment where hygienic design and small installation dimensions are important.
The reflector supports an ambient temperature range of -20 to +140 °C. This makes it suitable for applications exposed to elevated temperatures. Its Solidchem material is intended for demanding industrial and food-processing environments. The reflector maintains a compact mechanical design while providing a suitable sensing target. It is useful in cleaning-intensive and temperature-demanding production environments.
The E21267 provides an 18 × 18 mm reflective surface within an overall 20 × 32 × 3.5 mm package. Its small footprint allows installation in restricted machine spaces. The prismatic reflector design provides a dedicated optical target for retro-reflective sensors. Its weight is approximately 3.5 g, making it extremely lightweight. It is supplied as one reflector unit.
18 × 18 mm reflector surface
Solidchem construction
Red-light compatibility
Infrared-light compatibility
Hygienic-area suitability
Wet-area suitability
High-temperature operation
Compact dimensions
Lightweight construction
Food-processing machinery
Hygienic automation
Wet-area sensing
Retro-reflective sensors
Object detection
Industrial photoelectric sensing
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21267 |
| Product Type | Prismatic Reflector |
| Order Code | E21267 |
| Product Name | REFLECTOR TS-18X18 SC |
| Design | Rectangular |
| Reflector Surface | 18 × 18 mm |
| Overall Dimensions | 20 × 32 × 3.5 mm |
| Material | Solidchem |
| Compatible Sensors | Retro-reflective sensors |
| Compatible Light | Red light |
| Compatible Light | Infrared light |
| Application Area | Hygienic and wet areas |
| Industry | Food industry |
| Ambient Temperature | -20 to +140 °C |
| Weight | Approx. 3.5 g |
| Mounting | Reflector mounting |
| Optical Function | Retro-reflective target |
| Pack Quantity | 1 piece |
