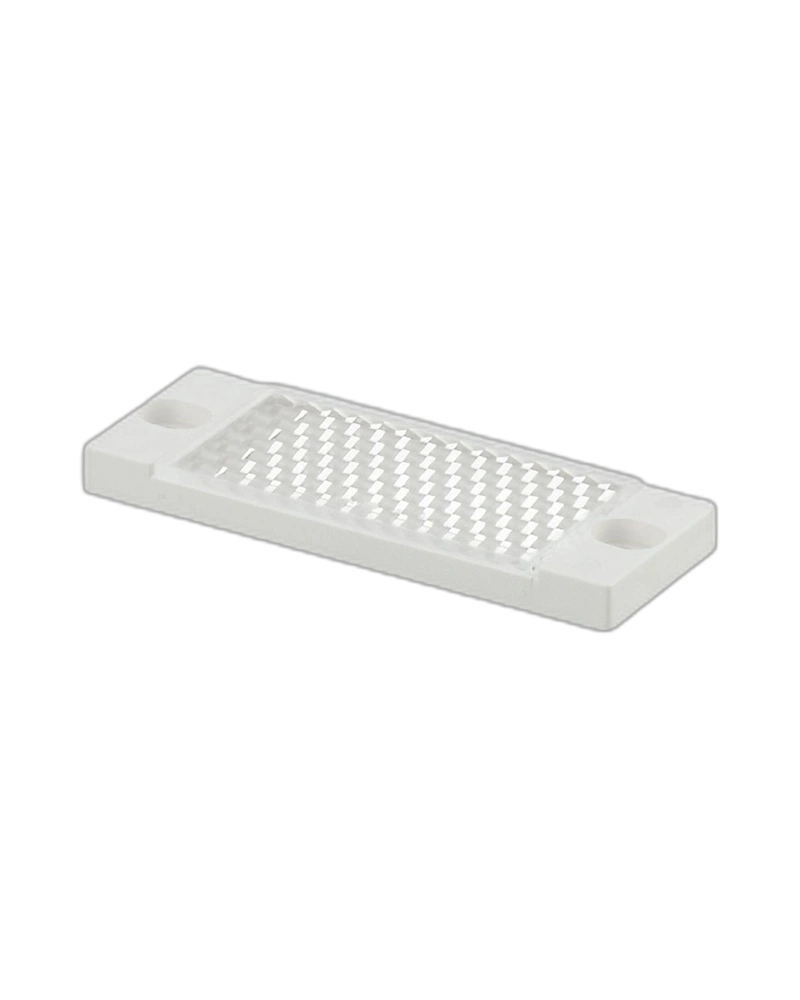

The IFM E21254 is a prismatic reflector designed for reliable operation with compatible retro-reflective photoelectric sensors. It features a 59 × 30 mm reflector surface and is suitable for both red-light and infrared-light sensing systems. The reflector has a rectangular plastic construction with overall dimensions of 30 × 82 × 7.2 mm. Its compact design allows convenient installation using two screws. It is suitable for object detection, conveyor systems, packaging machinery and general industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21254 provides a dedicated reflective target for retro-reflective photoelectric sensors. The reflective surface returns emitted sensor light toward the sensing element to support reliable object detection. It is compatible with both red-light and infrared-light retro-reflective sensors. The rectangular design provides a practical target area for industrial sensing. Its simple construction makes it easy to integrate into existing automation systems.
The reflector is designed for convenient mechanical installation using two screws. Its compact dimensions allow it to be fitted onto machine frames, brackets and other suitable mounting surfaces. The 59 × 30 mm reflective surface provides a useful sensing target while keeping the overall component compact. The lightweight plastic construction makes handling and installation simple. It is suitable for fixed reflector installations in automated machinery.
The E21254 measures approximately 30 × 82 × 7.2 mm and weighs approximately 15.7 g. Its plastic construction provides a lightweight solution for photoelectric sensing applications. The operating temperature range is -10 to +60 °C. The reflector can be used where a compact retro-reflective target is required. It is supplied as one piece for straightforward installation.
59 × 30 mm reflector surface
Red-light compatibility
Infrared-light compatibility
Rectangular design
Two-screw mounting
Lightweight plastic construction
Compact dimensions
Easy installation
Reliable reflective target
Retro-reflective photoelectric sensors
Object detection
Conveyor systems
Packaging machinery
Factory automation
Industrial sensing
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21254 |
| Product Type | Prismatic Reflector |
| Order Code | E21254 |
| Product Name | REFLECTOR TS-30X59 |
| Design | Rectangular |
| Reflector Type | Prismatic reflector |
| Reflector Surface | 59 × 30 mm |
| Overall Dimensions | 30 × 82 × 7.2 mm |
| Material | Plastic |
| Compatible Sensor | Retro-reflective sensors |
| Compatible Light | Red light |
| Compatible Light | Infrared light |
| Mounting | Screw mounting |
| Mounting Hardware | 2 screws |
| Ambient Temperature | -10 to +60 °C |
| Weight | Approx. 15.7 g |
| Application | Industrial photoelectric sensing |
| Construction | Plastic |
| Pack Quantity | 1 piece |
