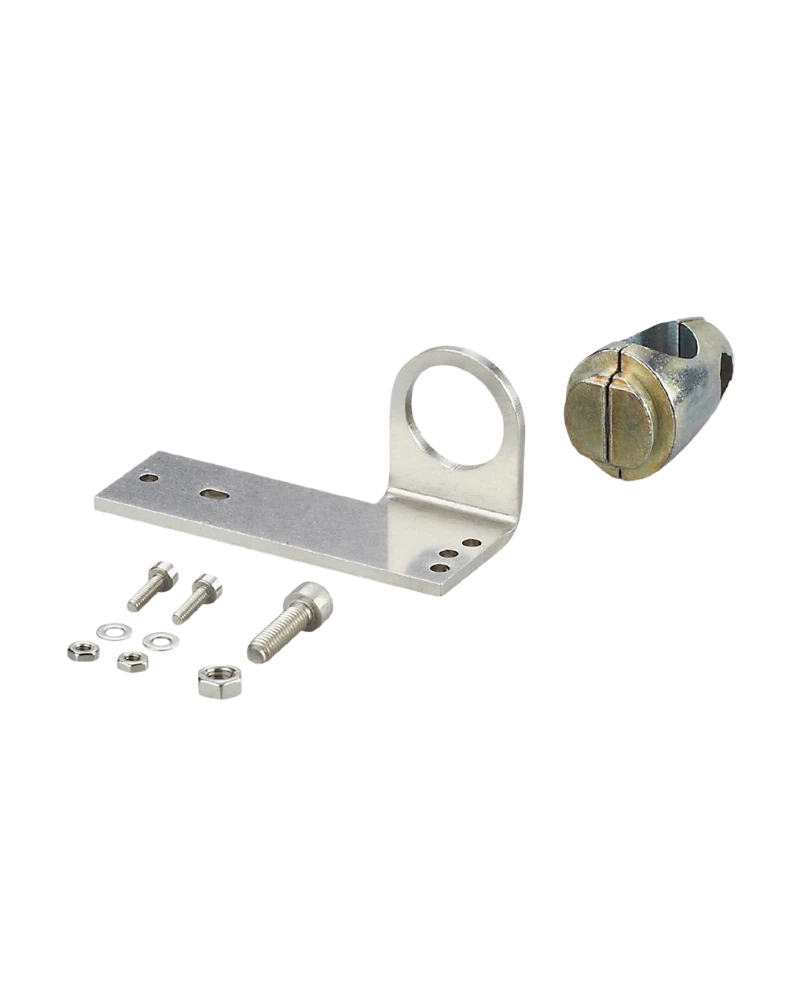

The IFM E21241 is a complete mounting set designed for secure installation of compatible reflectors. It uses clamp mounting on an 18 mm diameter mounting rod for flexible positioning. The fixture is manufactured from stainless steel 1.4571 / 316Ti, while the clamp is made from die-cast zinc. Its design allows the reflector to be freely positioned in different directions. It provides a robust and convenient mounting solution for industrial retro-reflective sensing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21241 is designed specifically for reflector mounting applications. It provides a complete clamp-based mechanical arrangement for securing compatible reflectors. The reflector can be positioned according to the required photoelectric sensing direction. The mounting structure provides stable support during machine operation. It is suitable for retro-reflective sensor installations. The accessory helps simplify reflector positioning and alignment.
The mounting set is designed for installation on an 18 mm diameter mounting rod. The clamp arrangement allows the reflector position to be adjusted according to the application. Free movement in different directions provides flexibility during installation. This makes it useful for machine layouts where reflector alignment needs to be adjusted. The rod-based mounting arrangement provides stable mechanical support. It is suitable for industrial automation systems.
The fixture is manufactured from stainless steel 1.4571 / 316Ti, while the clamp uses die-cast zinc. This combination provides a durable mechanical mounting structure. The product is designed for use in demanding industrial environments. The complete mounting set weighs approximately 121.5 g. Its robust design supports long-term reflector installation.
Reflector mounting set
Clamp mounting
18 mm rod mounting
Stainless steel 316Ti fixture
Die-cast zinc clamp
Flexible reflector positioning
Robust industrial construction
Compact mounting arrangement
Suitable for retro-reflective sensing
Retro-reflective sensors
Reflector mounting
Photoelectric sensing
Industrial automation
Conveyor systems
Machine-building
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21241 |
| Product Type | Mounting Set for Reflectors |
| Order Code | E21241 |
| Product Name | SYSTEM COMPONENT REFL BOLT |
| Application | Reflector mounting |
| Mounting Design | Clamp mounting |
| Mounting Rod Diameter | Ø18 mm |
| Compatible Reflector Size | Approx. 72.5 × 19 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Die-cast zinc |
| Mechanical Function | Reflector positioning |
| Position Adjustment | Free movement in multiple directions |
| Weight | Approx. 121.5 g |
| Installation | Rod mounting |
| Application Environment | Industrial |
| Construction | Stainless steel and die-cast zinc |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
