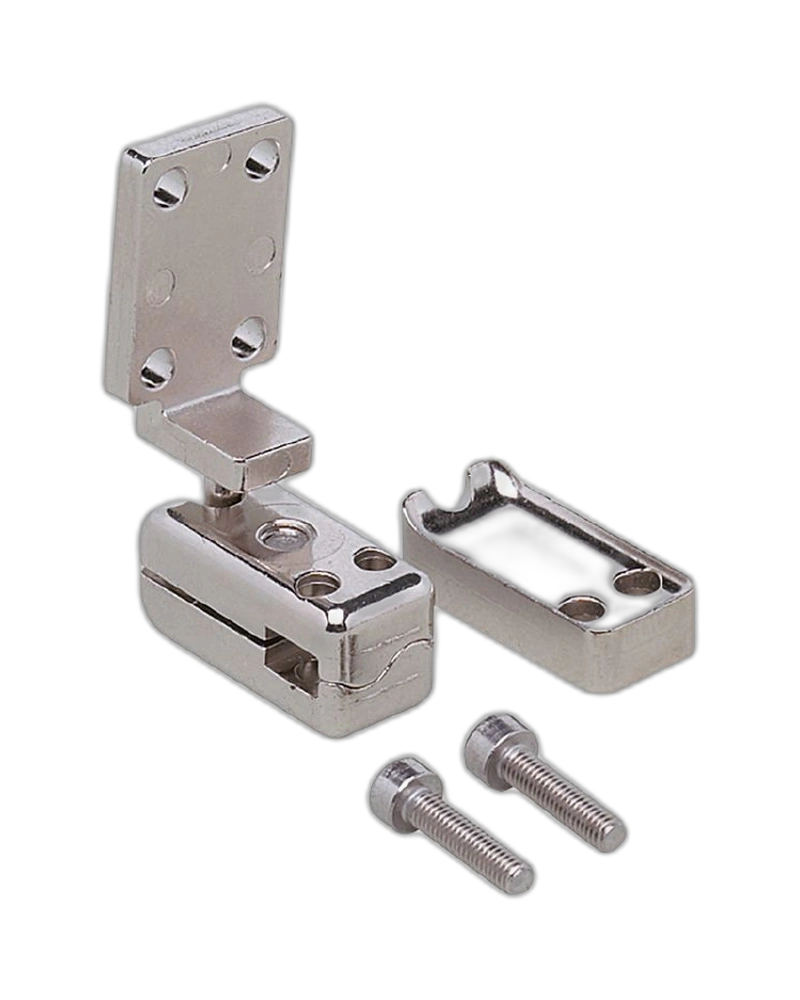

The IFM E21240 is a swivel mounting set designed for compatible O7 photoelectric sensors. It uses a ball-joint arrangement to provide flexible sensor positioning during installation. The fixture and mounting base are manufactured from die-cast zinc, while the screws are made from stainless steel. Its free-standing mounting design provides a compact and adjustable installation solution. The complete assembly weighs approximately 40 g and is supplied with two screws.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21240 uses a ball-joint mechanism that allows the sensor to be positioned in different directions. This provides greater flexibility compared with a fixed mounting bracket. The sensor can be aligned according to the required detection area. The swivel arrangement is useful during machine commissioning and setup. It allows convenient adjustment of the sensor orientation. This makes it suitable for applications where flexible positioning is important.
The mounting set is designed for compatible O7 photoelectric sensors. Its compact configuration supports practical sensor integration into industrial equipment. The sensor can be mounted and adjusted according to the required machine geometry. The free-standing design provides a simple installation method. It is suitable for production machinery and automation systems. The mounting accessory helps simplify O7 sensor installation.
The fixture and mounting base are manufactured from die-cast zinc. Stainless-steel screws are used for mechanical fastening. The complete assembly weighs approximately 40 g. Two screws are supplied with the mounting set. The combination provides a lightweight and durable mechanical support solution.
O7 sensor mounting
Ball-joint design
Swivel positioning
Free-standing mounting
Die-cast zinc fixture
Die-cast zinc mounting base
Stainless-steel screws
Two screws supplied
Lightweight construction
O7 photoelectric sensors
Flexible sensor alignment
Industrial automation
Machine-building
Factory automation
Production machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21240 |
| Product Type | Mounting Set |
| Order Code | E21240 |
| Product Name | SWIVEL MOUNT CLIP |
| Compatible Sensor | O7 photoelectric sensors |
| Mounting Design | Ball joint |
| Mounting Type | Free-standing |
| Fixture Material | Die-cast zinc |
| Mounting Base Material | Die-cast zinc |
| Screw Material | Stainless steel |
| Supplied Screws | 2 |
| Dimensions | Approx. 45 × 12 × 27.5 mm |
| Adjustment Type | Swivel / ball-joint positioning |
| Mechanical Function | Sensor mounting and alignment |
| Weight | Approx. 40 g |
| Application | Industrial photoelectric sensing |
| Installation | Free-standing |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
