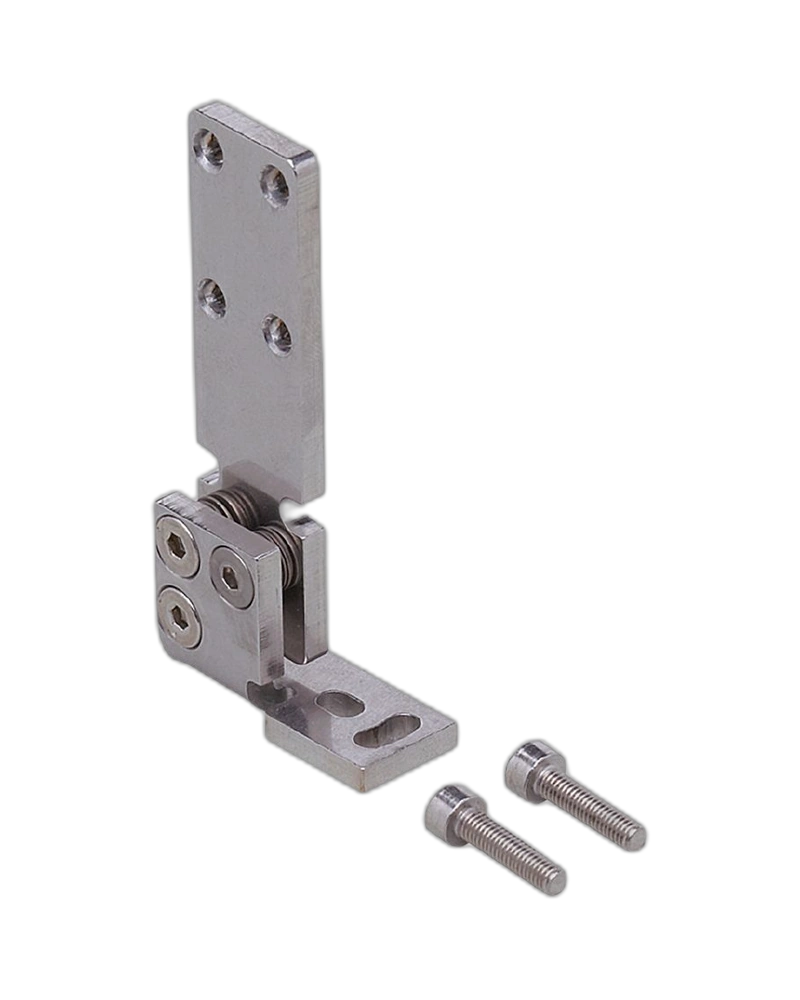

The IFM E21239 is a mounting set designed for O7 sensors requiring free-standing installation with fine adjustment capability. It combines a stainless-steel fixture with a spring-steel adjustment element for controlled sensor positioning. The fine-adjustment design helps achieve accurate sensor alignment during installation and commissioning. Stainless-steel screws are included as part of the mounting arrangement. Its lightweight construction weighs approximately 38 g and provides a compact solution for industrial sensor positioning.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21239 is designed to provide fine adjustment for compatible O7 sensors. The adjustment mechanism helps position the sensor accurately after initial installation. This is useful when precise sensor alignment is required during machine commissioning. Small positioning corrections can be made without completely replacing the mounting arrangement. The design supports accurate detection positioning. It provides improved flexibility compared with a basic fixed bracket.
The fixture is designed for free-standing sensor mounting. This allows it to be installed directly on an appropriate machine or mounting surface. The compact arrangement makes it suitable for different industrial machine layouts. The sensor can be positioned according to the required detection direction. The mounting structure provides stable support after adjustment. It is suitable for automation equipment requiring accurate sensor placement.
The fixture is manufactured from stainless steel, while the adjustment spring is made from spring steel. Stainless-steel screws are used for the mounting arrangement. Two mounting screws are included with the product. The complete mounting set weighs approximately 38 g. Its lightweight and compact construction makes it suitable for precision sensor installation.
O7 sensor mounting
Free-standing installation
Fine-adjustment mechanism
Stainless steel fixture
Spring steel adjustment element
Stainless-steel screws
Two mounting screws
Precise sensor positioning
Lightweight construction
O7 photoelectric sensors
Fine sensor alignment
Industrial automation
Machine-building
Precision detection systems
Factory automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21239 |
| Product Type | Mounting and Fine Adjustment Bracket |
| Order Code | E21239 |
| Product Name | FIXTURE FOR FINE ADJUSTMENT |
| Compatible Sensor | O7 sensors |
| Mounting Type | Free-standing |
| Adjustment Function | Fine adjustment |
| Fixture Material | Stainless steel |
| Spring Material | Spring steel |
| Screw Material | Stainless steel |
| Supplied Screws | 2 mounting screws |
| Mechanical Function | Sensor mounting and alignment |
| Weight | Approx. 38 g |
| Application | Precision sensor positioning |
| Construction | Stainless steel and spring steel |
| Installation | Free-standing mounting |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
