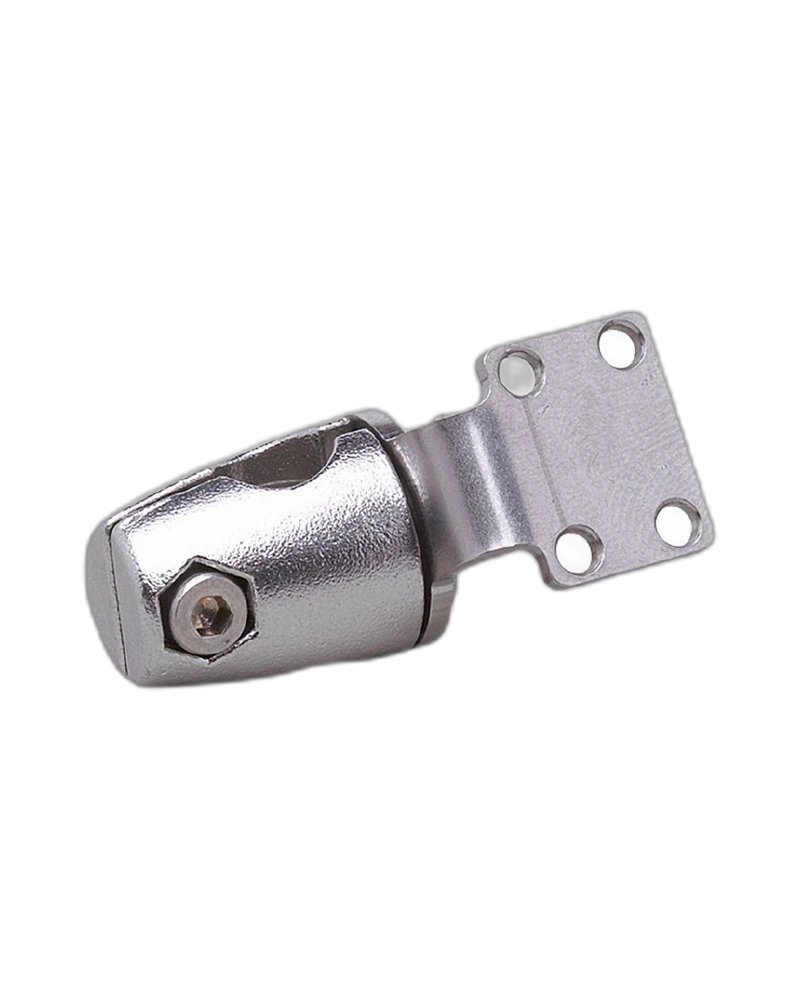

The IFM E21237 is a complete mounting set designed for position sensors requiring clamp-based mechanical installation. It is intended for O7 sensor applications and mounting on a 10 mm diameter rod. The fixture, clamp, screw and nut are manufactured from stainless steel for robust industrial use. The design allows flexible sensor positioning through movement along the mounting arrangement. It provides a practical solution for quick, secure and economical sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21237 provides a dedicated mechanical mounting solution for compatible position sensors. Its clamp-and-bracket construction securely holds the sensor in the required position. The system is designed for O7 applications. It allows the sensor to be positioned according to the machine layout. The mounting arrangement supports stable operation during continuous automation processes. It is suitable for industrial sensor integration.
The mounting set is designed for installation on a 10 mm diameter mounting rod. This provides a compact support arrangement for sensor installation. The clamp can be positioned along the rod to achieve the required sensing location. The mounting structure provides flexibility during machine setup and commissioning. It is useful where adjustable sensor positioning is required. The rod-based design supports convenient integration into industrial equipment.
The fixture, clamp, screw and nut are manufactured from stainless steel. This provides a robust mechanical assembly suitable for industrial environments. The complete mounting set weighs approximately 47 g. One M4 × 12 mm head cap screw and one M4 nut are supplied. The compact design provides dependable support without unnecessary bulk. It is suitable for demanding sensor mounting applications.
O7 sensor mounting
Clamp mounting
10 mm rod mounting
Stainless steel fixture
Stainless steel clamp
Stainless steel screw and nut
Flexible sensor positioning
Compact construction
Complete mounting set
O7 position sensors
Industrial automation
Factory automation
Machine-building
Sensor positioning
Production machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21237 |
| Product Type | Mounting Set |
| Order Code | E21237 |
| Product Name | CLAMP AND BRACKET |
| Compatible Sensor | O7 position/photoelectric sensors |
| Mounting Design | Clamp mounting |
| Mounting Rod Diameter | Ø10 mm |
| Fixture Material | Stainless steel |
| Clamp Material | Stainless steel |
| Screw Material | Stainless steel |
| Nut Material | Stainless steel |
| Fixture Dimensions | Approx. 27.3 × 20 × 44.3 mm |
| Supplied Screw | 1 × M4 × 12 mm head cap screw |
| Supplied Nut | 1 × M4 nut |
| Mechanical Function | Sensor mounting |
| Weight | Approx. 47 g |
| Application | Industrial automation |
| Installation | Rod mounting |
| Construction | Stainless steel |
| Pack Quantity | 1 piece |
