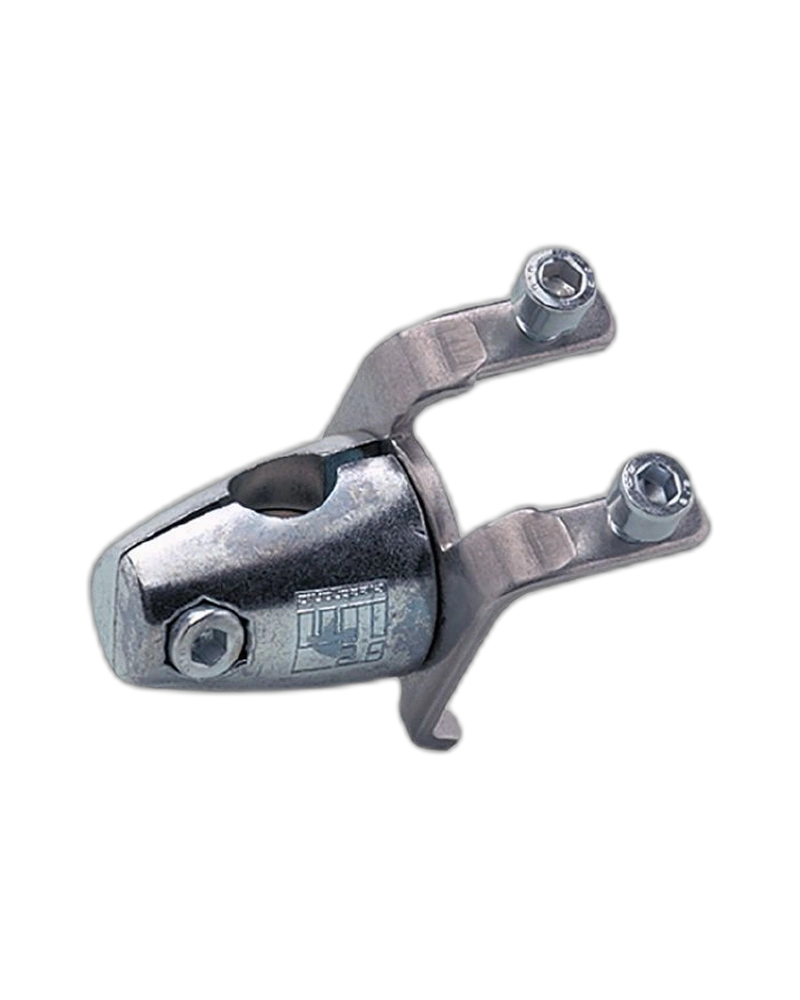

The IFM E21235 is a complete mounting set designed for compatible O5 photoelectric sensors. It uses clamp mounting for convenient installation on a 14 mm diameter mounting rod. The mounting fixture is manufactured from stainless steel 1.4571 / 316Ti, while the clamp is made from die-cast zinc. The design allows flexible sensor positioning and quick mechanical installation. It is suitable for industrial automation, machine-building and sensor mounting applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21235 provides a dedicated mounting solution for compatible O5 photoelectric sensors. Its clamp arrangement holds the sensor securely within the required detection position. The mounting system is designed for convenient installation on a mounting rod. The sensor can be positioned according to the machine layout. The complete assembly simplifies installation compared with separate mounting components. It provides dependable mechanical support during operation.
The mounting set is designed for installation on a 14 mm diameter mounting rod. The clamp arrangement allows the sensor to be positioned in the required location before final tightening. This provides useful flexibility during machine commissioning. The design supports practical adjustment in different mounting directions. It is suitable for compact industrial machine structures. The complete mounting concept provides a quick and economical sensor fixing solution.
The mounting fixture uses stainless steel 1.4571 / 316Ti, while the clamp uses die-cast zinc. These materials provide a robust structure for industrial sensor mounting. Two M5 × 8 mm cylinder screws are included with the mounting set. The complete mounting set weighs approximately 98.8 g. The construction is intended for reliable operation in demanding industrial environments. It provides a durable and practical solution for O5 sensor installation.
O5 photoelectric sensor mounting
Clamp mounting
14 mm rod mounting
Stainless steel 316Ti fixture
Die-cast zinc clamp
Two M5 × 8 mm screws
Flexible sensor positioning
Quick installation
Robust industrial construction
O5 photoelectric sensors
Industrial automation
Machine-building
Factory automation
Production machinery
Sensor positioning systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21235 |
| Product Type | Mounting Set |
| Order Code | E21235 |
| Product Name | O5 MOUNTING BRACKET 200 |
| Compatible Sensor | O5 photoelectric sensors |
| Mounting Design | Clamp mounting |
| Mounting Rod Diameter | Ø14 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Die-cast zinc |
| Supplied Screws | 2 × cylinder screws |
| Screw Size | M5 × 8 mm |
| Mechanical Function | Sensor mounting |
| Sensor Positioning | Flexible |
| Weight | Approx. 98.8 g |
| Application | Industrial automation |
| Installation | Rod mounting |
| Construction | Stainless steel and die-cast zinc |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
