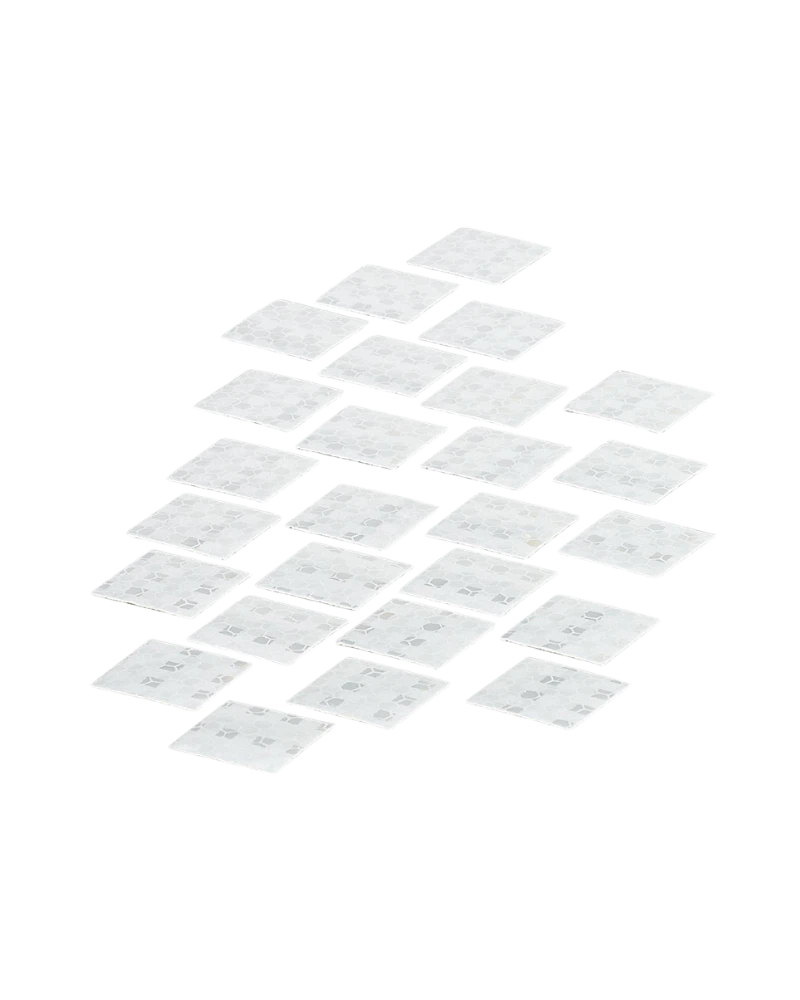

The IFM E21234 is a 25 × 25 mm reflective tape designed for use with compatible retro-reflective photoelectric sensors. It is suitable for red-light and infrared-light sensing applications where a compact reflector surface is required. The tape can be mounted easily by adhesive attachment to a suitable clean surface. Its plastic construction provides a lightweight and practical reflective target. It is suitable for industrial automation, object detection and photoelectric sensing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21234 provides a reflective target for compatible retro-reflective sensors. It is designed for reliable operation with both red light and infrared light. The reflective surface returns the emitted light toward the sensor. This allows the sensor to detect the presence or interruption of the reflective target. Its compact size is useful where installation space is limited. It provides a simple alternative to rigid reflector components.
The reflective surface measures 25 × 25 mm with an overall thickness of approximately 0.4 mm. The thin construction allows convenient installation on flat surfaces. Its lightweight design makes it suitable for applications where additional mechanical load should be minimized. The tape can be positioned according to the required sensing direction. The compact format is useful for machine-mounted photoelectric sensors. It can be integrated into many industrial detection arrangements.
The E21234 is designed for industrial sensing environments. When attached, it can operate continuously within approximately -25 to +65 °C, with short peak exposure up to +80 °C. The recommended sticking temperature is approximately +16 to +25 °C. Its plastic construction provides a lightweight reflective solution. Proper surface preparation helps maintain secure adhesion during operation. This makes it suitable for production and factory automation systems.
25 × 25 mm reflective surface
TS-02 reflective tape
Suitable for retro-reflective sensors
Compatible with red light
Compatible with infrared light
Adhesive mounting
Thin 0.4 mm construction
Lightweight design
Compact sensing target
Retro-reflective sensors
Photoelectric object detection
Industrial automation
Conveyor systems
Packaging machinery
Factory automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21234 |
| Product Type | Reflective Tape |
| Order Code | E21234 |
| Product Name | REFLECTION TAPE TS-02/25X25 |
| Reflector Type | Reflective tape |
| Series | TS-02 |
| Reflective Surface | 25 × 25 mm |
| Length | 25 mm |
| Width | 25 mm |
| Thickness | Approx. 0.4 mm |
| Material | Plastic |
| Sensor Type | Retro-reflective sensors |
| Compatible Light | Red light and infrared light |
| Mounting Method | Adhesive attachment |
| Continuous Ambient Temperature | -25 to +65 °C |
| Peak Ambient Temperature | Up to +80 °C for limited duration |
| Recommended Sticking Temperature | +16 to +25 °C |
| Typical Reflection Value | Approx. 1000 cd/lx·m² at specified geometry |
| Weight | Approx. 10 g |
| Application | Industrial photoelectric sensing |
| Pack Quantity | 1 piece |
