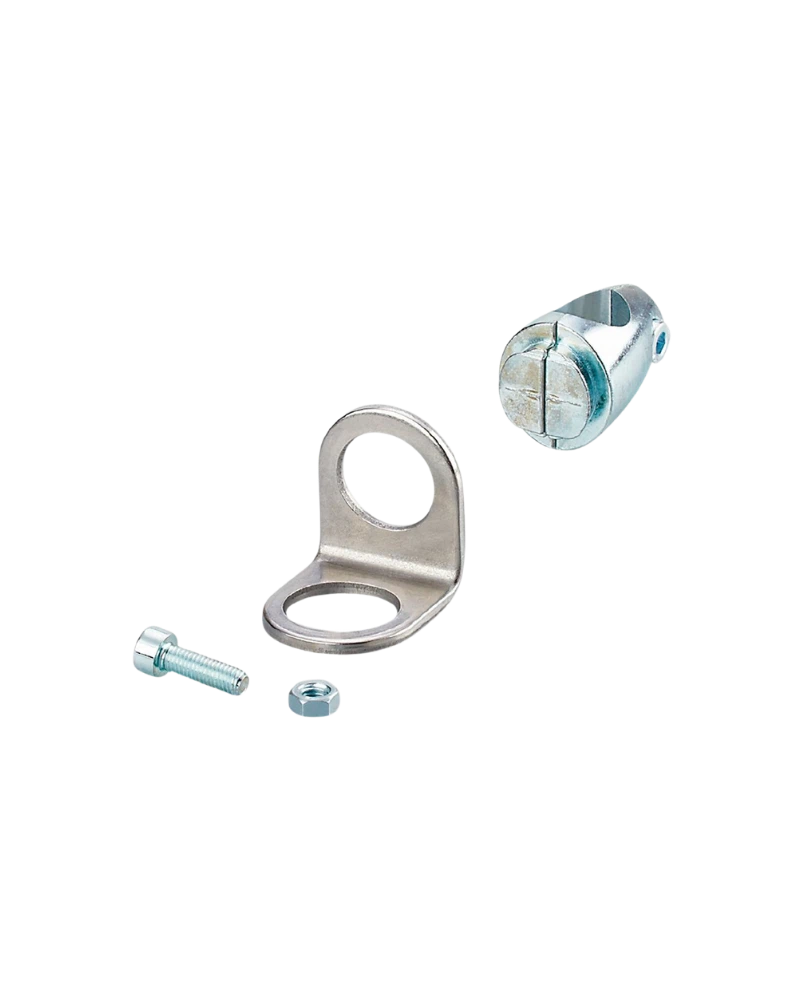

The IFM E21231 is a mounting set designed for compatible OG, IG and KG sensors. It provides clamp mounting on an 18 mm diameter rod and features an 18.5 mm sensor mounting diameter. The clamp is manufactured from die-cast zinc, while the fixture is made from steel for reliable mechanical support. Its compact construction provides stable sensor positioning in industrial automation systems. The mounting set is suitable for machine-building, factory automation and general sensor installation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21231 is designed for sensor types OG, IG and KG. This makes it a versatile mounting accessory for different compatible sensor configurations. The 18.5 mm mounting diameter provides a suitable interface for the intended sensor types. Its clamp mounting design provides stable mechanical fixation. This helps simplify sensor integration into automated machinery.
The mounting set is designed for rod mounting using an 18 mm diameter support rod. The clamp provides secure fixation around the rod. The arrangement allows the sensor to be positioned according to the machine layout. It provides useful flexibility during installation and commissioning. The design supports stable sensor operation.
The fixture is manufactured from steel and the clamp is made from die-cast zinc. This combination provides a durable mechanical structure for industrial applications. The product weighs approximately 89 g. Its compact design allows convenient integration into machine-building systems. The complete mounting set is supplied as one piece.
Compatible with OG sensors
Compatible with IG sensors
Compatible with KG sensors
18.5 mm sensor mounting diameter
18 mm rod mounting
Clamp mounting
Steel fixture
Die-cast zinc clamp
Compact industrial construction
OG sensor mounting
IG sensor mounting
KG sensor mounting
Industrial automation
Machine-building
Factory automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21231 |
| Product Type | Mounting set |
| Order Code | E21231 |
| Product Name | SYSTEM COMPONENT OG 200 |
| Compatible Sensor Types | OG, IG, KG |
| Sensor Mounting Diameter | Ø18.5 mm |
| Mounting Type | Clamp mounting |
| Rod Mounting Diameter | Ø18 mm |
| Fixture Material | Steel |
| Clamp Material | Die-cast zinc |
| Mechanical Function | Sensor mounting |
| Design | Compact mounting set |
| Weight | Approx. 89 g |
| Application | Industrial sensor mounting |
| Installation | Rod mounting |
| Construction | Steel and die-cast zinc |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
