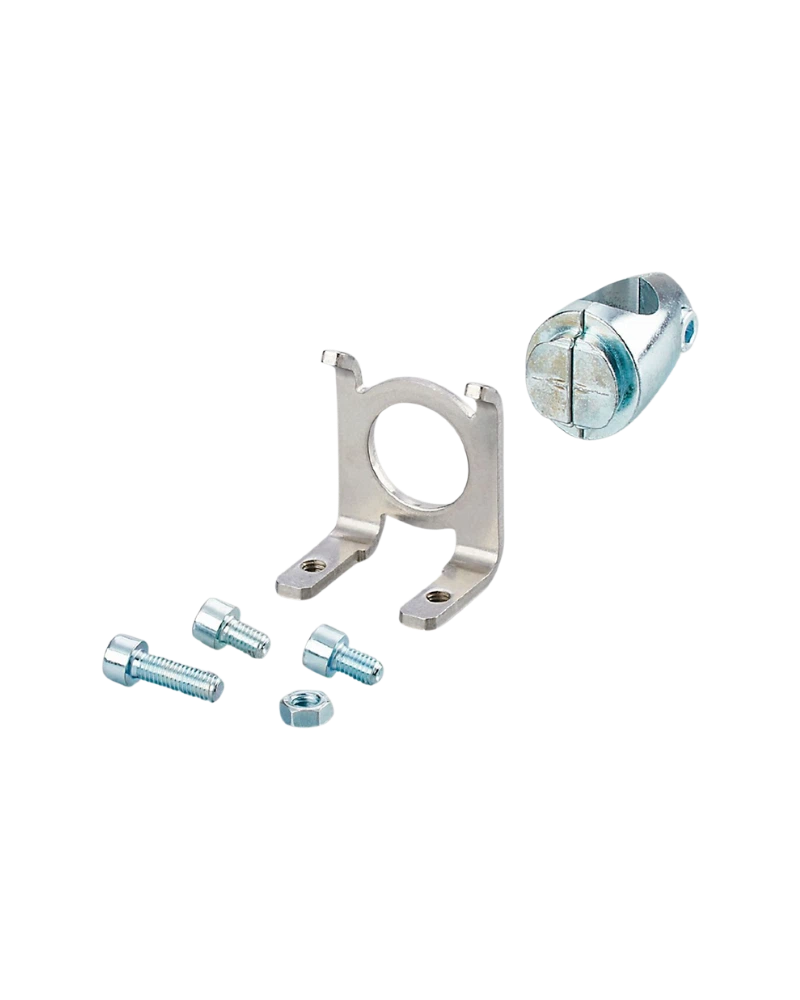

The IFM E21230 is a mounting set designed for compatible O5 photoelectric sensors. It uses clamp mounting on an 18 mm diameter mounting rod for secure mechanical positioning. The mounting fixture is manufactured from stainless steel 316Ti / 1.4571, while the clamp is made from die-cast zinc. Two M5 × 8 mm cylinder head screws are included for convenient installation. Its robust and compact construction makes it suitable for industrial automation and machine-building applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21230 provides a complete mounting arrangement for compatible O5 photoelectric sensors. Its clamp design allows the sensor to be securely fixed to the mounting structure. The mounting set simplifies installation by combining the fixture and required screws. It provides reliable mechanical support during continuous machine operation. The design is suitable for industrial production environments.
The mounting set is designed for rod mounting with an 18 mm diameter rod. This provides a stable mechanical support arrangement for the sensor. The clamp can be positioned according to the required sensor location before final tightening. It provides flexibility during machine commissioning. The arrangement is suitable for production machinery requiring accurate sensor positioning.
The fixture is manufactured from stainless steel 316Ti / 1.4571, while the clamp is made from die-cast zinc. This combination provides a strong and durable mechanical assembly. The product weighs approximately 93 g. Two M5 × 8 mm cylinder head screws are supplied with the set.
O5 photoelectric sensor mounting
18 mm rod mounting
Clamp mounting
Stainless steel 316Ti fixture
Die-cast zinc clamp
Two M5 × 8 mm screws
Complete mounting set
Robust construction
Reliable sensor positioning
O5 photoelectric sensors
Industrial automation
Factory automation
Machine-building
Production machinery
Sensor positioning systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21230 |
| Product Type | Mounting set |
| Order Code | E21230 |
| Product Name | O5 MOUNTING BRACKET 200 |
| Compatible Sensor | O5 photoelectric sensors |
| Mounting Type | Clamp mounting |
| Rod Mounting Diameter | Ø18 mm |
| Fixture Material | Stainless steel 316Ti / 1.4571 |
| Clamp Material | Die-cast zinc |
| Supplied Screws | 2 × cylinder head screws |
| Screw Size | M5 × 8 mm |
| Mechanical Function | Sensor mounting |
| Weight | Approx. 93 g |
| Application | Industrial sensor mounting |
| Construction | Stainless steel and die-cast zinc |
| Installation | Rod clamp mounting |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
