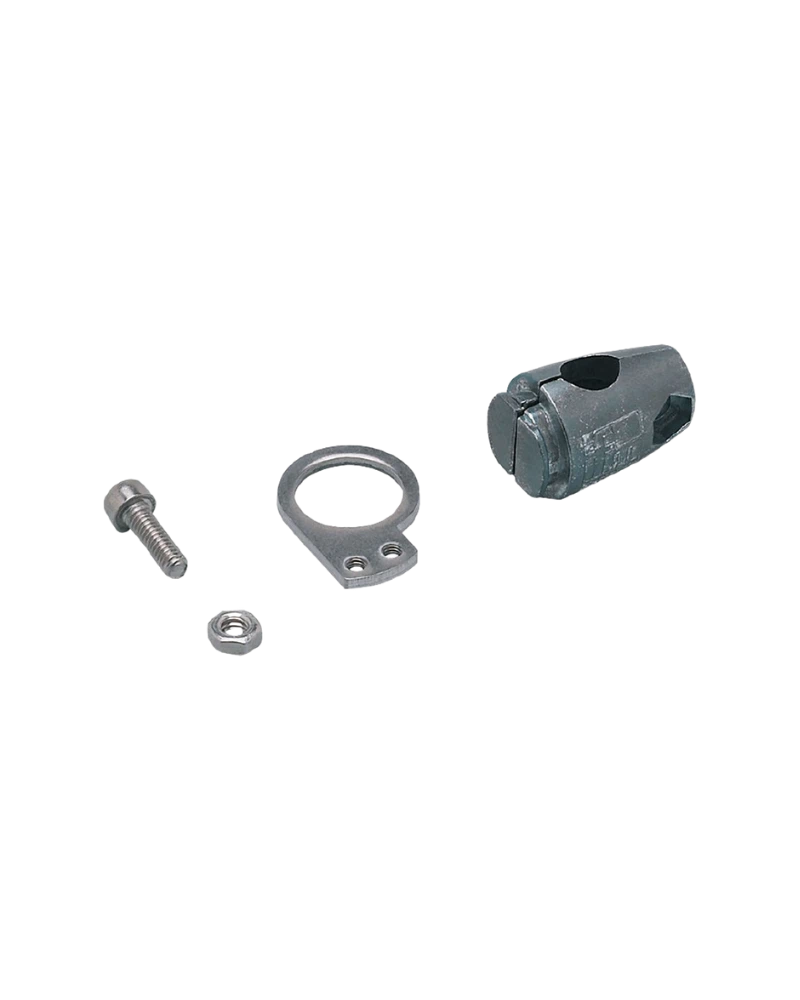

The IFM E21222 is a mounting set designed for OJ photoelectric sensors with a side-lens configuration. It provides secure clamp mounting using a 10 mm diameter mounting rod. The fixture is manufactured from stainless steel 316Ti / 1.4571, while the clamp is made from die-cast zinc. Its compact construction provides stable support and convenient sensor positioning. The mounting set is suitable for industrial automation, machine-building and photoelectric sensing applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21222 is designed specifically for OJ sensors with side-lens configuration. The mounting arrangement allows the sensor to be securely positioned within the machine structure. Its clamp design provides dependable mechanical support during operation. The configuration is useful where the sensor needs to be installed from the side. It provides a practical solution for industrial sensor mounting.
The mounting set is designed for rod mounting with a 10 mm diameter rod. This provides a compact support arrangement for compatible OJ sensors. The clamp enables secure fixation while allowing suitable positioning during installation. It is useful for machine layouts requiring flexible sensor placement. The compact mounting format helps reduce installation space.
The fixture is manufactured from stainless steel 316Ti / 1.4571 for robust mechanical performance. The clamp is made from die-cast zinc, providing a strong and practical clamping structure. The complete mounting set weighs approximately 43 g. These materials provide a dependable solution for industrial sensor installations.
OJ photoelectric sensor mounting
Side-lens configuration
10 mm rod mounting
Clamp mounting
Stainless steel 316Ti fixture
Die-cast zinc clamp
Compact design
Reliable sensor fixation
Lightweight construction
OJ photoelectric sensors
Industrial automation
Machine-building
Factory automation
Production machinery
Sensor positioning
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21222 |
| Product Type | Mounting set for photoelectric sensors |
| Order Code | E21222 |
| Product Name | OJ SO MOUNTING SET |
| Compatible Sensor Type | OJ photoelectric sensors |
| Sensor Configuration | Side lens |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | 10 mm |
| Fixture Material | Stainless steel 316Ti / 1.4571 |
| Clamp Material | Die-cast zinc |
| Mechanical Function | Sensor mounting |
| Application | Industrial sensor installation |
| Weight | Approx. 43 g |
| Design | Compact clamp mounting |
| Construction | Stainless steel and die-cast zinc |
| Installation | Rod mounting |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
