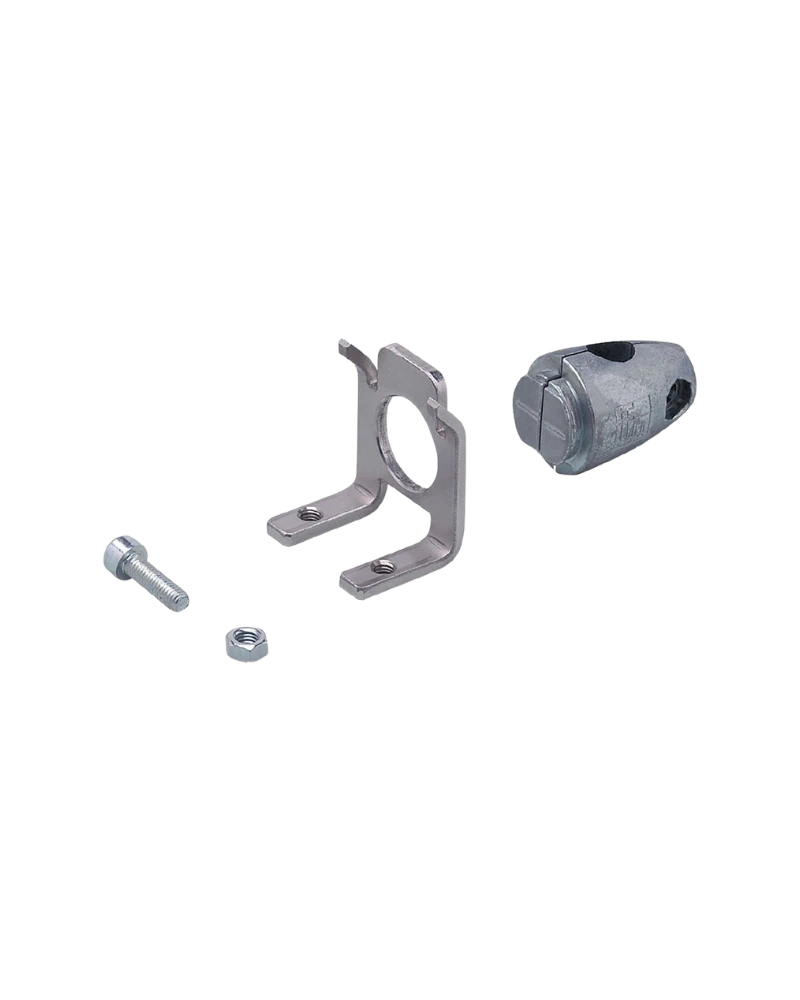

The IFM E21217 is a complete mounting set designed for clamp mounting of compatible O4 photoelectric sensors. It is designed for installation on a 12 mm diameter mounting rod and provides flexible sensor positioning. The mounting fixture is manufactured from stainless steel 1.4404 / 316L, while the clamp is made from die-cast zinc. The set includes two M5 × 10 mm cylinder screws, one M5 nut and one M5 × 16 mm head cap screw. Its compact design provides reliable sensor mounting for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21217 provides a complete mechanical mounting solution for O4 photoelectric sensors. The clamp arrangement securely fixes the sensor to the mounting rod. It is designed to simplify sensor installation and adjustment in automated machinery. The mounting structure provides stable mechanical support during operation. It is suitable for production lines and machine-building applications.
The 12 mm mounting rod arrangement allows the sensor to be positioned according to the required detection point. The clamp can be adjusted during installation before final tightening. This provides flexibility when aligning the sensor with machine components. It helps simplify commissioning and maintenance. The design is particularly useful where accurate sensor positioning is required.
The fixture is manufactured from stainless steel 1.4404 / 316L, while the clamp is made from die-cast zinc. These materials provide dependable mechanical support for industrial installations. The product weighs approximately 131 g. The complete set includes the required mounting screws and nut.
O4 photoelectric sensor mounting
Complete mounting set
Clamp mounting
12 mm mounting rod
Stainless steel 316L fixture
Die-cast zinc clamp
Two M5 × 10 mm screws
One M5 nut
One M5 × 16 mm screw
O4 photoelectric sensors
Industrial automation
Machine-building
Production machinery
Factory automation
Sensor positioning systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21217 |
| Product Type | Mounting set for photoelectric sensors |
| Order Code | E21217 |
| Product Name | O4 MOUNTING BRACKET 200 |
| Compatible Sensor | O4 photoelectric sensors |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | 12 mm |
| Fixture Material | Stainless steel 1.4404 / 316L |
| Clamp Material | Die-cast zinc |
| Supplied Screws | 2 × M5 × 10 mm cylinder screws |
| Supplied Nut | 1 × M5 |
| Supplied Head Cap Screw | 1 × M5 × 16 mm |
| Design | Complete mounting set |
| Sensor Adjustment | Adjustable clamp positioning |
| Weight | Approx. 131 g |
| Application | Industrial sensor mounting |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
