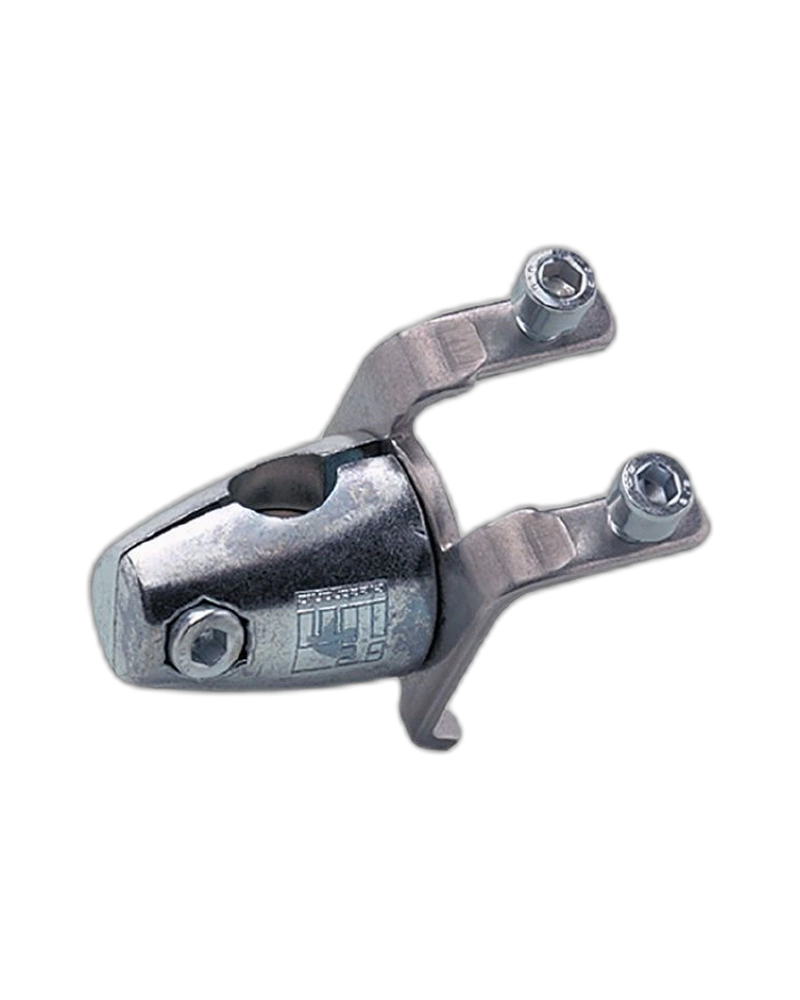

The IFM E21212 is a robust mounting set designed for clamp mounting of compatible O5 photoelectric sensors. It uses a 12 mm diameter mounting rod and provides a secure mechanical support arrangement for industrial sensor installations. The fixture and clamp are manufactured from stainless steel for enhanced durability and corrosion resistance. Two M5 × 8 mm cylinder screws are supplied for convenient installation. The complete mounting solution is suitable for demanding industrial automation and machine-building applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21212 provides a stable mounting arrangement for compatible O5 photoelectric sensors. Its clamp design allows the sensor to be securely attached to the mounting rod. The mounting structure is suitable for industrial machinery requiring dependable sensor positioning. It simplifies the installation process by providing a complete mounting set. The design supports convenient sensor alignment during commissioning.
The mounting fixture uses stainless steel 1.4571 / 316Ti, while the clamp is manufactured from stainless steel 1.4408 / 316. This stainless-steel construction provides excellent mechanical durability for industrial applications. It is suitable for environments where robust and corrosion-resistant mounting hardware is required. The complete assembly weighs approximately 116.5 g.
The E21212 is designed for installation on a 12 mm diameter mounting rod. Two M5 × 8 mm cylinder screws are included with the mounting set. The clamp arrangement allows convenient sensor adjustment before final fixing. This helps achieve accurate sensor alignment on production equipment. The compact mounting design is suitable for machine automation systems.
O5 photoelectric sensor mounting
Complete mounting set
12 mm mounting rod
Clamp mounting
Stainless steel 1.4571 / 316Ti fixture
Stainless steel 1.4408 / 316 clamp
Two M5 × 8 mm screws
Robust construction
Adjustable sensor positioning
O5 photoelectric sensors
Factory automation
Industrial machinery
Machine-building
Production lines
Sensor mounting systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21212 |
| Product Type | Mounting set for photoelectric sensors |
| Order Code | E21212 |
| Product Name | O5 MOUNTING BRACKET 500 |
| Compatible Sensor | O5 photoelectric sensors |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | 12 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Stainless steel 1.4408 / 316 |
| Supplied Screws | 2 × M5 × 8 mm cylinder screws |
| Design | Complete mounting set |
| Sensor Adjustment | Adjustable |
| Weight | Approx. 116.5 g |
| Application | Industrial sensor mounting |
| Construction | Stainless-steel mounting assembly |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
