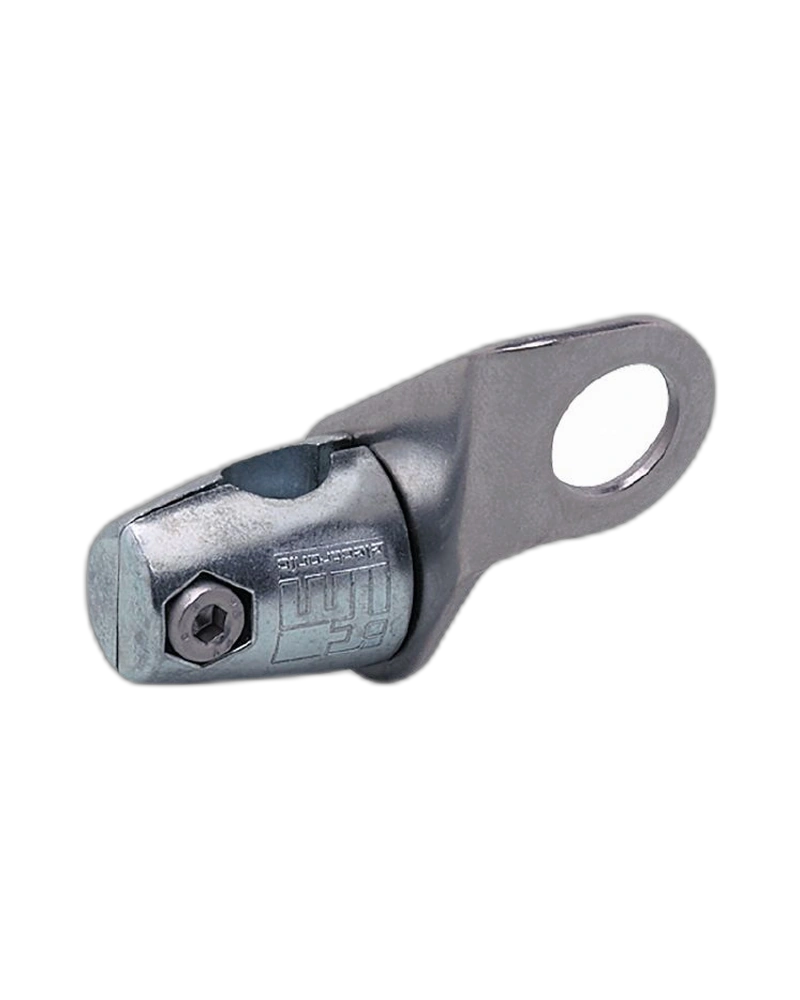

The IFM E21203 is a robust M12 mounting set designed for secure clamp mounting of position sensors. It uses a 10 mm round mounting rod and provides a 12.2 mm internal mounting diameter. The fixture is manufactured from stainless steel 316Ti, while the clamp is made from stainless steel 1.4408. Its stainless-steel construction provides reliable mechanical strength for industrial applications. The mounting set is suitable for machine-building, automation and precise sensor positioning.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21203 is designed to provide a stable mounting arrangement for compatible M12 position sensors. The clamp securely holds the sensor while allowing adjustment during installation. The 12.2 mm internal diameter supports the intended sensor mounting configuration. The complete assembly is compact and practical for industrial machine layouts. It helps simplify sensor installation and replacement.
The fixture uses stainless steel 316Ti / 1.4571 and the clamp uses stainless steel 1.4408. This all-metal construction provides enhanced durability compared with mounting sets using zinc clamps. It is suitable for applications where mechanical strength and corrosion resistance are important. The product weighs approximately 53 g according to the IFM datasheet. The construction is designed for repeated industrial use.
The E21203 uses a 10 mm round mounting rod for installation. The clamp mounting arrangement allows the sensor position to be adjusted before final tightening. This provides flexibility during machine commissioning and sensor alignment. The compact design allows installation around existing machine structures. It is a practical accessory for automated positioning systems.
M12 mounting set
Clamp mounting design
10 mm round mounting rod
12.2 mm mounting diameter
Stainless steel 316Ti fixture
Stainless steel 1.4408 clamp
Robust all-metal construction
Flexible sensor adjustment
Compact industrial design
M12 position sensors
Industrial automation
Machine-building
Factory production systems
Sensor positioning
Automated equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21203 |
| Product Type | Mounting set for position sensors |
| Order Code | E21203 |
| Product Name | M12 ANGLE BRACKET 500 |
| Compatible Sensor | M12 position sensors |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | 10 mm |
| Internal Diameter | 12.2 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Stainless steel 1.4408 |
| Design | Angle bracket |
| Construction | Assembled mounting set |
| Weight | Approx. 53 g |
| Application | Industrial sensor mounting |
| Adjustment | Adjustable clamp positioning |
| Rod Profile | Round profile |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
