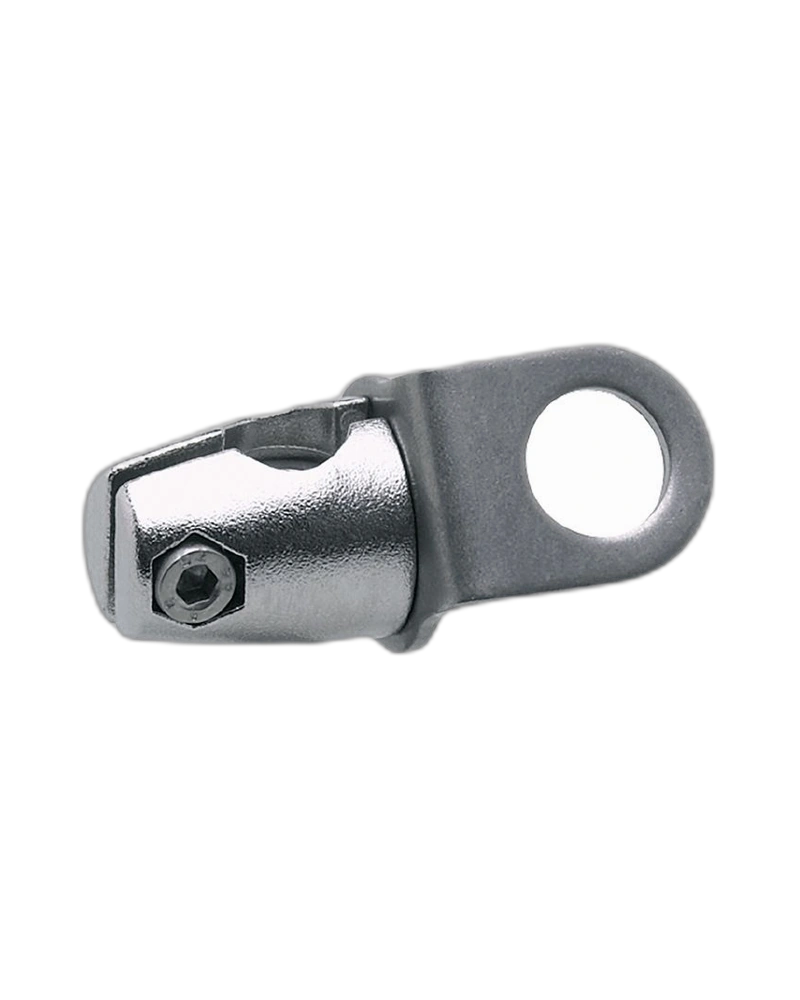

The IFM E21201 is an M12 mounting set designed for reliable clamp mounting of compatible position sensors. It uses a 10 mm diameter mounting rod and a 12.2 mm internal mounting diameter for sensor positioning. The fixture is manufactured from stainless steel 316Ti, while the clamp uses stainless steel 1.4408. Its robust construction provides dependable mechanical support in industrial environments. The mounting set is suitable for machine-building and automation applications requiring secure sensor positioning.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21201 provides a complete mounting solution for compatible M12 position sensors. The clamp arrangement securely holds the sensor while allowing adjustment during installation. The 12.2 mm internal diameter is designed for the specified sensor mounting arrangement. This allows the sensor to be positioned accurately within the machine. The mounting solution helps simplify installation and maintenance.
Unlike versions using die-cast zinc clamps, the E21201 uses a stainless-steel 1.4408 clamp. This provides a robust construction suitable for demanding industrial environments. The fixture uses stainless steel 316Ti / 1.4571 for additional mechanical durability. The complete assembly weighs approximately 50.5 g. The stainless-steel construction is suitable where corrosion resistance is important.
The mounting set is designed for installation on a 10 mm diameter mounting rod. The clamp arrangement enables convenient sensor positioning along the mounting structure. This provides flexibility when setting up automated machinery. The compact construction allows installation without requiring excessive mounting space. It is suitable for repeated sensor installation and adjustment during machine setup.
M12 position sensor mounting
Clamp mounting
10 mm mounting rod
12.2 mm internal diameter
Stainless steel 316Ti fixture
Stainless steel 1.4408 clamp
Robust industrial construction
Adjustable sensor positioning
Compact mounting arrangement
M12 position sensor installation
Industrial automation
Machine-building systems
Factory machinery
Production-line equipment
Sensor positioning assemblies
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21201 |
| Product Type | Mounting set for position sensors |
| Order Code | E21201 |
| Product Name | M12 ANGLE BRACKET 500 |
| Compatible Sensor | M12 position sensors |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | 10 mm |
| Internal Diameter | 12.2 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Stainless steel 1.4408 |
| Design | Angle bracket |
| Construction | Assembled mounting set |
| Weight | Approx. 50.5 g |
| Application | Industrial sensor mounting |
| Position Adjustment | Adjustable |
| Rod Mounting | 10 mm round profile |
| Industrial Suitability | Yes |
| Pack Quantity | 1 piece |
