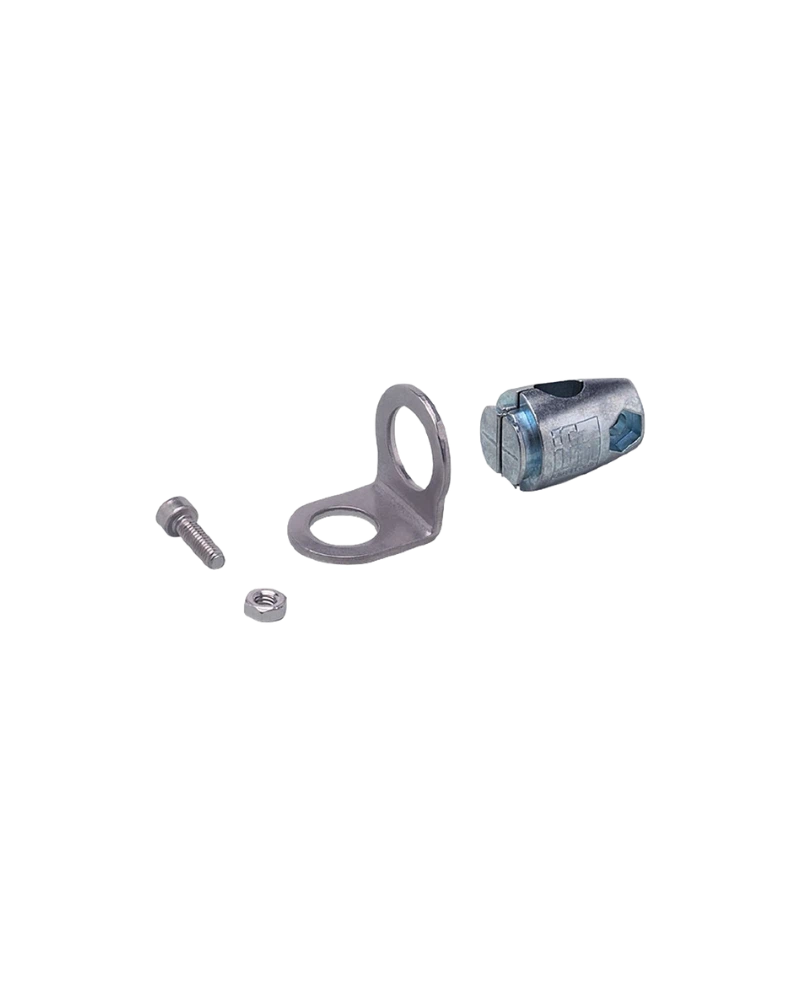

The IFM E21200 is a mounting set designed for secure installation of M12 position sensors in industrial automation applications. It uses a clamp-mounting arrangement with a 10 mm diameter mounting rod and a 12.2 mm internal mounting diameter. The fixture is manufactured from stainless steel 316Ti for robust mechanical performance. A die-cast zinc clamp provides secure sensor holding. The compact assembly is designed for easy and economical sensor positioning.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21200 is designed specifically for mounting compatible M12 position sensors. Its clamp arrangement provides a practical method of securing the sensor to a mounting rod. The 12.2 mm internal diameter supports the intended sensor mounting arrangement. The design is suitable for machine-building applications. It provides stable positioning while allowing adjustment during installation.
The mounting set uses a 10 mm diameter rod mounting arrangement. The clamp can be adjusted before final tightening to obtain the required sensor position. This simplifies installation where accurate alignment is necessary. The assembled construction provides a compact mounting solution. It is suitable for industrial environments where quick sensor installation is required.
The fixture is manufactured from stainless steel 316Ti / 1.4571, providing strong mechanical support and corrosion resistance. The clamp uses die-cast zinc for reliable clamping performance. The complete mounting set weighs approximately 46.5 g. Its compact construction helps reduce the space required around the sensor. The product is supplied as one complete mounting set.
M12 position sensor mounting
Clamp mounting design
10 mm mounting rod
12.2 mm mounting diameter
Stainless steel 316Ti fixture
Die-cast zinc clamp
Compact construction
Easy sensor adjustment
Industrial mounting solution
M12 position sensors
Factory automation
Machine-building
Industrial control systems
Sensor positioning
Production machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21200 |
| Product Type | Mounting set for position sensors |
| Order Code | E21200 |
| Product Name | M12 ANGLE BRACKET 200 |
| Compatible Sensor | M12 position sensors |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | 10 mm |
| Internal Diameter | 12.2 mm |
| Fixture Material | Stainless steel 1.4571 / 316Ti |
| Clamp Material | Die-cast zinc |
| Design | Angle bracket |
| Construction | Assembled mounting set |
| Weight | Approx. 46.5 g |
| Application | Industrial sensor mounting |
| Position Adjustment | Adjustable clamp positioning |
| Installation | Rod mounting |
| Pack Quantity | 1 piece |
