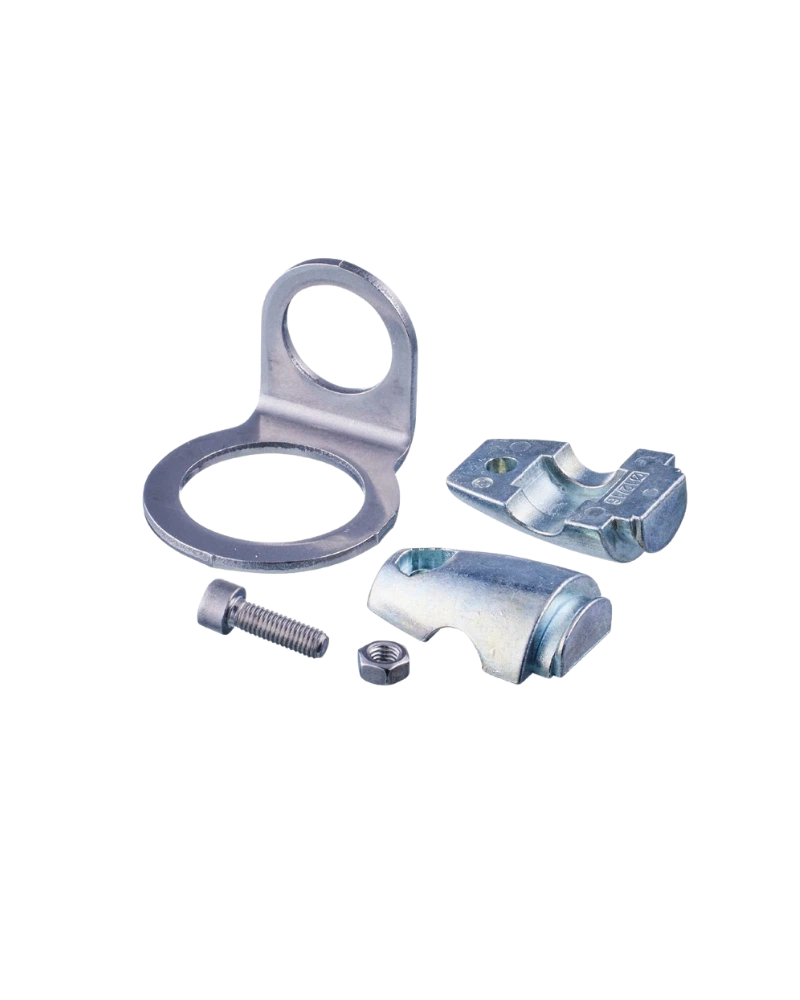

The IFM E21177 is a complete mounting set designed for secure clamp mounting of M30 position sensors. It provides flexible sensor positioning on a mounting rod with a diameter of 12 mm. The mounting arrangement allows the sensor to be moved freely in different directions for convenient positioning. Its robust stainless-steel fixture and die-cast zinc clamp are suitable for demanding industrial environments. The compact 79 × 42 × 33 mm assembly provides a practical solution for machine sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21177 combines the required mounting components into one practical assembly for M30 position sensors. It is designed for clamp mounting and can be fixed to a suitable mounting rod. The complete set simplifies sensor installation and adjustment. It reduces the need to source separate mounting components. This makes it useful for machine builders and industrial automation installations.
The mounting arrangement allows free movement of the sensor in all directions before final tightening. This provides flexibility when aligning the sensor with the required detection position. The 12 mm diameter mounting rod arrangement provides stable mechanical support. The clamp design allows convenient adjustment during machine commissioning. This helps achieve accurate sensor positioning without complicated mounting procedures.
The fixture is manufactured from stainless steel 316Ti / 1.4571 for good mechanical durability. The clamp uses die-cast zinc for a strong and practical clamping structure. The complete assembly weighs approximately 104.3 g. Its 79 × 42 × 33 mm dimensions provide a compact mounting solution. The construction is designed for use in harsh industrial environments.
Complete mounting set
Designed for M30 position sensors
Clamp mounting
12 mm diameter mounting rod
Free sensor movement for positioning
Stainless-steel fixture
Die-cast zinc clamp
Robust industrial construction
Compact mounting assembly
M30 position sensor mounting
Industrial automation
Machine-building applications
Factory automation
Sensor positioning systems
Production machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21177 |
| Product Type | Mounting set for position sensors |
| Order Code | E21177 |
| Product Name | SYSTEM COMPONENT M30 ROD |
| Compatible Sensor Type | M30 position sensors |
| Mounting Type | Clamp mounting |
| Mounting Rod Diameter | 12 mm |
| Dimensions | 79 × 42 × 33 mm |
| Fixture Material | Stainless steel 316Ti / 1.4571 |
| Clamp Material | Die-cast zinc |
| Sensor Positioning | Free movement in all directions |
| Application | Industrial sensor mounting |
| Industrial Suitability | Harsh industrial environments |
| Weight | Approx. 104.3 g |
| Design | Complete mounting set |
| Adjustment | Flexible sensor positioning |
| Pack Quantity | 1 piece |
