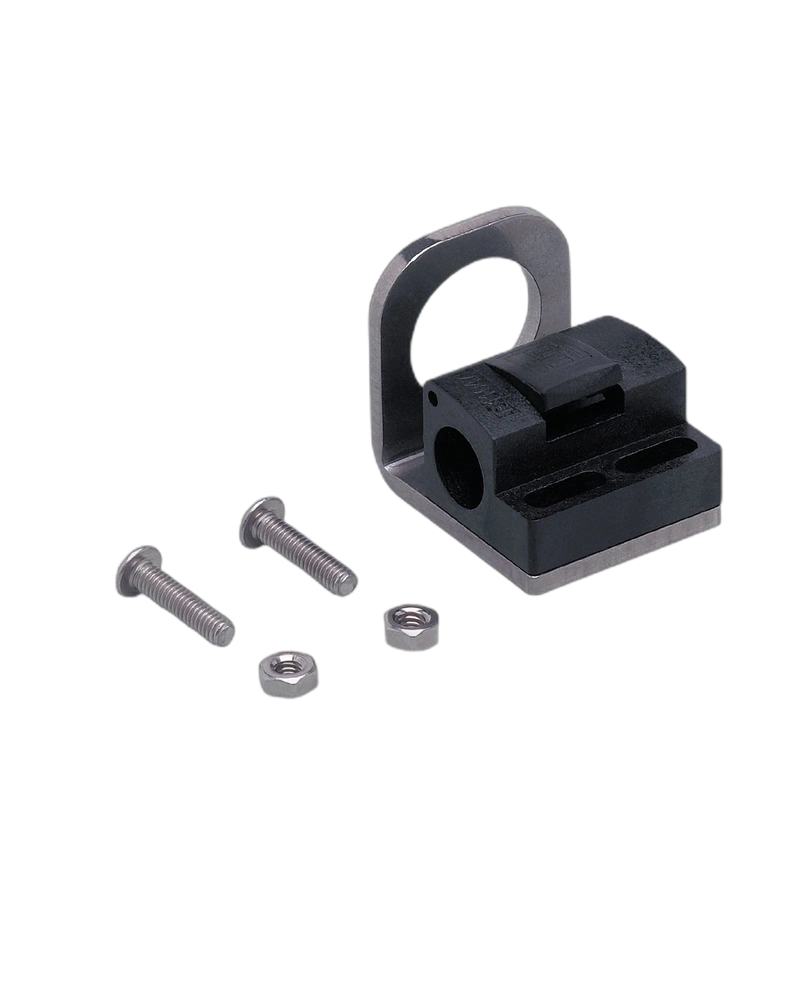

The IFM E21144 is an angle bracket with mounting clamp designed for secure installation of compatible cylindrical sensors and automation components. It features a clamp mounting arrangement with an end stop for convenient positioning. The fixture is manufactured from stainless steel 304, while the clamp uses black PC material. Its compact and robust construction supports reliable industrial sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21144 provides a stable mounting arrangement for compatible cylindrical sensors. The integrated clamp and angle bracket help maintain sensor positioning during machine operation.
The mounting clamp is designed around a 12 mm diameter mounting arrangement. The integrated end stop helps simplify positioning and provides repeatable placement during installation.
The fixture uses stainless steel 304 for mechanical durability, while the mounting clamp uses black polycarbonate. This combination provides a practical balance between strength and lightweight construction.
Angle bracket design
M12 mounting clamp
12 mm internal diameter
Integrated end stop
Stainless steel 304 fixture
Black PC mounting clamp
Compact construction
Suitable for cylindrical sensor mounting
Cylindrical sensor mounting
Industrial automation machines
Photoelectric sensor installations
Machine-building applications
Factory automation systems
Sensor positioning assemblies
| Specification | Details |
|---|---|
| Product Code | E21144 |
| Product Type | Angle bracket with mounting clamp |
| Model | MOUNTING BRACKET+CLAMP M12 |
| Mounting Design | Clamp mounting with end stop |
| Internal Diameter | 12 mm |
| Fixture Material | Stainless steel 304 / 1.4301 |
| Clamp Material | PC, black |
| Weight | 59 g |
| Pack Quantity | 1 piece |
| Application | Cylindrical sensor mounting |
| Mounting Type | Clamp mounting |
