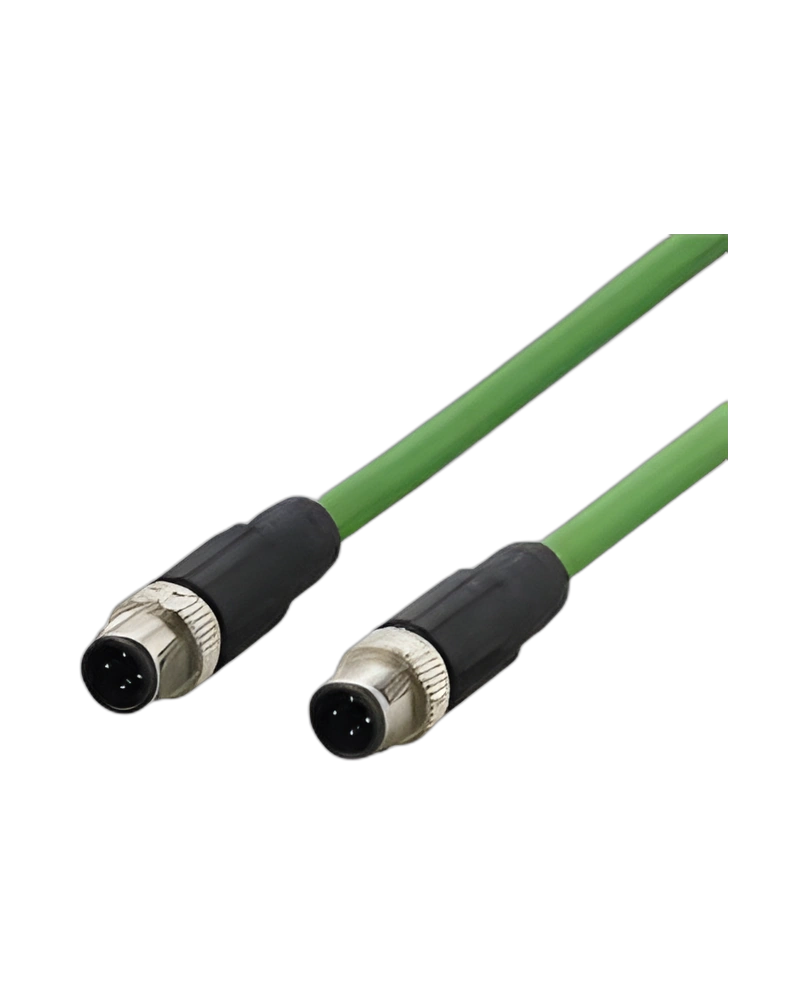

The IFM E21138 is a 2 m industrial Ethernet connection cable designed for reliable sensor communication and factory automation applications. It features a D-coded straight M12 connector with four gold-plated contacts and a shielded PROFINET cable. The robust TPU and nickel-plated die-cast zinc construction provides dependable mechanical performance. IP65 and IP67 protection ratings make it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21138 provides a reliable connection between compatible sensors and industrial Ethernet systems. It is designed for applications requiring stable signal transmission and dependable network connectivity.
The cable uses a shielded 4 × 0.34 mm² construction with a 6.5 mm diameter. Shielding helps support reliable signal integrity in industrial environments where electrical interference may be present.
The D-coded M12 connector features gold-plated contacts for dependable electrical connection. The connector body is made from black TPU, while the locking mechanism uses nickel-plated die-cast zinc.
2 m Ethernet connection cable
D-coded M12 connector
Four gold-plated contacts
Shielded PROFINET cable
IP65 / IP67 protection
-25 to 70°C operating temperature
TPU connector body
Nickel-plated die-cast zinc locking
Factory automation
Industrial Ethernet networks
PROFINET communication
Sensor connectivity
Machine automation
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | E21138 |
| Product Type | Ethernet connection cable |
| Model | VSTGN040ZDS0002L04STGN040ZDS |
| Cable Length | 2 m |
| Cable Type | PROFINET / Ethernet |
| Connector | 1 × M12 |
| Coding | D-coded |
| Connector Design | Straight |
| Contacts | 4, gold-plated |
| Cable | PVC, shielded |
| Cable Colour | Green |
| Cable Diameter | 6.5 mm |
| Conductor | 4 × 0.34 mm² |
| Operating Voltage | 48 V AC / 60 V DC |
| Operating Temperature | -25 to 70°C |
| Protection Rating | IP65 / IP67 |
| Connector Housing | TPU, black |
| Locking | Nickel-plated die-cast zinc |
| Tightening Torque | 0.4 Nm |
| Weight | 163.6 g |
| Pack Quantity | 1 piece |
