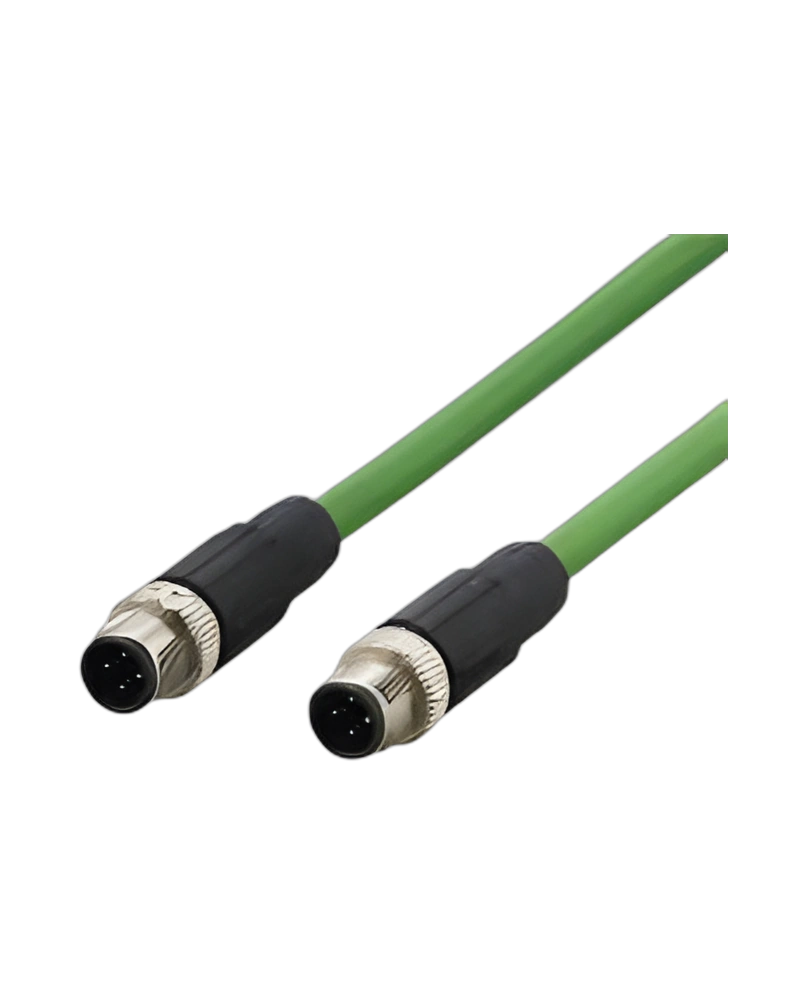

The IFM E21137 is a 10 m industrial Ethernet connection cable designed for reliable communication between sensors and automation systems. It features a D-coded M12 connector with gold-plated contacts and a shielded cable construction. The cable is designed for industrial applications and factory automation environments. Its robust construction supports dependable signal transmission in demanding operating conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E21137 is designed for reliable Ethernet communication and connection to sensor parameter-setting interfaces. The shielded cable helps reduce the influence of electromagnetic interference and supports stable signal transmission.
The cable uses a straight D-coded M12 connector with gold-plated contacts. The connector housing uses TPU and the locking mechanism uses nickel-plated die-cast zinc, providing a robust connection suitable for industrial installations.
The 10 m cable length provides additional flexibility when connecting sensors located away from control cabinets or network equipment. This helps simplify machine wiring and enables convenient routing across industrial equipment.
10 m Ethernet connection cable
D-coded M12 connector
Gold-plated contacts
Shielded cable construction
Industrial Ethernet / PROFINET applications
TPU connector housing
Nickel-plated die-cast zinc locking mechanism
High protection rating for industrial environments
Industrial Ethernet networking
Factory automation
Sensor communication
Machine automation
PROFINET installations
Industrial control panels and equipment
| Specification | Details |
|---|---|
| Product Code | E21137 |
| Product Type | Ethernet connection cable |
| Model | VSTGN040ZDS0010L04STGN040ZDS |
| Cable Length | 10 m |
| Cable Type | Ethernet / PROFINET |
| Connector | 1 × M12 |
| Connector Coding | D-coded |
| Connector Design | Straight |
| Contacts | Gold-plated |
| Cable | Shielded |
| Cable Colour | Green |
| Cable Diameter | Approx. 6.5 mm |
| Conductor | 4 × 0.34 mm² |
| Operating Temperature | -25 to 70°C |
| Protection Rating | IP65 / IP67 |
| Operating Voltage | 48 V AC / 60 V DC |
| Connector Housing | TPU |
| Locking Mechanism | Nickel-plated die-cast zinc |
| Pack Quantity | 1 piece |
